E1500 K1 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1171001 - E1500-1191630) FLYWHEEL Parts Diagram

Generator, Made in Japan

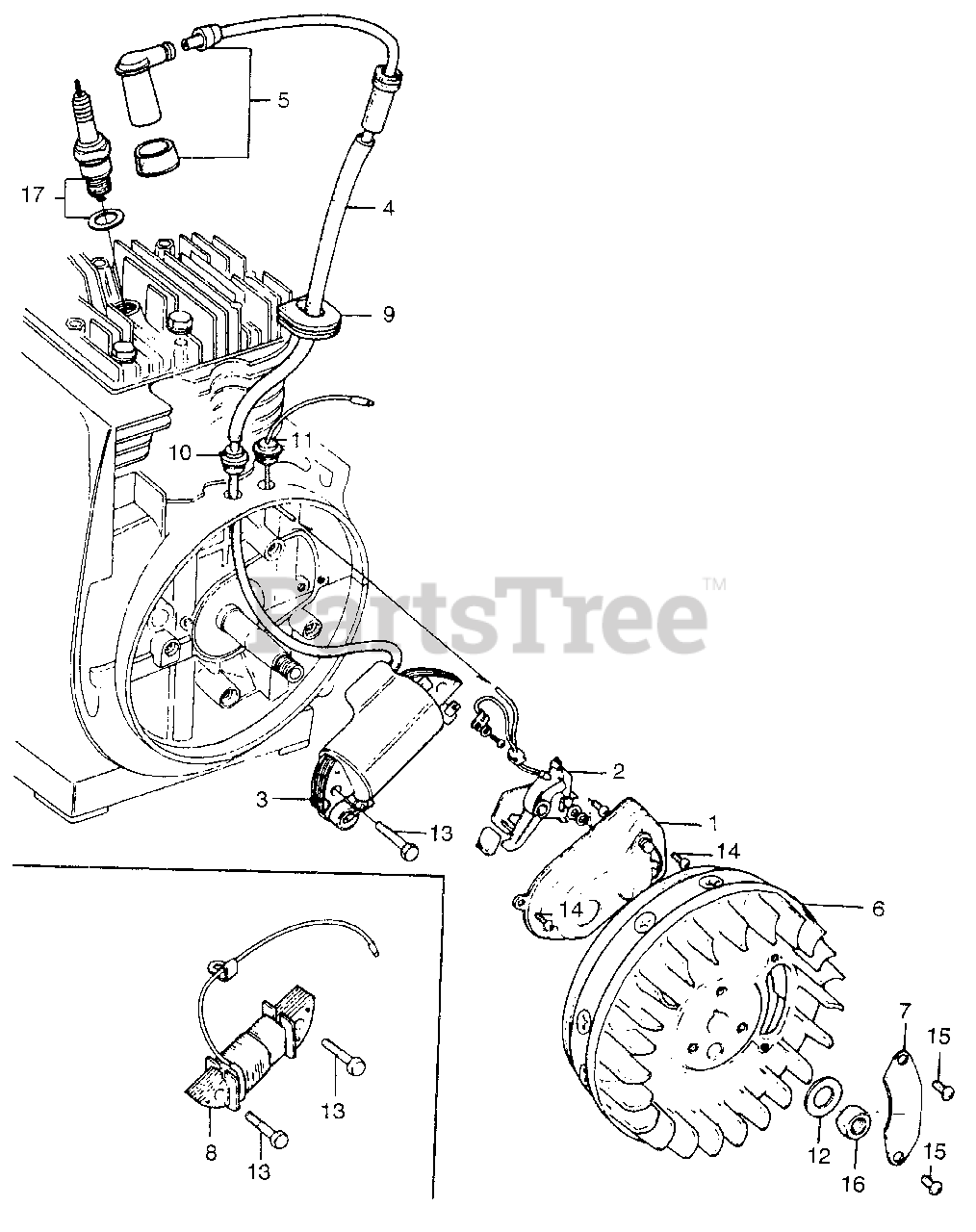

FLYWHEEL Parts Diagram

  • Title

1

Honda 30210-822-010

COVER, POINTS (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 30280-815-024

POINTS ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 1102765.

$37.99

$

Usually ships in 3-6 days

0

3

Honda 30560-823-000

COIL, IGNITION (NOT AVAILABLE)

Note: Use from Engine SN 1102765.

$

$

Currently unavailable

4

Honda 30565-865-650

TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

5

Honda 30600-815-030

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

$

$

Not available

6

Honda 31121-822-651

FLYWHEEL

$

$

Not available

7

Honda 31125-822-000

COVER, FLYWHEEL WINDOW (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31521-815-169

COIL, EXCITER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 19905-ZA8-701

GROMMET, CORD

$4.99

$

Usually ships in 3-6 days

0

10

Honda 32951-705-000

GROMMET, WIRE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 36152-805-640

GROMMET, WIRE

$

$

Not available

12

Honda 90408-822-010

WASHER (14MM) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 92101-06028-0A

BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

15

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

16

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK)

$

$

Not available

17

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK)

$3.49

$

Usually ships in 3-6 days

0
