E1500 K1 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1171001 - E1500-1191630) CARBURETOR K1-K3 Parts Diagram

Generator, Made in Japan

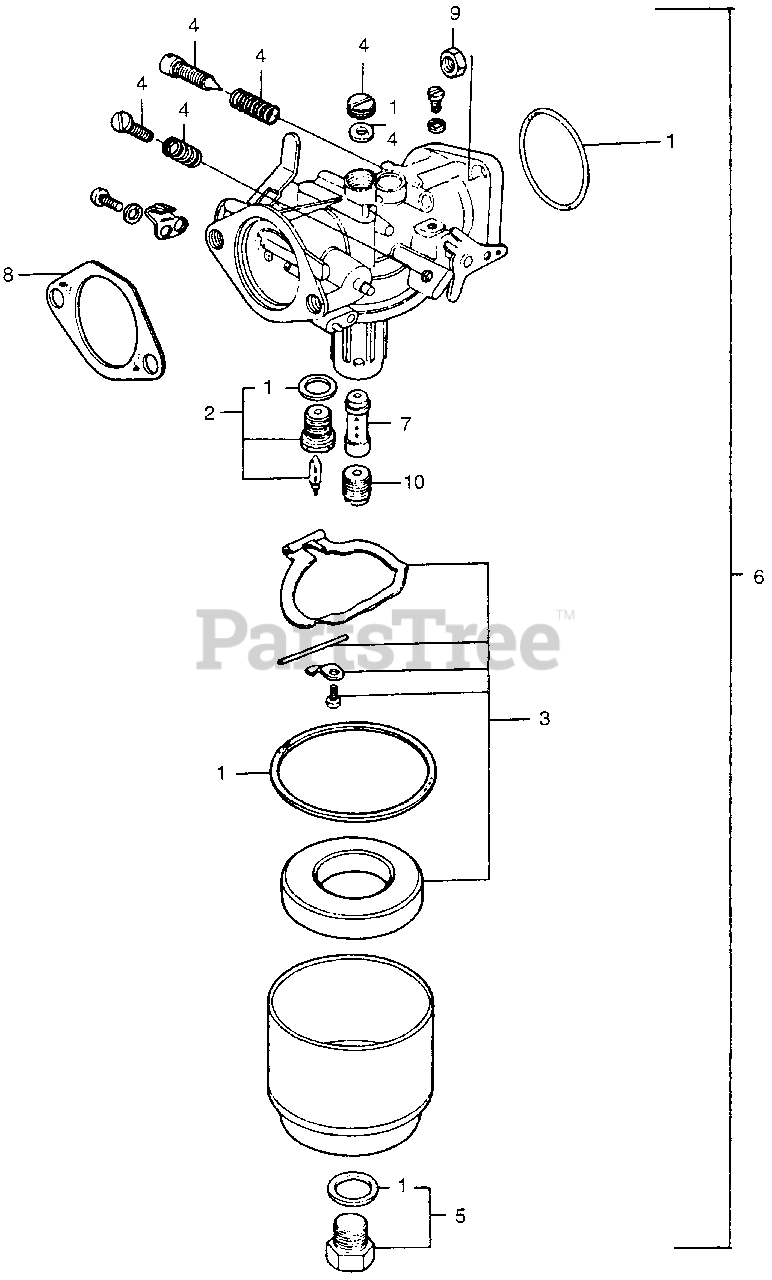

CARBURETOR K1-K3 Parts Diagram

  • Title

1

Honda 16010-848-505

GASKET SET

$

$

Not available

2

Honda 16011-865-014

VALVE SET, FLOAT
(Superseded to 16011-866-004)

$22.99

$

Usually ships in 3-6 days

0

2

Honda 16011-866-004

VALVE SET, FLOAT

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16013-124-014

FLOAT SET (NOT AVAILABLE)

$

$

Not available

4

Honda 16016-848-004

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16028-848-004

SCREW SET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16100-865-630

CARBURETOR ASSY. (N/A: SEE COMPONENTS)

$

$

Currently unavailable

7

Honda 16166-865-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16269-822-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

9

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

10

Honda 99114-077-0720

JET, MAIN (#72) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 99114-077-0750

JET, MAIN (#75) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 99114-077-0780

JET, MAIN (#78)

$

$

Not available

10

Honda 99114-077-0800

JET, MAIN (#80) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 99114-077-0820

JET, MAIN (#82) (NOT AVAILABLE)

$

$

Not available
