E1500 A (E1500) - Honda Generator, Made in Japan (SN: E1500-0123001 - E1500-1171000) E1500 CARBURETOR Parts Diagram

Generator, Made in Japan

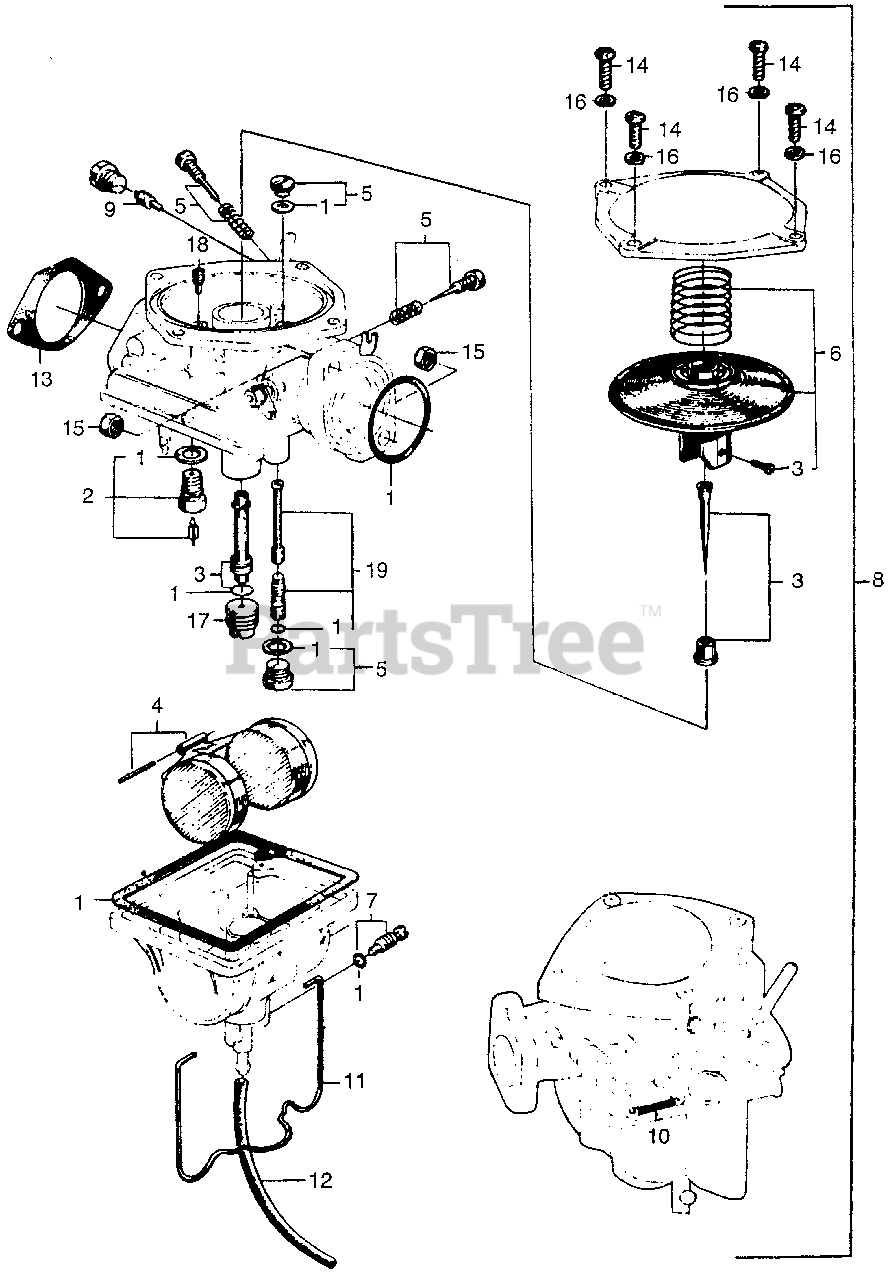

E1500 CARBURETOR Parts Diagram

  • Title

1

Honda 16010-822-004

GASKET SET

$

$

Not available

2

Honda 16011-816-004

VALVE SET, FLOAT (NOT AVAILABLE)

$

$

Not available

3

Honda 16012-822-004

NEEDLE SET, JET

$

$

Not available

4

Honda 16013-822-004

FLOAT SET (NOT AVAILABLE)

$

$

Not available

5

Honda 16016-707-004

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16022-822-601

VALVE SET, THROTTLE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16024-707-004

SCREW SET, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16100-822-680

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16169-822-014

SCREW, PILOT STOP

$

$

Not available

10

Honda 16183-822-004

SPRING, PISTON

$

$

Not available

11

Honda 16187-822-004

CLIP, FLOAT CHAMBER

$

$

Not available

12

Honda 16235-805-000

PIPE, OVERFLOW

$

$

Currently unavailable

12

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X150)

$31.99

$

In Stock, only 1 left!

0

13

Honda 16269-822-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 93500-05012-0B

SCREW, PAN (5X12)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

16

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 99114-822-0680

JET, MAIN (#68) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 99114-822-0700

JET, MAIN (#70) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 99114-822-0720

JET, MAIN (#72) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 99114-822-0750

JET, MAIN (#75)

$

$

Not available

17

Honda 99114-822-0780

JET, MAIN (#78) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 99114-822-0800

JET, MAIN (#80)

$

$

Not available

17

Honda 99114-822-0820

JET, MAIN (#82) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 99114-822-0850

JET, MAIN (#85)

$

$

Not available

18

Honda 99134-548-0700

JET, AIR

$

$

Not available

19

Honda 99204-822-0450

JET SET, PILOT (#45) (NOT AVAILABLE)

$

$

Currently unavailable
