E1500 A (E1500) - Honda Generator, Made in Japan (SN: E1500-0123001 - E1500-1171000) CRANKSHAFT + PISTON Parts Diagram

Generator, Made in Japan

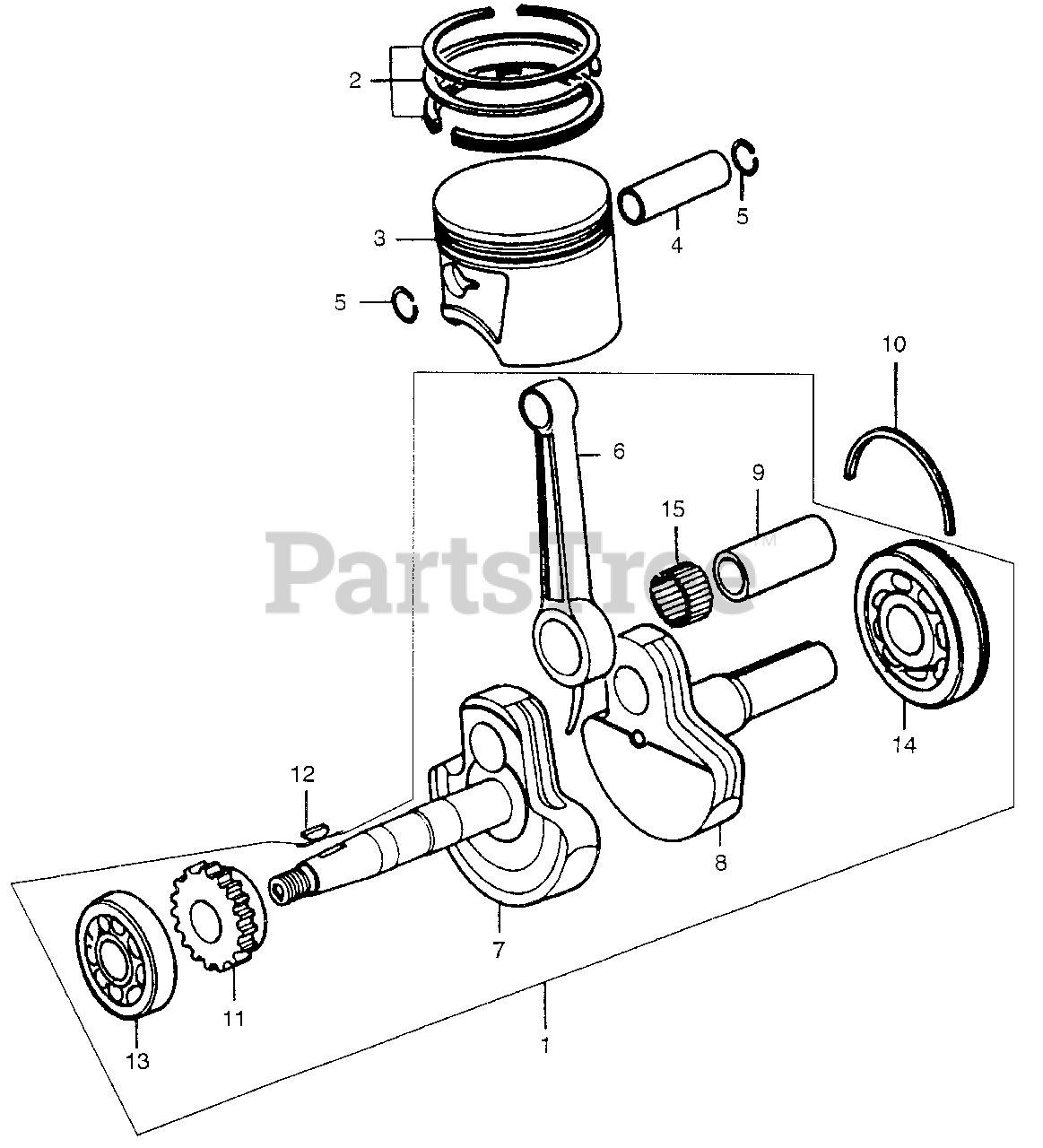

CRANKSHAFT + PISTON Parts Diagram

  • Title

2

Honda 13011-805-000

RING SET, PISTON (STD)

$

$

Not available

2

Honda 13021-805-000

RING SET, PISTON (OVER SIZE) (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13031-805-000

RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 13041-805-000

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 13101-822-000

PISTON (STD) (NOT AVAILABLE)

$44.99

$

Usually ships in 3-6 days

0

3

Honda 13102-822-000

PISTON (OVER SIZE) (0.25)

Note: (Optional).

$

$

Not available

3

Honda 13103-822-000

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

3

Honda 13104-822-000

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

4

Honda 13111-805-000

PIN, PISTON (NOT AVAILABLE)

$

$

Not available

5

Honda 94601-18000

CLIP, PISTON PIN (18MM)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 13491-701-000

RING, BALL BEARING SET (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 14311-822-000

GEAR, TIMING

$

$

Not available

12

Honda 90743-822-010

KEY, WOODRUFF (NOT AVAILABLE)

$

$

Not available

13

Honda 91001-822-000

BEARING, BALL (6304S) (NOT AVAILABLE)

$

$

Not available

14

Honda 91002-805-000

BEARING, RADIAL BALL (6206SHS) (NOT AVAILABLE)

$

$

Not available
