E1500 A (E1500) - Honda Generator, Made in Japan (SN: E1500-0123001 - E1500-1171000) CAMSHAFT + OIL PAN Parts Diagram

Generator, Made in Japan

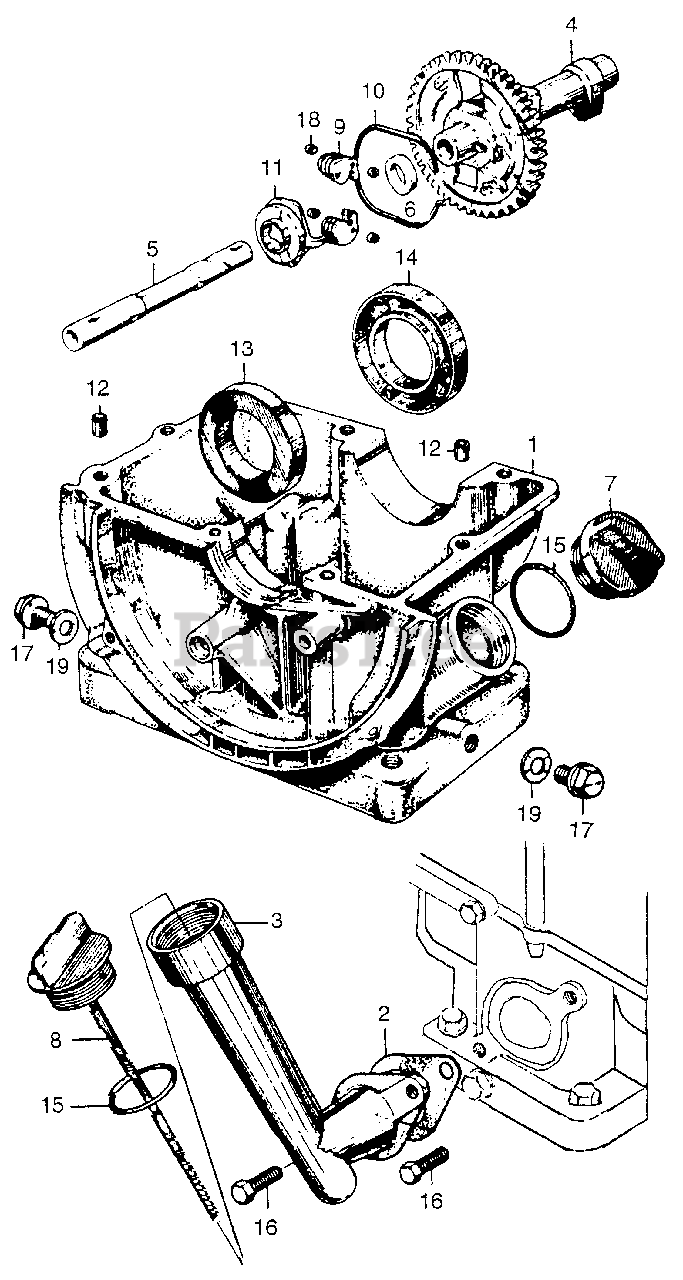

CAMSHAFT + OIL PAN Parts Diagram

  • Title

1

Honda 11200-822-010

PAN, OIL

$

$

Not available

2

Honda 11211-822-000

GASKET, OIL PAN HOLE COVER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 11220-815-000

PIPE, OIL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 14101-865-010

CAMSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 14210-822-020

CENTER, CAMSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 14213-822-000

COLLAR, CAMSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 15611-921-000

CAP, OIL (YELLOW)

$13.99

$

Usually ships in 3-6 days

0

8

Honda 15620-815-000

CAP, OIL (NOT AVAILABLE)

$18.99

$

Usually ships in 3-6 days

0

9

Honda 16511-805-000

WEIGHT, GOVERNOR

$

$

Not available

10

Honda 16515-805-000

CENTER, GOVERNOR WEIGHT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16521-822-010

SLIDER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 90701-200-000

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 91201-822-003

OIL SEAL (PJ20528)

$18.99

$

Usually ships in 3-6 days

0

14

Honda 91204-805-003

OIL SEAL (30X65X10) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

17

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

18

Honda 94101-03000

WASHER, PLAIN (3MM)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0
