E1-18OE01 (518-HE) - Toro Garden Tractor (1988) THROTTLE, CHOKE AND FUEL CONTROLS Parts Diagram

Garden Tractor

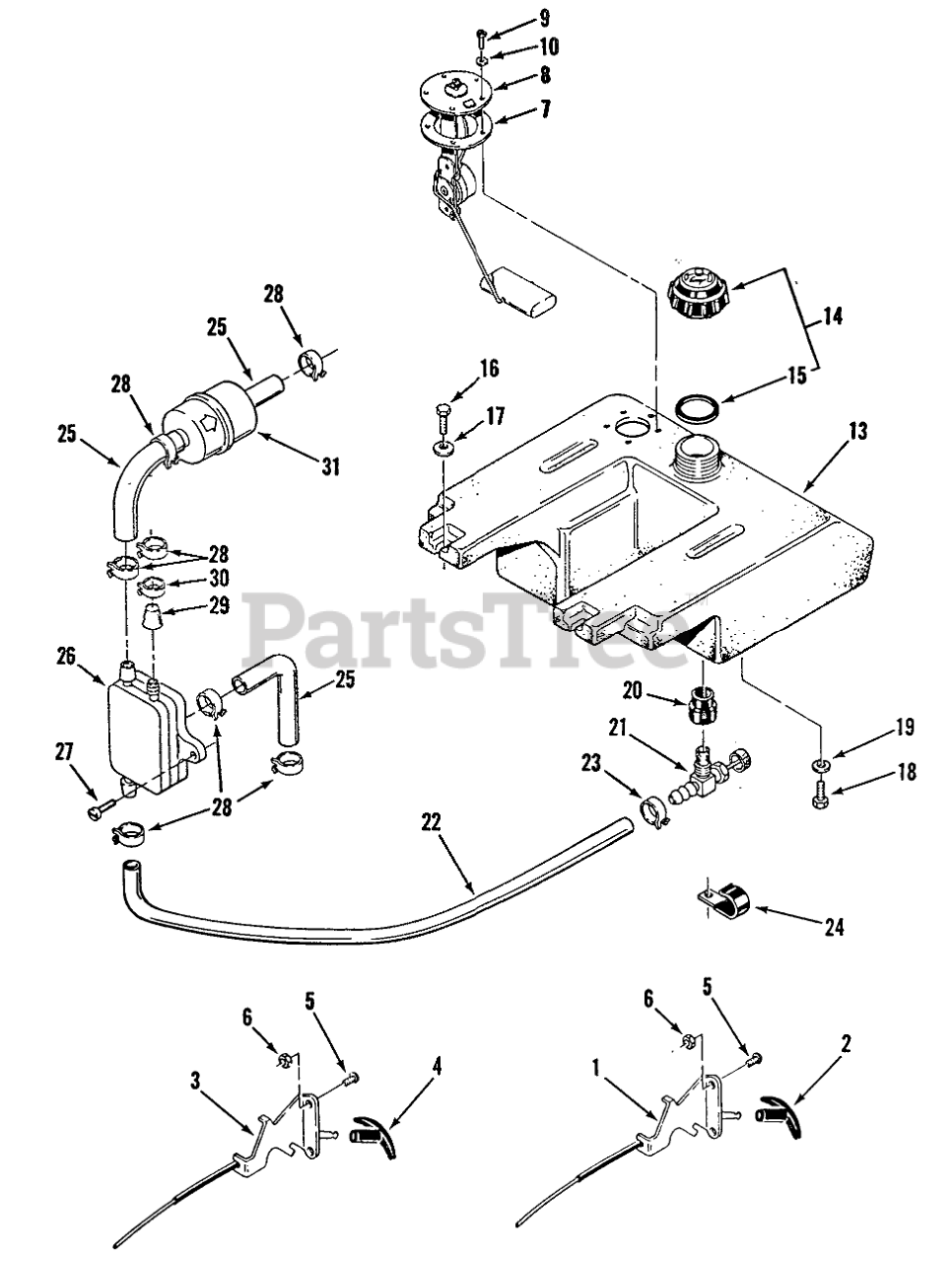

THROTTLE, CHOKE AND FUEL CONTROLS Parts Diagram

  • Title
1

Toro 114026

Throttle Control
(Superseded to 115392)

$112.99

$

In Stock, only 3 left!

0

2

Toro 108509

KNOB-THROTTLE

$7.49

$

In Stock, only 3 left!

0

3

Toro 114027

CONTROL-CHOKE

$

$

Not available

4

Toro 108510

KNOB-CHOKE

$10.99

$

In Stock, Qty 8

0

5

Toro 9107922

SCRW-PHC

$10.99

$

Usually ships in 3-6 days

0

6

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

7

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

8

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

9

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

13

Toro 114012

Fuel Tank (includes items 20 & 21)

$

$

Not available

14

Toro 113926

Fuel Cap (includes item 15)

$

$

Not available

15

Toro 106931

GASKET-GAS CAP

$

$

Not available

16

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

19

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, Qty 9

0

22

Toro 2739

Line-Fuel 53"
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

24

Toro 950154

Clamp

$

$

Not available

Toro 105490

CLAMP

$

$

Not available

25

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

26

Toro NN10212

Fuel Pump
(Superseded to 57-9080)

$

$

Not available

27

Toro NN10403

Screw
(Superseded to 59-1050)

$

$

Not available

28

Toro NN10303

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

29

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

30

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

31

Toro NN10213

X-REF 71-5960
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 6

0
