E1-18OE01 (518-HE) - Toro Garden Tractor (1988) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

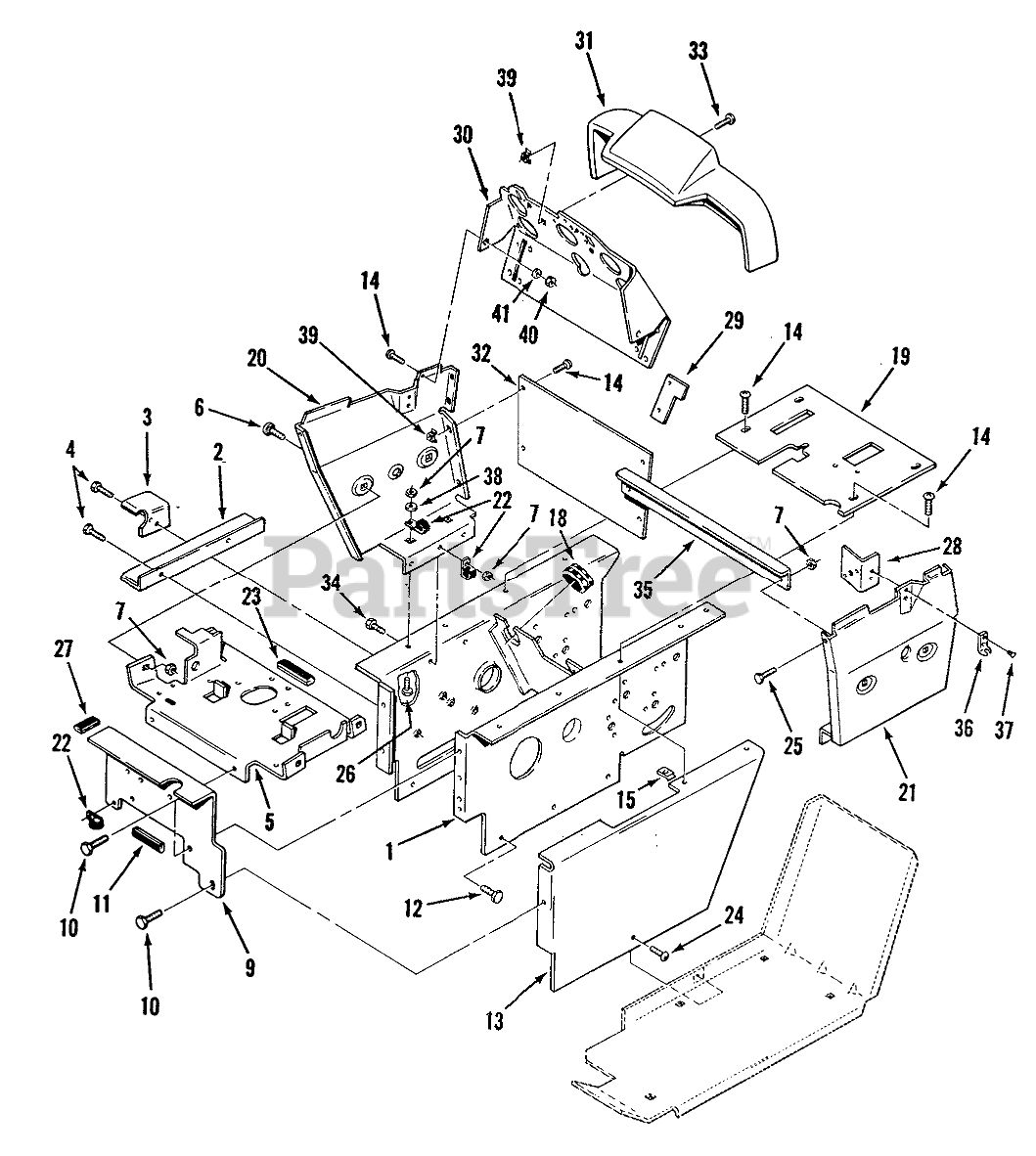

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 113937

Hoodstand
(Superseded to 79-5120-03)

$

$

Not available

2

Toro 114871

ANGLE-BELT GUARD B

$

$

Not available

3

Toro 108537

BRCKET-BLT SUTB

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 113944

SUPPORT-BATTERY B

$

$

Not available

6

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

7

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 113938

PLATE-FRT HOODSTA B

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

12

Toro 926694

SCREW

$

$

Not available

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

13

Toro 113936

COVER-L.H. R

$

$

Not available

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 113447

Shift Cover Plate 520-H
(Superseded to 116705)

$

$

Not available

20

Toro 113962

Panel-RH
(Superseded to 113962-03)

$96.99

$

In Stock, only 1 left!

0

21

Toro 113963

PANEL-SIDE LS B
(Superseded to 79-4890-03)

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

26

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

27

Toro 106722

DECAL-TACHAMATIC

$

$

Not available

28

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

29

Toro 114641

STOP-CHOKE

$

$

Not available

30

Toro 114576

PANEL ASSY OB

$

$

Not available

31

Toro 113946

COVER-CONSOLE(3-G)

$

$

Not available

32

Toro 113939

PLATE-HOODSTAND B

$

$

Not available

33

Toro 9108392

SCREW 1/4-20X.87

$

$

Not available

34

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

35

Toro 113932

STIFFENER-PANEL B

$

$

Not available

36

Toro 109237

Latch Keeper (included in 106825 Hood Latch)
(Superseded to 117343)

$4.99

$

In Stock, only 2 left!

0

37

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

38

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 114207

Nut 1/4-20
(Superseded to 32115-5)

$7.49

$

Usually ships in 3-6 days

0

40

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

41

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+
