E1-12K802 (312-8) - Toro Garden Tractor (1989) ONAN GEARCASE AND IGNITION CONTROLS Parts Diagram

Garden Tractor

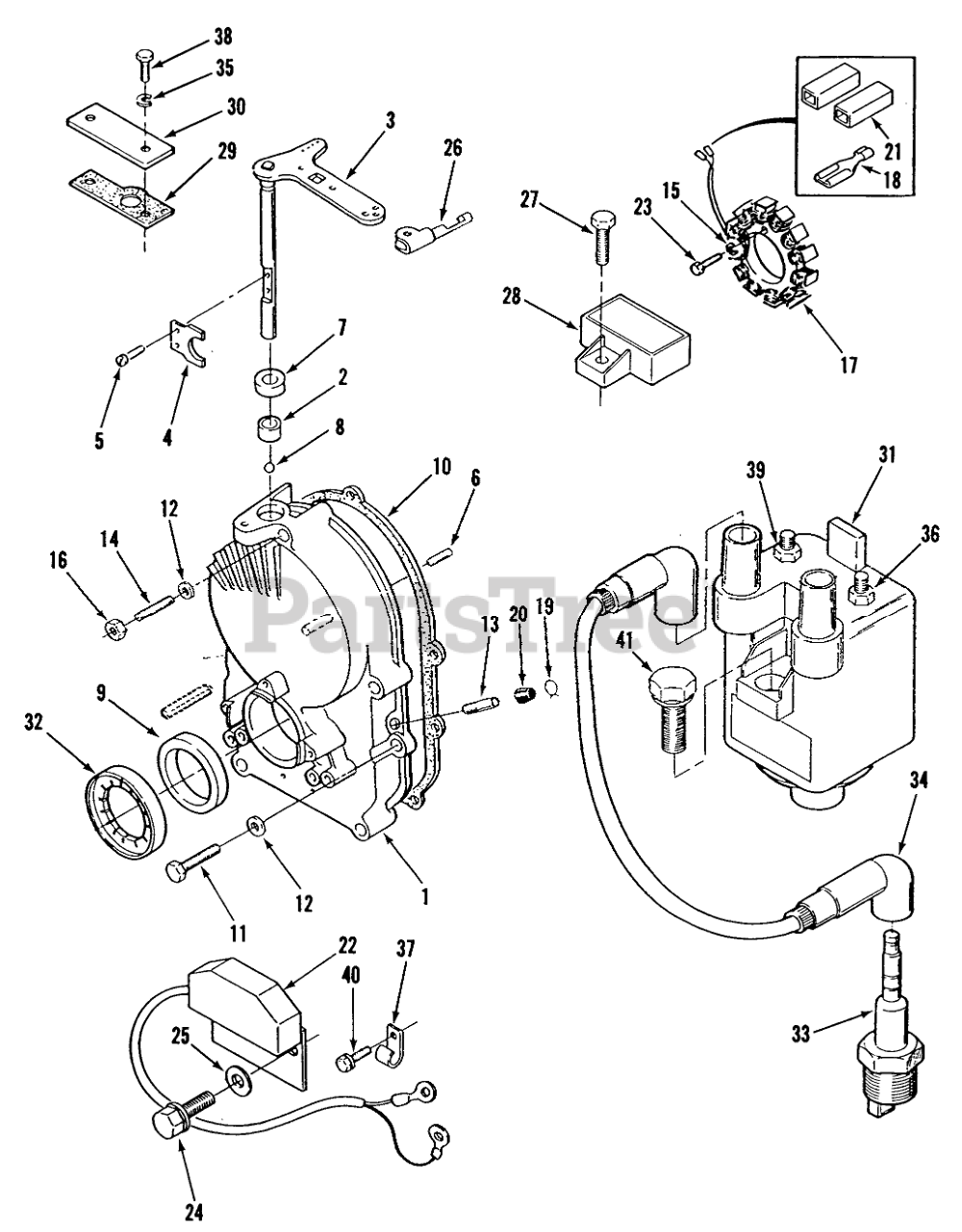

ONAN GEARCASE AND IGNITION CONTROLS Parts Diagram

  • Title

1

Toro 103-0791

Gearcase Kit (Includes Items 2 thru 9, 13, 19 & 20)
(Superseded to 109-6561)

$144.99

$

Usually ships in 3-6 days

0

2

Toro 510-0105

Bearing, Governor Shaft

$

$

Currently unavailable

3

Toro 150-1470-01

Governor Shaft and Arm-Chromed

$

$

Currently unavailable

4

Toro 150-1187

Yoke, Governor Shaft

$

$

Currently unavailable

5

Toro 815-0046

Screw, Machine-Pan Hd.

$

$

Currently unavailable

6

Toro 516-0130

Pin, Dowel-Governor Cup Stop

$

$

Currently unavailable

7

Toro 509-0008

Seal, Oil-Governor Shaft

$

$

Currently unavailable

8

Toro 510-0014

Ball, Bearing-Governor Shaft

$

$

Currently unavailable

9

Toro 509-0040

Seal, Oil-Crankshaft

$

$

Currently unavailable

10

Toro 103-0408

Gasket, Gearcase Mounting

$

$

Currently unavailable

11

Toro 114-0022

Hex Hd. Cap Screw 5/16-18 x 1-3/4

$

$

Currently unavailable

12

Toro 526-0065

Washer, Flat Copper

$

$

Currently unavailable

13

Toro 149-1299

Tube, Vacuum Port

$

$

Currently unavailable

14

Toro 520-0933

Stud, Gear Cover-Top Hole

$

$

Currently unavailable

15

Toro 850-0030

Washer-Lock

$

$

Currently unavailable

16

Toro 862-0015

Nut 5/6-18

$

$

Currently unavailable

17

Toro 191-1256

Stator (Incl. Ref. #15 & 20)

$

$

Currently unavailable

18

Toro 332-2423

Terminal, Stator Leads

$

$

Currently unavailable

19

Toro 503-0301

Clamp, Hose

$

$

Currently unavailable

20

Toro 149-1321

Cap, Fuel Outlet

$

$

Currently unavailable

21

Toro 323-1257

Terminal Connector Body Kit (Includes Terminals)

$

$

Currently unavailable

22

Toro 166-0785

Ignition Control

$

$

Currently unavailable

23

Toro 815-0172

Self-Lock Hex Hd. Mach. Screw No. 10-32x1

$

$

Currently unavailable

24

Toro 815-0340

Hex Washer Hd. Screw No. 10-32 x 3/8

$

$

Currently unavailable

25

Toro 854-0010

Washer, Lock Internal Tooth

$

$

Currently unavailable

26

Toro 518-0406

Clip, Retaining-Control Rod

$

$

Currently unavailable

27

Toro 821-0008

Screw, Cup Hex Washer Hd.

$

$

Currently unavailable

28

Toro 191-1748

Voltage Regulator-20 amp

$

$

Currently unavailable

29

Toro 160-1150

Gasket, Breaker Box

$

$

Currently unavailable

30

Toro 160-1345-01

Ignition Plunger Cover

$

$

Currently unavailable

31

Toro 166-0761

Battery Ignition Coil w/Nuts

$

$

Currently unavailable

32

Toro 166-0767

Ignition Rotor

$

$

Currently unavailable

33

Toro 167-0263

Plug, Spark

$

$

Currently unavailable

34

Toro 167-1615-01

Spark Plug Cable-9" Long

$

$

Currently unavailable

Toro 167-1615-04

Spark Plug Cable-18.5" Long

$

$

Currently unavailable

35

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

36

Toro 166-0770

Hex Flange Nut

$

$

Currently unavailable

37

Toro 518-0515

Wire Clip

$

$

Currently unavailable

38

Toro 800-0004

Hex Hd. Cap Screw 1/4-20 x 5/8

$

$

Currently unavailable

39

Toro 166-0771

Hex Flange Nut

$

$

Currently unavailable

40

Toro 815-0389

Hex Washer Hd. Screw 1/4-20 x 1

$

$

Currently unavailable

41

Toro 815-0650

Hex Washer Hd. Screw 1/4-20 x 1

$

$

Currently unavailable
