E1-12K802 (312-8) - Toro Garden Tractor (1989) ONAN ENGINE CYLINDER BLOCK Parts Diagram

Garden Tractor

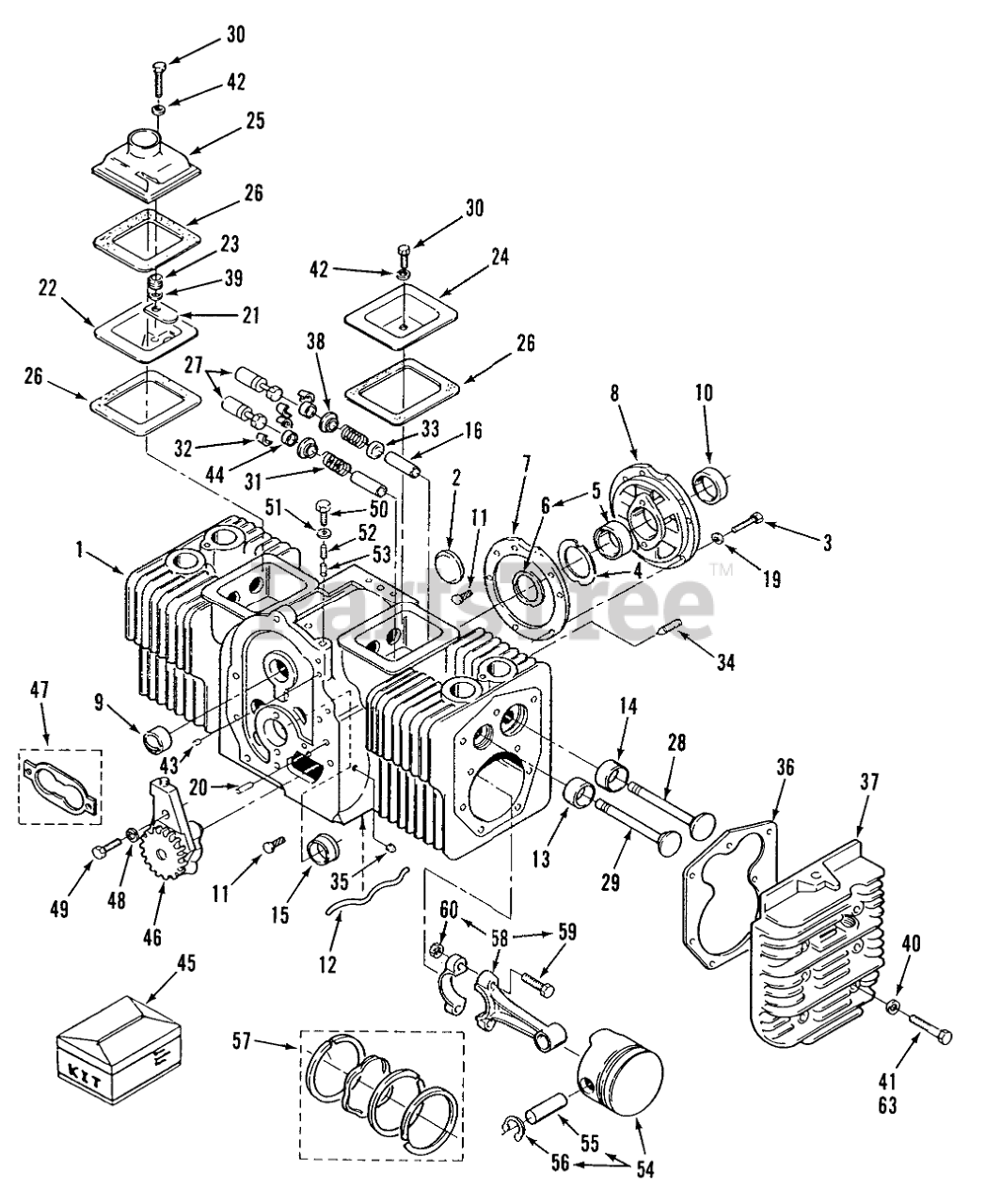

ONAN ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro 110-3419-01

Short Block

$

$

Currently unavailable

2

Toro 517-0048-01

Plug

$

$

Currently unavailable

3

Toro 800-0051

Screw Cap-Hex Hd.

$

$

Currently unavailable

4

Toro 104-0776

Shim, Crankshaft End Play (.005)

$

$

Currently unavailable

5

Toro 101-0450

Bearing, Crankshaft Rear Standard (Incl. Ref. #15)

$

$

Currently unavailable

Toro 101-0450-02

Bearing, Crankshaft Rear .002 Undersize (Incl. Ref. #15)

$

$

Currently unavailable

Toro 101-0450-10

Bearing, Crankshaft Rear .010 Undersize (Incl. Ref. #15)

$

$

Currently unavailable

Toro 101-0450-20

Bearing, Crankshaft Rear .020 Undersize (Incl. Ref. #15)

$

$

Currently unavailable

Toro 101-0450-30

Bearing, Crankshaft Rear .030 Undersize (Incl. Ref. #15)

$

$

Currently unavailable

6

Toro 104-0575

Washer-Thrust

$

$

Not available

7

Toro 101-0415

Gasket, Bearing Plate

$

$

Currently unavailable

8

Toro 101-0439-01

Bearing Plate

$

$

Currently unavailable

9

Toro 101-0405

Bearing, Camshaft

$

$

Currently unavailable

10

Toro 509-0041

Seal, Oil-Crankshaft Rear

$

$

Currently unavailable

11

Toro 516-0072

Pin, Drive-Bearing stop

$

$

Currently unavailable

12

Toro 120-0735

Tube, Oil-Cylinder Block

$

$

Currently unavailable

13

Toro 110-1824

GAS-LINE

$

$

Not available

Toro 110-1824-02

Insert, Valve Seat-Exhaust (.002 Oversize)

$

$

Currently unavailable

Toro 110-1824-05

Insert, Valve Seat-Exhaust (.005 Oversize)

$

$

Currently unavailable

Toro 110-1824-10

Insert, Valve Seat-Exhaust(.010 Oversize)

$

$

Currently unavailable

Toro 110-1824-25

Insert, Valve Seat-Exhaust (.025 Oversize)

$

$

Currently unavailable

14

Toro 110-0197

Insert, Valve Seat-Intake (Standard)

$

$

Currently unavailable

Toro 110-0197-02

Insert, Valve Seat-Intake (.002 Oversize)

$

$

Currently unavailable

Toro 110-0197-05

Insert, Valve Seat-Intake (.005 Oversize)

$

$

Currently unavailable

Toro 110-0197-10

Insert, Valve Seat-Intake(.010 Oversize)

$

$

Currently unavailable

Toro 110-0197-25

Insert, Valve Seat-Intake (.025 Oversize)

$

$

Currently unavailable

15

Toro 101-0432

Bearing, Crankshaft-Front(Flanged) Standard

$

$

Currently unavailable

Toro 101-0432-02

Bearing, Crankshaft-Front (Flanged .002 Undersize

$

$

Currently unavailable

Toro 101-0432-10

Bearing, Crankshaft-Front(Flanged) .010 Undersize

$

$

Currently unavailable

Toro 101-0432-20

Bearing, Crankshaft-Front(Flanged) .020 Undersize

$

$

Currently unavailable

Toro 101-0432-30

Bearing, Crankshaft-Front(Flanged) .030 Undersize

$

$

Currently unavailable

16

Toro 110-3527

Exhaust Valve Guide

$

$

Currently unavailable

Toro 110-3526

Intake Valve Guide

$

$

Currently unavailable

19

Toro 850-0050

Washer, Lock-Spring

$

$

Currently unavailable

20

Toro 516-0141

Pin, Gear Cover Alignment

$

$

Currently unavailable

21

Toro 123-1175

Reed-Breather Valve

$

$

Currently unavailable

22

Toro 123-1173

Baffle, Breather Valve

$

$

Currently unavailable

23

Toro 123-1174

Spring, Breather Valve

$

$

Currently unavailable

24

Toro 110-1879-01

RH Valve Cover

$

$

Currently unavailable

25

Toro 110-2274-01

LH Valve Cover

$

$

Currently unavailable

26

Toro 110-1921

Gasket, Valve Cover

$

$

Currently unavailable

27

Toro 115-0006

Tappet, Valve (Standard)

$

$

Currently unavailable

Toro 115-0006-02

Tappet, Valve (.002 Oversize)

$

$

Currently unavailable

Toro 115-0006-05

Tappet, Valve (.005 Oversize)

$

$

Currently unavailable

28

Toro 110-3479

Intake Valve

$

$

Currently unavailable

29

Toro 110-3480

Exhaust Valve

$

$

Currently unavailable

30

Toro 800-0010

Screw-Cap Hex Hd.

$

$

Currently unavailable

31

Toro 110-3485

Valve Spring

$

$

Currently unavailable

32

Toro 110-3511

Spring Lock

$

$

Currently unavailable

33

Toro 509-0210

Intake Valve Seal

$

$

Currently unavailable

34

Toro 803-0071

Screw 3/8-16 x 5/8

$

$

Currently unavailable

35

Toro 505-0057

Pipe Plug

$

$

Currently unavailable

36

Toro 110-3181

SPACER

$

$

Currently unavailable

37

Toro 110-3509

Right Cylinder Head

$

$

Currently unavailable

Toro 110-3508

Left Cylinder Head

$

$

Currently unavailable

38

Toro 110-3487

Retaining Washer

$

$

Currently unavailable

39

Toro 526-0018

Washer, Flat

$

$

Currently unavailable

40

Toro 526-0122

Washer, Flat

$

$

Currently unavailable

41

Toro 800-0471

Special Bolt 2" long

$

$

Currently unavailable

42

Toro 526-0063

Washer, Flat-Copper

$

$

Currently unavailable

43

Toro 517-0067

Plug, Core Hole

$

$

Currently unavailable

44

Toro 110-3510

NUT-RETAINER

$7.49

$

Usually ships in 3-6 days

0

45

Toro 168-0182

Complete Engine Gasket Kit

$

$

Currently unavailable

Toro 168-0183

Valve Grind/Carbon Removal

$

$

Currently unavailable

46

Toro 120-0491

Pump, Oil

$

$

Currently unavailable

47

Toro 120-0161

Gasket Kit, Oil Pump

$

$

Currently unavailable

48

Toro 650-0040

Spring Washer

$

$

Currently unavailable

49

Toro 800-0007

Screw, Cap-Hex Hd.

$

$

Currently unavailable

50

Toro 801-0049

Screw, Cap-Hex Head

$

$

Currently unavailable

51

Toro 526-0066

Washer, Flat

$

$

Currently unavailable

52

Toro 120-0140

Spring, By-Pass

$

$

Currently unavailable

53

Toro 120-0398

Plunger, Bypass Valve

$

$

Currently unavailable

54

Toro 112-0186

OIL PAN ASM

$

$

Currently unavailable

Toro 112-0186-05

Piston & Pin (.005 Oversize)(Incl. Ref. #15 & 16)

$

$

Currently unavailable

Toro 112-0186-10

Piston & Pin (.010 Oversize)(Incl. Ref. #15 & 16)

$

$

Currently unavailable

Toro 112-0186-20

Piston & Pin (.020 Oversize)(Incl. Ref. #15 & 16)

$

$

Currently unavailable

Toro 112-0166-30

Piston Pin and Retaining Rings-.030"

$

$

Currently unavailable

Toro 112-0186-40

Piston & Pin (.040 Oversize)(Incl. Ref. #15 & 16)

$

$

Currently unavailable

55

Toro 112-0229

BRAKE DRUM ASM

$

$

Currently unavailable

56

Toro 518-0311

Ring, Retaining

$

$

Currently unavailable

57

Toro 113-0189

Ring Set, Piston-Standard

$

$

Currently unavailable

Toro 113-0189-05

Ring Set, Piston (.005 Oversize)

$

$

Currently unavailable

Toro 113-0189-10

Ring Set, Piston (.010 Oversize)

$

$

Currently unavailable

Toro 113-0189-20

Ring Set, Piston (.020 Oversize)

$

$

Currently unavailable

Toro 113-0189-30

Ring Set, Piston (.030 Oversize)

$

$

Currently unavailable

Toro 113-0189-40

Ring Set, Piston (.040 Oversize)

$

$

Currently unavailable

58

Toro 114-0300

Rod w/Bolts and Nuts-STD

$

$

Currently unavailable

Toro 114-0300-10

Rod w/Bolts and Nuts-,010"

$

$

Currently unavailable

Toro 114-0300-20

Rod w/Bolts and Nuts-,020"

$

$

Currently unavailable

Toro 114-0300-30

Rod w/Bolts and Nuts-,030"

$

$

Currently unavailable

59

Toro 114-0240

Bolt, Special-Connecting Rod

$

$

Currently unavailable

60

Toro 870-0302

Nut, Hex-Crown Lock

$

$

Currently unavailable

63

Toro 800-0572

Special Bolt 2.375" Long

$

$

Currently unavailable
