E1-12K802 (312-8) - Toro Garden Tractor (1989) ONAN CARBURETOR COMPONENTS Parts Diagram

Garden Tractor

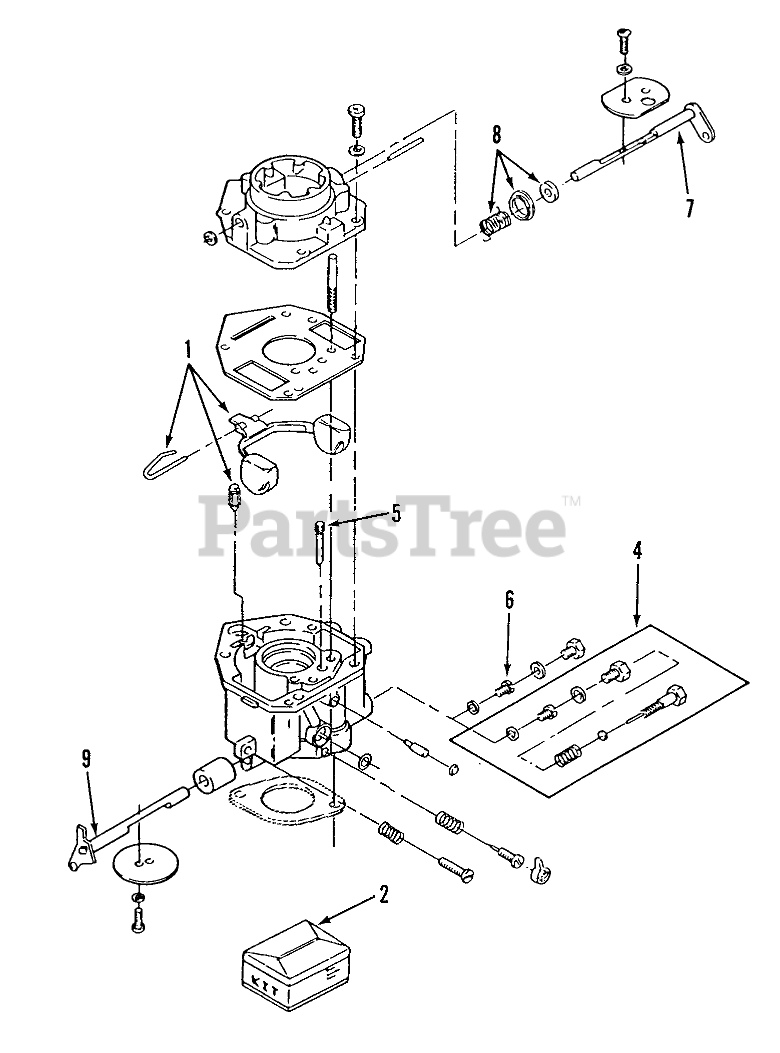

ONAN CARBURETOR COMPONENTS Parts Diagram

  • Title

1

Toro 146-0437

Float Kit (Includes Float, Pin and Valve)

$

$

Currently unavailable

2

Toro 146-0432

Repair Kit (Includes Screw and Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle and Spring, Mounting Gaskets, Idle Limit Cap)

$

$

Currently unavailable

4

Toro 146-0327

Variable Jet Kit-Optional (High Altitude Application Includes Power Jet and Gasket, Retainer, Power Needle Spring, Power Needle and Power Plug Gasket)

$

$

Currently unavailable

5

Toro 146-0425

Idle Jet

$

$

Currently unavailable

6

Toro 146-0396

Power Jet

$

$

Currently unavailable

7

Toro 146-0433

Choke Shaft Kit (Includes Choke Valve, Valve Set Screw and Air Filter)

$

$

Currently unavailable

8

Toro 146-0435

Choke Lever Kit (Includes Choke Lever Ring, Choke Spring and Choke Collar)

$

$

Currently unavailable

9

Toro 146-0324

Throttle Shaft Kit (Includes Valve Set Screw, Air Filter and Throttle Valve)

$

$

Currently unavailable
