E1-12K802 (312-8) - Toro Garden Tractor (1989) ONAN AIR CLEANER Parts Diagram

Garden Tractor

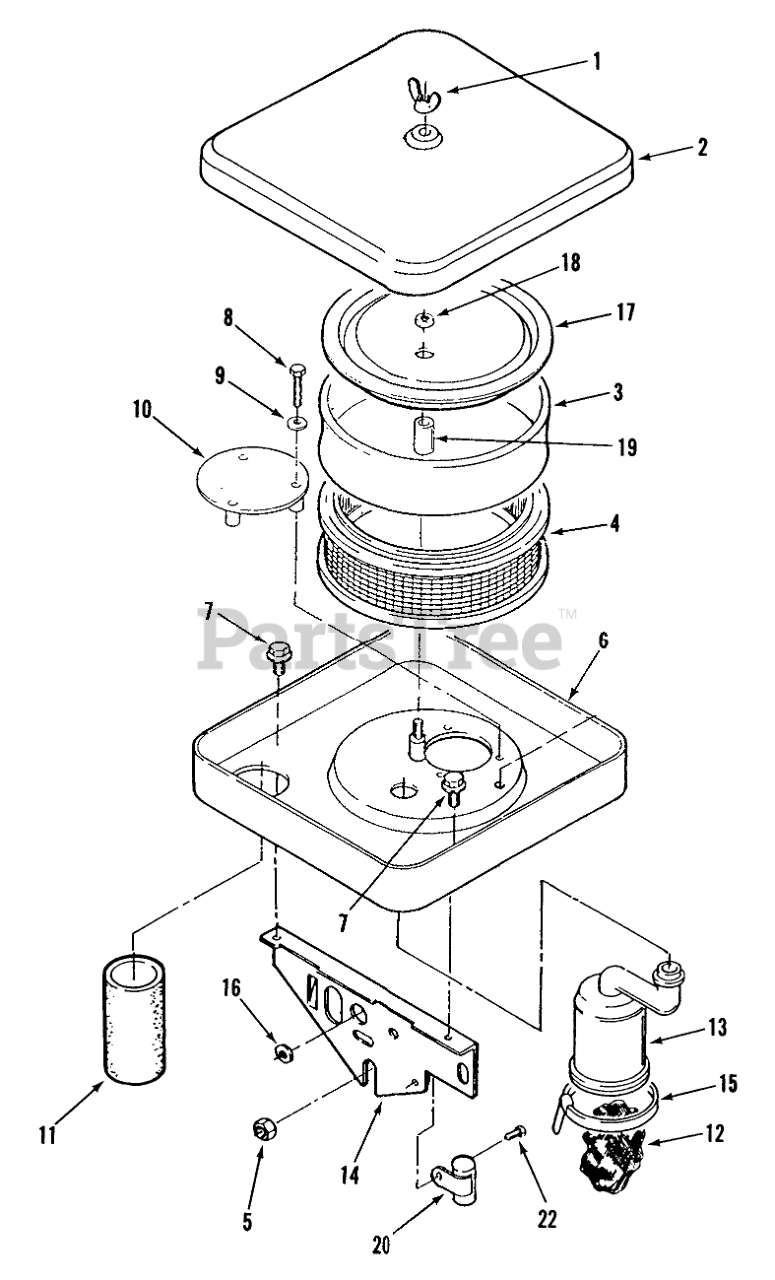

ONAN AIR CLEANER Parts Diagram

  • Title

1

Toro 865-0020

Wing Nut 1/4-20

$

$

Currently unavailable

2

Toro 140-2005-01

Air Cleaner Cover

$

$

Currently unavailable

3

Toro 140-1496

Air Cleaner Foam Element

$

$

Currently unavailable

4

Toro 140-1228

Air Cleaner Element

$54.99

$

Usually ships in 3-6 days

0

5

Toro 870-0399

Hex Washer Hd. Flange Nut 5/16-18

$

$

Currently unavailable

6

Toro 140-2004-01

Air Cleaner Housing

$

$

Currently unavailable

7

Toro 815-0575

Wash. Hd. Screw 1/4-20 x 3/8

$

$

Currently unavailable

8

Toro 815-0470

Hex. Hd. Mach. Screw No. 10-32 x 1-1/2

$

$

Currently unavailable

9

Toro 526-0234

Flat Washer No. 10

$

$

Currently unavailable

10

Toro 145-0521

Air Deflector Plate

$

$

Currently unavailable

11

Toro 140-2025

Air Intake Tube

$

$

Currently unavailable

12

Toro 123-1417

Breather Tube Filter

$

$

Currently unavailable

13

Toro 123-1429

Crankcase Breather

$

$

Currently unavailable

14

Toro 140-2017-01

Air Cleaner Support

$

$

Currently unavailable

15

Toro 503-1138

Breather Tube Clamp

$

$

Currently unavailable

16

Toro 508-0021

Rubber Grommet-3/4" Hole

$

$

Currently unavailable

17

Toro 140-1692

Element Cover

$

$

Currently unavailable

18

Toro 870-0365

Hex Nut 1/4-20

$

$

Currently unavailable

19

Toro 301-0458

Air Cleaner Stud Spacer

$

$

Currently unavailable

20

Toro 312-0256

Capacitor (300 VD)

$

$

Currently unavailable

21

Toro 815-0178

Hex Washer Hd. Screw No. 10-32 x 5/8

$

$

Currently unavailable
