E-Magnum - Bad Boy Zero-Turn Mower, Electric (2025) FRONT END AND ACTUATOR BARS Parts Diagram

Zero-Turn Mower, Electric

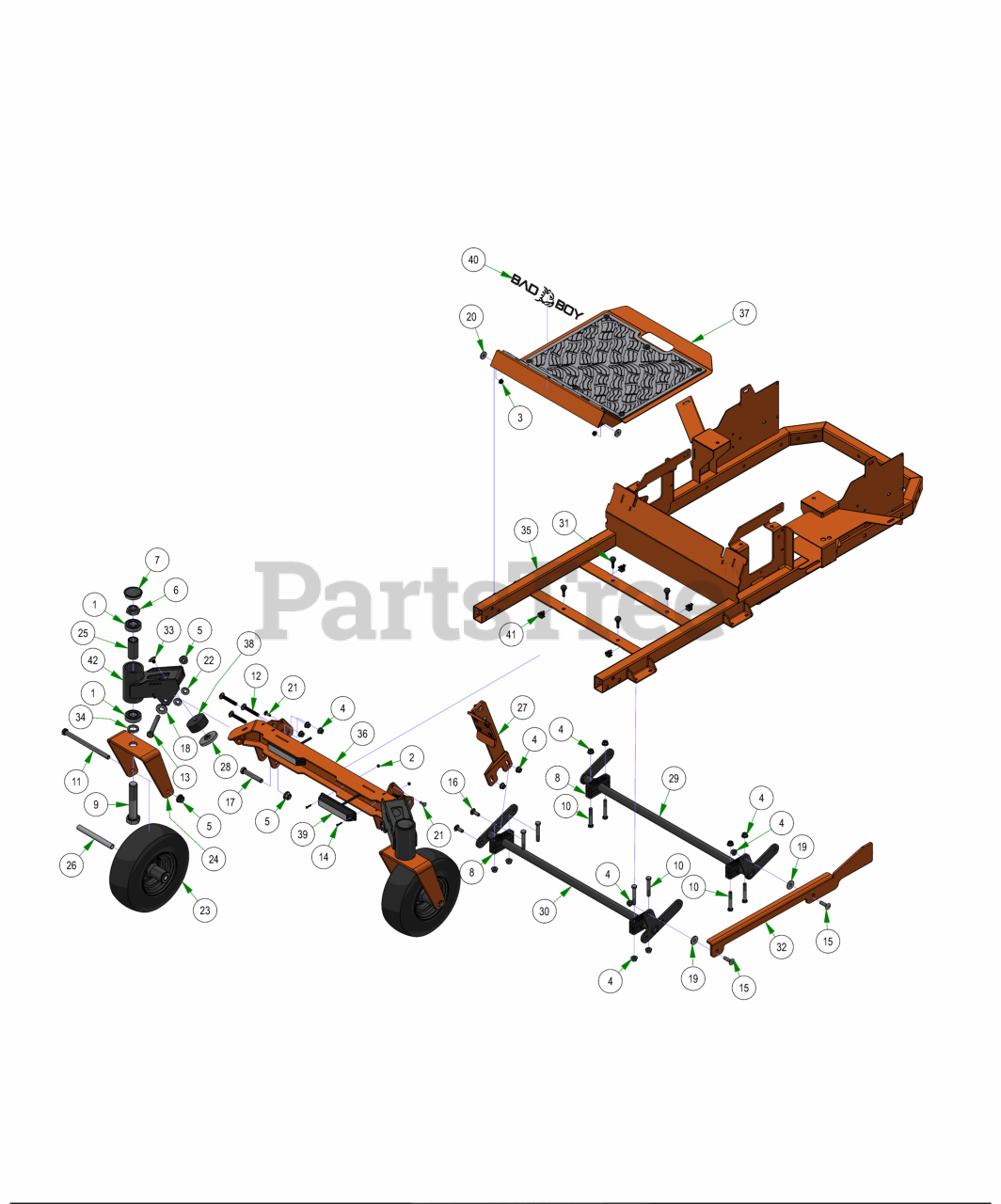

FRONT END AND ACTUATOR BARS Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-0100-00

6-32 Stainless Nylock Nut

$

$

Currently unavailable

3

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 8

0

7

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

8

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

10

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0035-00

1/2-13 X 7-1/2 HEX CAP SCREW (GR.5) ZINC

$5.49

$

In Stock, Qty 10

0

12

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 018-0051-00

1/2-13 X 3-3/4 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-0110-00

6-32 x 3/4" Stainless Pan Head Phillips Screw

$

$

Currently unavailable

15

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

16

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

18

Bad Boy 019-2040-00

1/2 F/W USS (1-3/8" OD) ZINCC

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 019-2073-00

.390 ID X 1.12 OD X .125 THK FLAT WASHER NYLON

$1.99

$

In Stock, only 3 left!

0

20

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

21

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

22

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

23

Bad Boy 022-8051-22

11 x 4.00 - 5 Front Tire Assembly (Black)

$61.99

$

In Stock, only 3 left!

0

24

Bad Boy 023-0005-00

MZ Front Fork (42" ONLY)

$45.99

$

Usually ships in 4-7 days

0

25

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

26

Bad Boy 025-0008-00

Front Wheel Spanner

$16.99

$

In Stock, Qty 20+

0

27

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

28

Bad Boy 026-1600-00

E Mower Suspension Front End Compression Plate

$

$

Currently unavailable

29

Bad Boy 028-1001-00

Residential E Mower Rear Actuator Bar

$

$

Currently unavailable

30

Bad Boy 028-1002-00

Residential E Mower Front Actuator Bar

$

$

Currently unavailable

31

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

32

Bad Boy 031-0511-00

Residential E Mower Actuator Bar Linkage

$

$

Currently unavailable

33

Bad Boy 040-6082-00

Ribbed Shank Push-In Rivet

$

$

Currently unavailable

34

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 5

0

35

Bad Boy 070-2403-00

Residential E Mower Frame

$

$

Currently unavailable

36

Bad Boy 070-9063-00

Residential E Mower Front End

$

$

Currently unavailable

37

Bad Boy 079-3471-EV

2024 EV Floorboard Assembly

$

$

Currently unavailable

38

Bad Boy 087-0006-00

E Mower Front Suspension Rubber

$

$

Currently unavailable

39

Bad Boy 089-2070-00

E Mower Headlight

$

$

Currently unavailable

40

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

$

Usually ships in 4-7 days

0

41

Bad Boy 214-1008-00

Edge Clip With Ziptie

$

$

Currently unavailable

42

Bad Boy 250-2760-00

Residential E Mower Suspension Arm

$

$

Currently unavailable
