E-Magnum - Bad Boy Zero-Turn Mower, Electric (2025) DECK Parts Diagram

Zero-Turn Mower, Electric

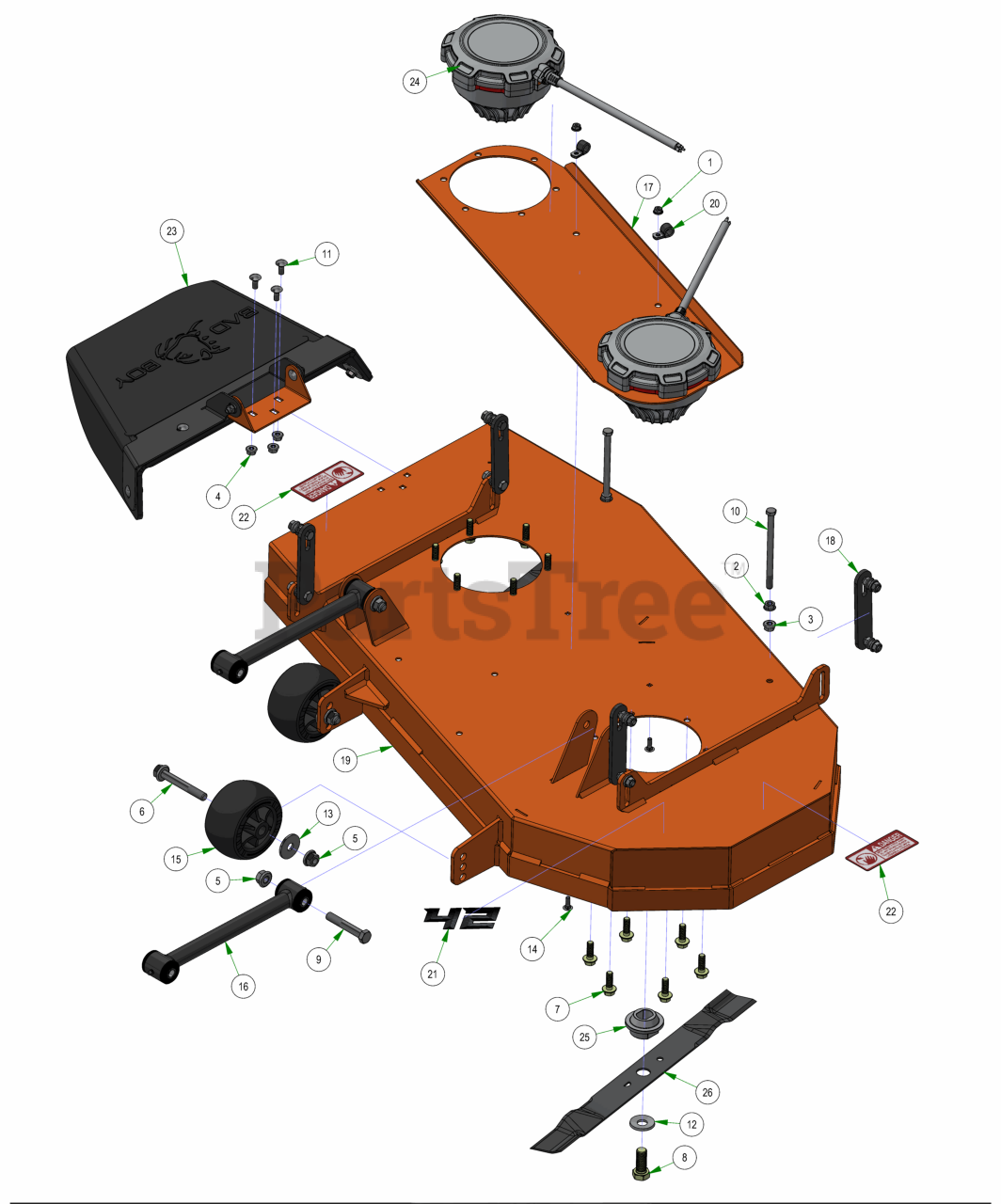

DECK Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

5

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-0112-00

M10 x 1.5mm x 30mm Flanged Hex Head Screw

$

$

Currently unavailable

8

Bad Boy 018-0113-00

M16 x 1.5mm x 40mm 10.9 Hex Head Screw

$

$

Currently unavailable

9

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-8062-00

5/16-18 x 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-0015-00

M16 Conical Lock Washer

$

$

Currently unavailable

13

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

14

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

15

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

16

Bad Boy 028-0004-22

Hybrid Turnbuckle/Deck Locator

$49.99

$

In Stock, Qty 20+

0

17

Bad Boy 039-0556-00

Residential E Mower 42 Deck Stiffiner

$

$

Currently unavailable

18

Bad Boy 039-2127-17

Deck Hanger Assembly

$16.99

$

In Stock, only 3 left!

0

19

Bad Boy 060-2402-00

Residential E Mower 42 Deck

$

$

Currently unavailable

20

Bad Boy 071-5001-00

1/2" ID P Clamp

$

$

Currently unavailable

21

Bad Boy 091-0502-00

42" Deck Decal

$

$

Not available

22

Bad Boy 091-3012-00

Danger Decal-Spindle/Discharge

$3.49

$

In Stock, only 3 left!

0

23

Bad Boy 210-6015-98

MZ Discharge Chute Assembly

$166.99

$

In Stock, only 4 left!

0

24

Bad Boy 700-0025-00

Residential E Mower Spindle Motor

$

$

Currently unavailable

25

Bad Boy 700-0027-00

Residential E Mower Blade Adapter

$

$

Currently unavailable

26

Bad Boy 700-0028-00

Residential E Mower 42 Blade

$18.99

$

Usually ships in 0 days

0
