E-Magnum - Bad Boy Zero-Turn Mower, Electric (2024) SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower, Electric

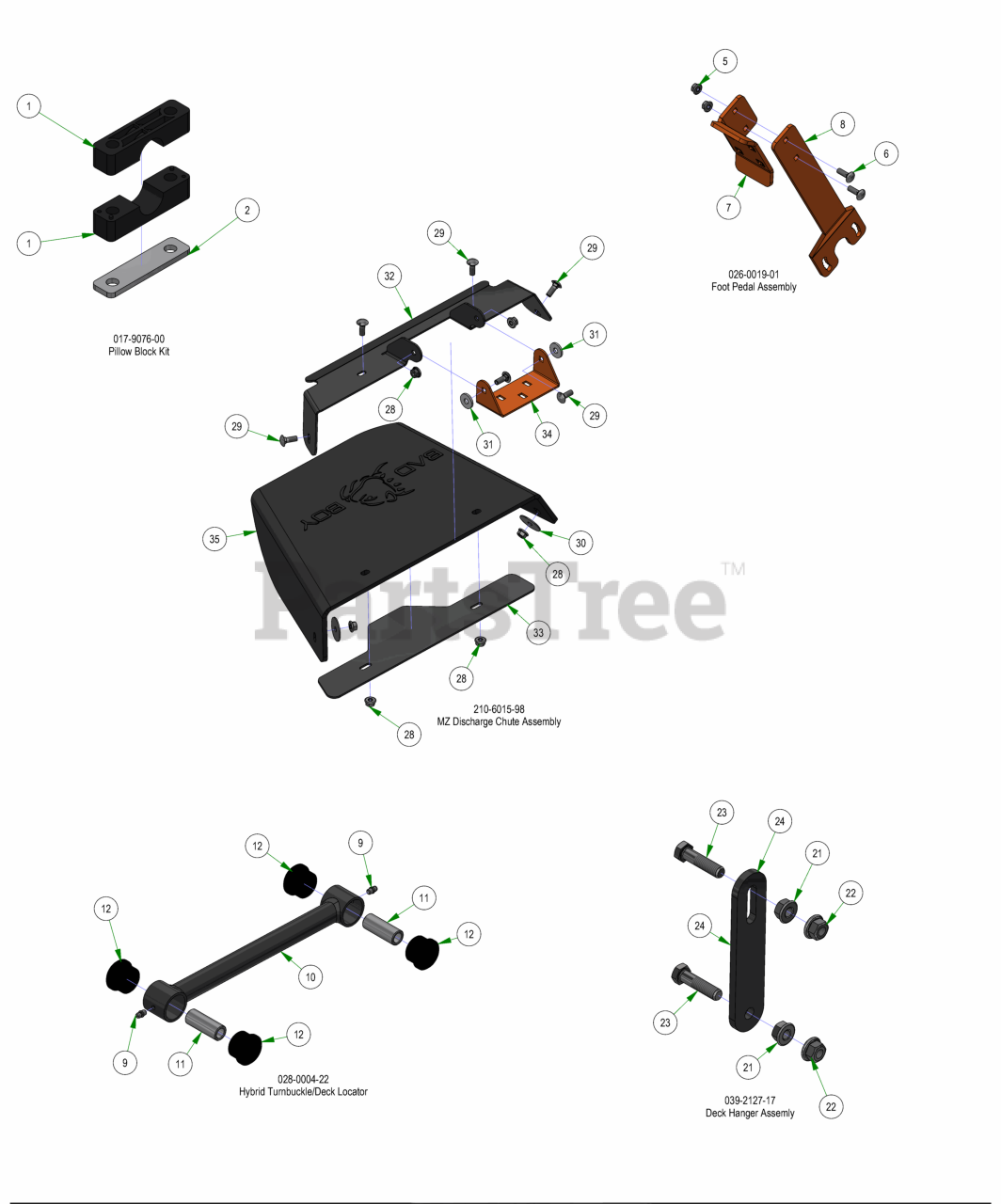

SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

2

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 022-2032-00

20x10-8 4P A2103 Tire Only

$113.99

$

Usually ships in 4-7 days

0

4

Bad Boy 022-2033-00

8 x 6.375 4H Black Wheel Only

$

$

Not available

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

7

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

8

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

9

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 028-0004-03

2022 Isolator Turnbuckle Body

$

$

Currently unavailable

11

Bad Boy 048-6004-00

2018 Maverick Bushing Sleeve

$12.99

$

Usually ships in 4-7 days

0

12

Bad Boy 048-6005-00

2018 Maverick Bushing

$34.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

15

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

16

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0063-00

2023 Residential Electric Mower Dial Rod

$

$

Currently unavailable

18

Bad Boy 031-7162-00

Residential E Mower LH Drive Arm

$

$

Currently unavailable

19

Bad Boy 069-4015-00

2023 Steering Grip

$

$

Currently unavailable

20

Bad Boy 031-7163-00

Residential E Mower RH Drive Arm

$

$

Currently unavailable

21

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

24

Bad Boy 039-2127-00

2017 MZ/ZT Deck Hanger

$11.99

$

Usually ships in 0 days

0

25

Bad Boy 071-2300-02

Seat Switch

$

$

Currently unavailable

26

Bad Boy 071-2300-01

SK130 Electric Seat Cover

$

$

Currently unavailable

27

Bad Boy 071-2300-03

Arm Rest Kit

$

$

Currently unavailable

28

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

29

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

30

Bad Boy 019-0002-00

5/16 FENDER WASHER (1-1/2 OD) ZINC

$

$

Not available

31

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

32

Bad Boy 039-4891-00

Discharge Chute Bracket 48 MZ (Upper)

$37.99

$

Usually ships in 4-7 days

0

33

Bad Boy 039-4892-00

2017 MZ Discharge Chute Bracket-Lower

$

$

Not available

34

Bad Boy 206-6020-00

Chute Hanger 48 MZ

$30.99

$

Usually ships in 4-7 days

0

35

Bad Boy 210-6014-00

Rubber Discharge Chute MZ (Component)

$56.99

$

In Stock, only 2 left!

0

36

Bad Boy 700-0017-00

Pressure Switch

$

$

Currently unavailable

37

Bad Boy 700-0019-00

Potentiometer

$

$

Currently unavailable

38

Bad Boy 079-3484-00

Residential E Mower Control Panel

$

$

Currently unavailable

39

Bad Boy 700-0018-00

Residential E Mower Display

$

$

Currently unavailable

40

Bad Boy 077-8077-00

Ignition Switch

$28.99

$

Usually ships in 0 days

0

41

Bad Boy 700-1000-00

Magnum E-Mower Control Panel Decal

$

$

Currently unavailable

42

Bad Boy 700-0016-00

Special-use Switch

$

$

Currently unavailable

43

Bad Boy 079-3471-00

Residential E Mower Floorboard

$

$

Currently unavailable

44

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

45

Bad Boy 081-4001-00

2021 Maverick Floor Mat W/ Reaper Tread

$56.99

$

Usually ships in 4-7 days

0
