E 899E (126E899F100) - Cub Cadet Walk-Behind Mower Engine (1996) Starter And Electronic Components Parts Diagram

Walk-Behind Mower Engine

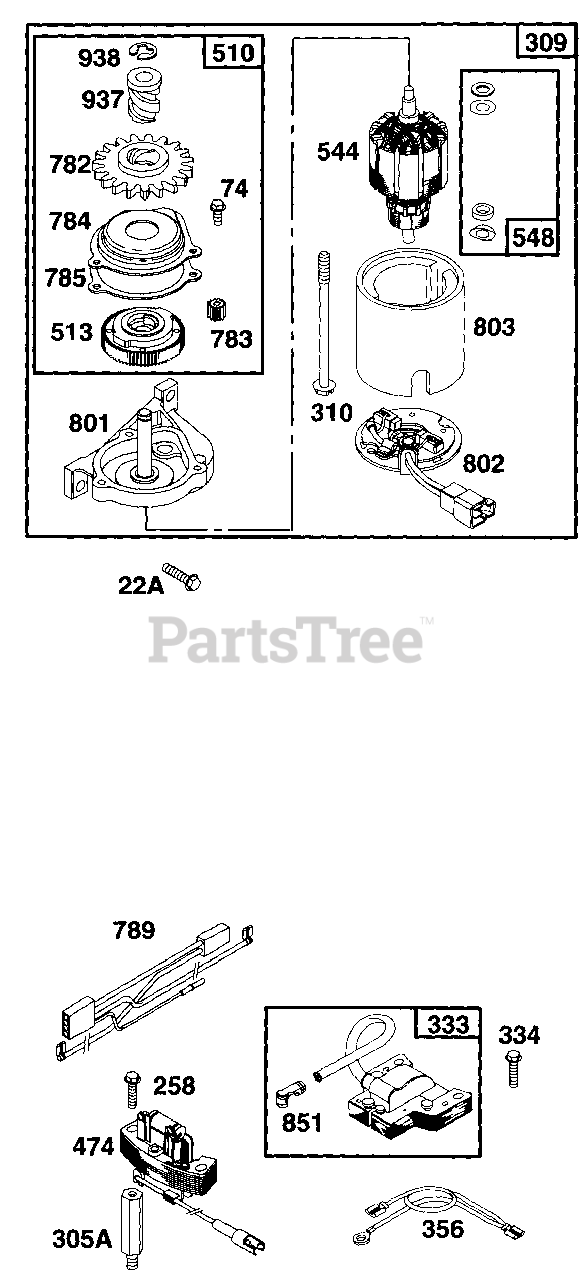

Starter And Electronic Components Parts Diagram

  • Title
22A

Cub Cadet BS-94268

Screw-Hex. Head
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 13

0

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

258

Cub Cadet BS-94512

Screw-Hex. Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

305A

Cub Cadet BS-94510

Stud-Mounting
(Superseded to BS-691094)

$10.99

$

In Stock, only 2 left!

0

309

Cub Cadet BS-494233

Motor-Starter
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

310

Cub Cadet BS-94051

Bolt-Thru

$

$

Not available

333

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 9

0

334

Cub Cadet BS-94731

Screw-Sem

$

$

Not available

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

474

Cub Cadet BS-492841

Alternator
(Superseded to BS-691991)

$118.99

$

Usually ships in 2-12 days

0

510

$33.99

$

Usually ships in 2-12 days

0

513

Cub Cadet BS-394815

Clutch Assembly

$

$

Not available

544

Cub Cadet BS-492921

Armature-Starter

$

$

Not available

548

Cub Cadet BS-492939

Washer Set-Starter

$

$

Currently unavailable

782

Cub Cadet BS-281127

Gear-Starter
(Superseded to BS-795099)

$21.99

$

Usually ships in 2-12 days

0

783

Cub Cadet BS-261606

Gear-Pinion

$

$

Not available

784

Cub Cadet BS-224262

Cover-Gear

$

$

Not available

785

Cub Cadet BS-272201

Gasket-Gear Cover
(Superseded to BS-692352)

$6.49

$

Usually ships in 2-12 days

0

789

Cub Cadet BS-493380

Harness-Wiring

$

$

Not available

801

Cub Cadet BS-492335

Cap-Drive
(Superseded to BS-690782)

$85.99

$

Usually ships in 2-12 days

0

802

$

$

Not available

803

Cub Cadet BS-492920

Housing-Starter

$

$

Not available

851

Cub Cadet BS-493880

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

937

Cub Cadet BS-281125

Drive-Starter
(Superseded to BS-795098)

$11.99

$

Usually ships in 2-12 days

0

938

Cub Cadet BS-93941

Retainer-Lock
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0
