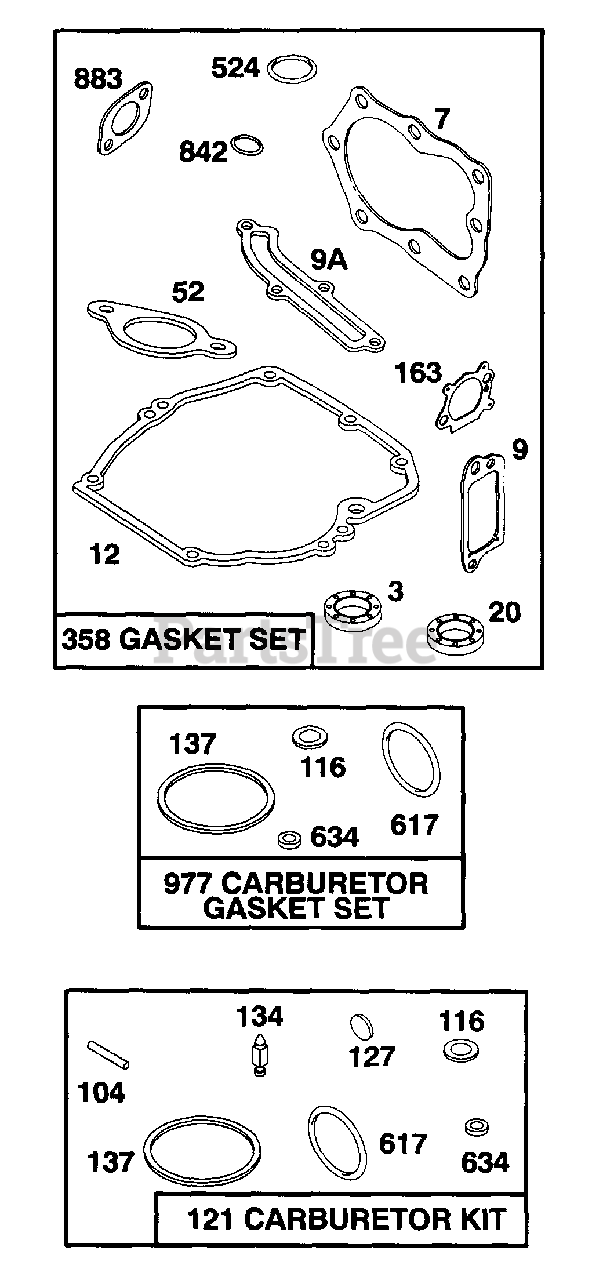

E 898O (125E898O100) - Cub Cadet Walk-Behind Mower Engine (1995) Gaskets And Carburetor Kit Parts Diagram

Walk-Behind Mower Engine

Gaskets And Carburetor Kit Parts Diagram

  • Title

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

In Stock, Qty 13

0

7

Cub Cadet BS-272916

Gasket-Cylinder Hd.
(Superseded to BS-692249)

Note: Included In Gasket Set, P/N BS-496117

$8.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-272481

Gasket-Valve Cover
(Superseded to BS-699833)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

Usually ships in 2-12 days

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

Note: Included In Gasket Set, P/N BS-496117

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

Note: Included In Gasket Set, P/N BS-496117

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

Note: Included In Gasket Set, P/N BS-496117

$7.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-272199

Gasket-intake
(Superseded to BS-272199S)

Note: Included In Gasket Set, P/N BS-496117

$4.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: Included In Carburetor Kit, P/N BS-493762

$3.99

$

In Stock, Qty 10

0

116

Gasket-Sealing (Sold in Kit Only).

Note: Included In Carburetor Gasket Set, P/N BS-490937; Included In Carburetor Kit, P/N BS-493762

$

$

Not available

121

Cub Cadet BS-493762

Carburetor Kit
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

127

Plug-Welch (Sold in Kit Only).

Note: Included In Carburetor Kit, P/N BS-493762

$

$

Not available

134

Cub Cadet BS-398188

Valve-Inlet

Note: Included In Carburetor Kit, P/N BS-493762

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only).

Note: Included In Carburetor Gasket Set, P/N BS-490937; Included In Carburetor Kit, P/N BS-493762

$

$

Not available

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

Note: Included In Gasket Set, P/N BS-496117

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-496117

Gasket Set

$40.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-280393

Seal Fill Tube
(Superseded to BS-691031)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

In Stock, Qty 20+

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

Note: Included In Carburetor Gasket Set, P/N BS-490937; Included In Carburetor Kit, P/N BS-493762

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft (Sold in Kit Only).

Note: Included In Carburetor Gasket Set, P/N BS-490937; Included In Carburetor Kit, P/N BS-493762

$

$

Not available

842

Cub Cadet BS-280966

Seal-O-Ring
(Superseded to BS-692296)

Note: Included In Gasket Set, P/N BS-496117

$4.99

$

In Stock, only 1 left!

0

977

Cub Cadet BS-490937

Gasket Set-Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

883

Cub Cadet BS-272253

Gasket-Muffler
(Superseded to BS-691881)

Note: Included In Gasket Set, P/N BS-496117

$8.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-496117

Gasket Set

Note: Includes Ref Nos 3, 7, 9, 12, 20, 52, 163, 524, 842 & 883

$40.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490937

Carburetor Gasket Set
(Superseded to BS-498260)

Note: Includes Ref Nos 116, 137, 617 & 634

$16.99

$

In Stock, Qty 20+

0

Cub Cadet BS-493762

Carburetor Kit
(Superseded to BS-498260)

Note: Includes Ref Nos 104, 116, 127, 134, 137, 617 & 634

$16.99

$

In Stock, Qty 20+

0
