E 898O (125E898O100) - Cub Cadet Walk-Behind Mower Engine (1995) Engine Internal And Fuel Tank Parts Diagram

Walk-Behind Mower Engine

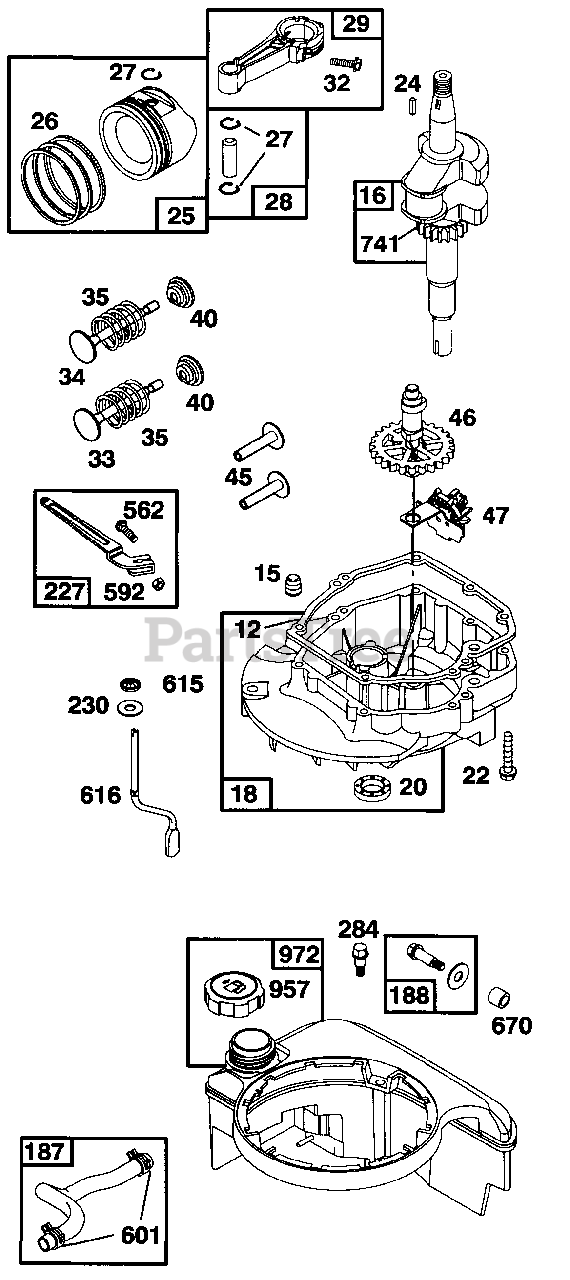

Engine Internal And Fuel Tank Parts Diagram

  • Title

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

Note: Included In Gasket Set, P/N BS-496117

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-493362

Crankshaft

$

$

Not available

18

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

Note: Included In Gasket Set, P/N BS-496117

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94220

Screw-Hex. Head
(Superseded to BS-691092)

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-493262

Piston Assy. (Standard)

$74.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493385

Piston Assy. (.010" O.S.)

$62.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493386

Piston Assy. (.020" O.S.)

$

$

Not available

Cub Cadet BS-493387

Piston Assy. (.030" O.S.)

$62.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-493261

Ring Set (Standard)

$41.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493388

Ring Set (.010" O.S.)

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493389

Ring Set (.020" O.S.)

$

$

Not available

Cub Cadet BS-493390

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin-Piston (Standard)

$8.99

$

In Stock, only 3 left!

0

Cub Cadet BS-298908

Pin-Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-490566

Rod-Connecting

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490743

Rod-Connecting (.020" Undersize).

$

$

Currently unavailable

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-492830

Gear-Cam

$73.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-493737

Slinger-Oil
(Superseded to BS-691997)

$25.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-492349

Lever-Governor
(Superseded to BS-690783)

$15.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-67072

Washer-Thrust
(Superseded to BS-690272)

$3.99

$

In Stock, only 2 left!

0

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

615

Cub Cadet BS-94474

Fastener
(Superseded to BS-690340)

$4.49

$

In Stock, Qty 10

0

616

Cub Cadet BS-262578

Crank-Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$17.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-492791

Hose Fuel
(Superseded to BS-791873)

$15.99

$

In Stock, Qty 7

0

188

Cub Cadet BS-398540

Screw-Hex. Head
(Superseded to BS-692311)

$7.49

$

In Stock, only 1 left!

0

284

Cub Cadet BS-94511

Screw-Hex. Hd.
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 14

0

601

Cub Cadet BS-93807

Clamp-Hose

$

$

Not available

670

Cub Cadet BS-280512

Spacer-Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 5

0

957

Cub Cadet BS-397974

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

972

Cub Cadet BS-495224

Tank-Fuel
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0

Cub Cadet BS-496117

Gasket Set

Note: Includes Ref Nos 12 & 20

$40.99

$

Usually ships in 2-12 days

0
