E 898O (125E898O100) - Cub Cadet Walk-Behind Mower Engine (1995) Cylinder Assembly And Carburetor Accessories Parts Diagram

Walk-Behind Mower Engine

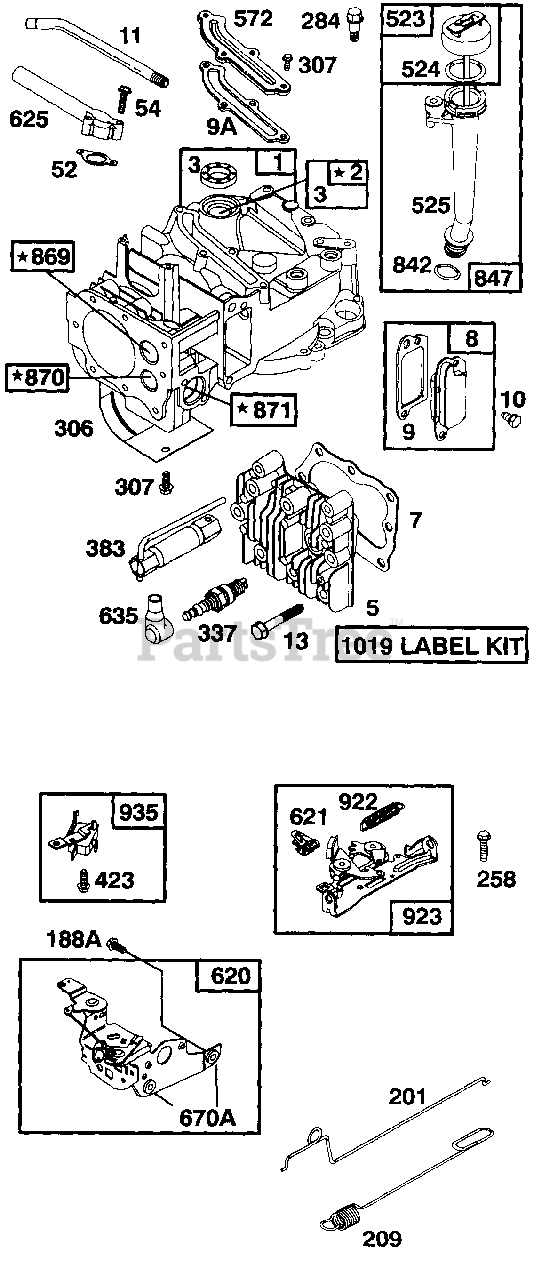

Cylinder Assembly And Carburetor Accessories Parts Diagram

  • Title

Cub Cadet BS-493832

Short Block
(Superseded to BS-498826)

$

$

Not available

1

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

In Stock, Qty 17

0

5

BS 214368

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272916

Gasket-Cylinder Hd.
(Superseded to BS-692249)

Note: Included In Gasket Set, P/N BS-496117

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Gasket-Valve Cover
(Superseded to BS-699833)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

In Stock, only 1 left!

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

Note: Included In Gasket Set, P/N BS-496117

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94650

Screw-Hex. Head

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-231933

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94547

Screw-Cylinder Hd.
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-272199

Gasket-intake
(Superseded to BS-272199S)

Note: Included In Gasket Set, P/N BS-496117

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-94526

Screw-Hex. Head
(Superseded to BS-691650)

$2.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw-Hex. Head
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-224324

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94515

Screw-Hex. Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 14

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-495264

Cap-Oil Fill
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-280393

Seal-Fill Tube
(Superseded to BS-691031)

Note: Included In Gasket Set, P/N BS-496117

$5.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-495265

Tube-Oil Fill

$

$

Not available

572

Cub Cadet BS-224328

Baffle-Cylinder

$

$

Not available

625

Cub Cadet BS-281085

Tube-Fuel Intake
(Superseded to BS-794305)

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

842

Cub Cadet BS-280966

Seal-0-Ring
(Superseded to BS-692296)

Note: Included In Gasket Set, P/N BS-496117

$4.99

$

In Stock, only 3 left!

0

847

Cub Cadet BS-495263

Tube Assy.-Oil
(Superseded to BS-692047)

$

$

Not available

869

Cub Cadet BS-213512

Seat-Intake Valve
(Superseded to BS-691155)

$8.99

$

In Stock, only 1 left!

0

870

Cub Cadet BS-213513

Seat-Exhaust Valve

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

1019

$

$

Not available

188A

Cub Cadet BS-94644

Screw-Hex. Hd.
(Superseded to BS-690877)

$3.99

$

In Stock, only 3 left!

0

201

Cub Cadet BS-262579

Link-Governor
(Superseded to BS-691829)

$8.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-263044

Spring-Governor
(Superseded to BS-690319)

$8.49

$

In Stock, only 1 left!

0

258

Cub Cadet BS-94512

Screw-Hex. Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

423

Cub Cadet BS-93758

Screw-Hex Hd. Sem

$

$

Not available

620

Cub Cadet BS-497203

Bracket-Carburetor
(Superseded to BS-790143)

$44.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

670A

Cub Cadet BS-493823

Spacer-Bracket

$6.49

$

In Stock, only 1 left!

0

922

Cub Cadet BS-262640

Spring-Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-493442

Brake Assembly
(Superseded to BS-796387)

$

$

Not available

935

Cub Cadet BS-398758

Switch-Starting

$

$

Not available

Cub Cadet BS-496117

Gasket Set

Note: Includes Ref Nos 3, 7, 9, 52, 524 & 842

$40.99

$

Usually ships in 2-12 days

0
