E 898O (124E898O100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Starter Motor Parts Diagram

Walk-Behind Mower Engine

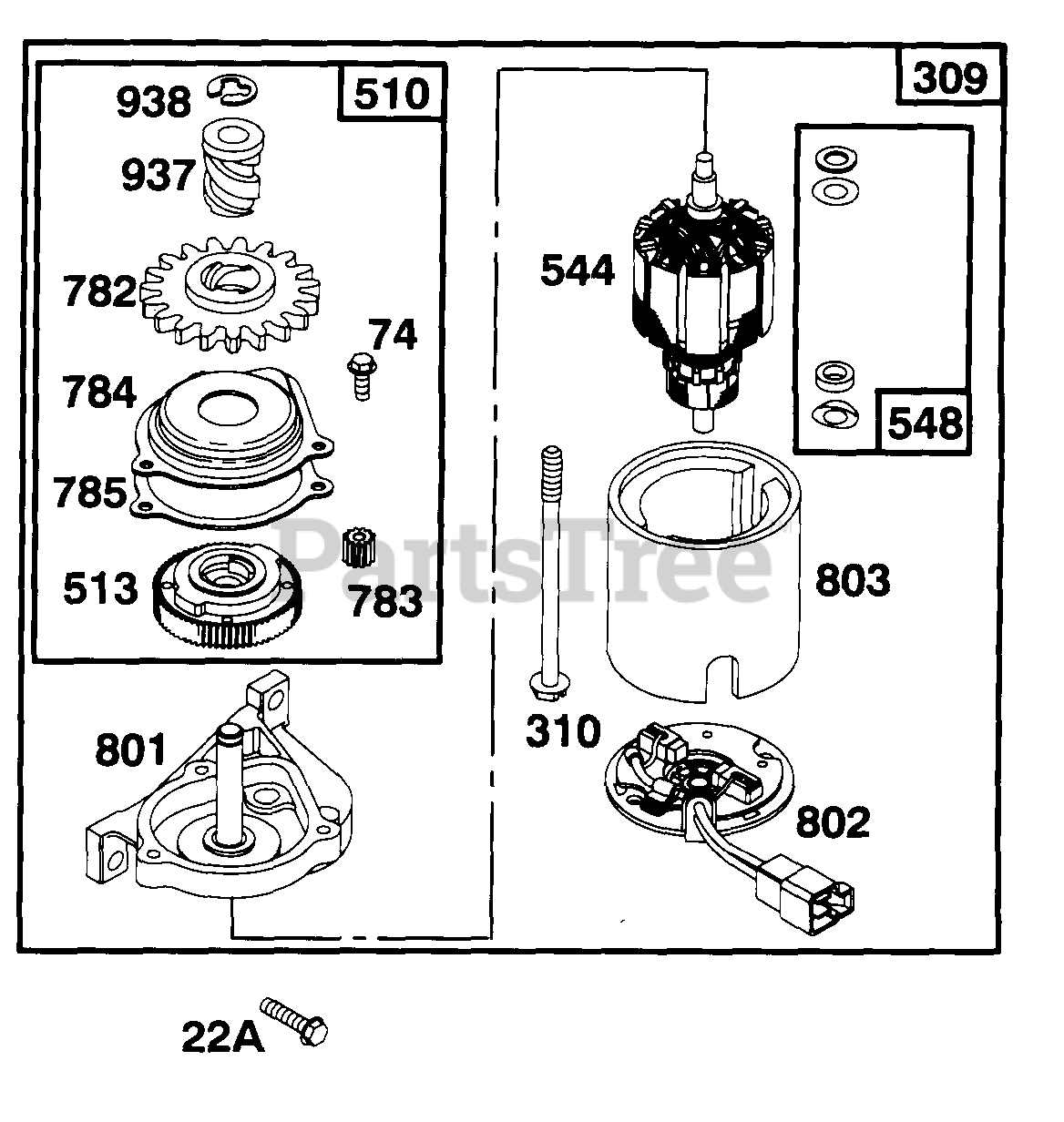

B&S 5 HP Starter Motor Parts Diagram

  • Title
22A

Cub Cadet BS-94268

Screw-Hex. Head
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 13

0

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

309

Cub Cadet BS-494233

Motor-Starter
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

310

Cub Cadet BS-94051

Bolt-Thru

$

$

Not available

510

$33.99

$

Usually ships in 2-12 days

0

513

Cub Cadet BS-394815

Clutch Assembly

$

$

Not available

544

Cub Cadet BS-492921

Armature-Starter

$

$

Not available

548

Cub Cadet BS-492919

Washer Set -Starter

$2.49

$

Usually ships in 2-12 days

0

782

Cub Cadet BS-281127

Gear-Starter
(Superseded to BS-795099)

$21.99

$

Usually ships in 2-12 days

0

783

Cub Cadet BS-261606

Gear-Pinion

$

$

Not available

784

Cub Cadet BS-224262

Cover-Gear

$

$

Not available

785

Cub Cadet BS-272201

Gasket-Gear Cover
(Superseded to BS-692352)

$6.49

$

Usually ships in 2-12 days

0

801

Cub Cadet BS-492335

Cap-Drive
(Superseded to BS-690782)

$85.99

$

Usually ships in 2-12 days

0

802

$

$

Not available

803

Cub Cadet BS-492920

Housing-Starter

$

$

Not available

937

Cub Cadet BS-281125

Drive-Starter
(Superseded to BS-795098)

$11.99

$

Usually ships in 2-12 days

0

938

Cub Cadet BS-93941

Retainer-Lock
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0
