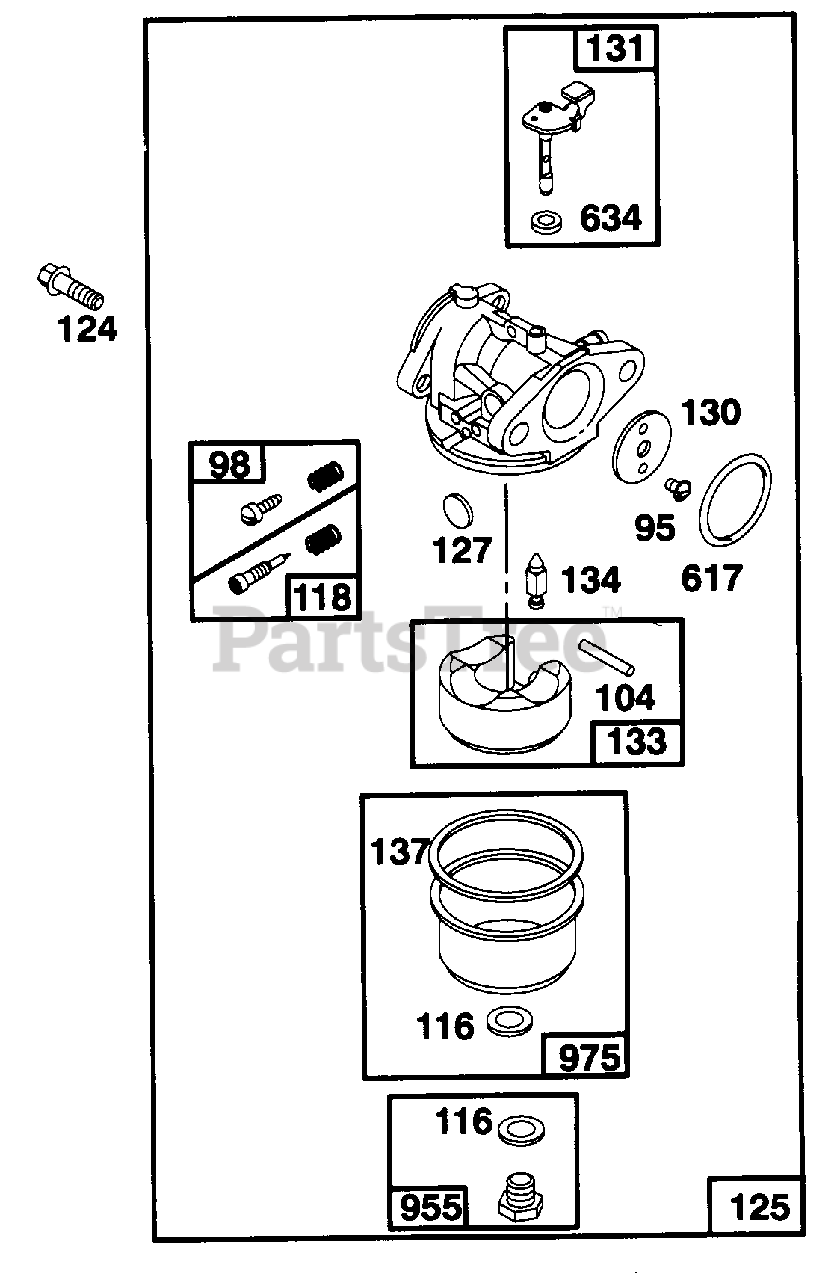

E 898O (124E898O100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Carburetor Parts Diagram

Walk-Behind Mower Engine

B&S 5 HP Carburetor Parts Diagram

  • Title

95

Cub Cadet BS-94098

Screw-Round Head
(Superseded to BS-691636)

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

116

Gasket-Sealing

Note: (Sold in Kit Only).

$

$

Not available

118

Cub Cadet BS-493765

Valve Kit-Needle

$14.99

$

Usually ships in 2-12 days

0

124

Cub Cadet BS-94525

Screw-Carburetor Mtg.
(Superseded to BS-692524)

$

$

Not available

125

Cub Cadet BS-496114

Carburetor

$

$

Not available

127

Plug-Welch

Note: (Sold in Kit Only).

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

133

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat).

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

Note: (Sold in Kit Only).

$

$

Not available

617

Cub Cadet BS-270344

Seal-Intake Elbow
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

Note: (Sold in Kit Only).

$

$

Not available

955

Cub Cadet BS-493637

Screw-Fuel Bowl

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-496870

Screw-Fuel Bowl

Note: (For High Altitude)

$

$

Currently unavailable

975

Cub Cadet BS-493640

Bowl-Float
(Superseded to BS-796611)

$

$

Not available
