E 898O (124E898O100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 10.5 HP Short Block Ass'y Parts Diagram

Walk-Behind Mower Engine

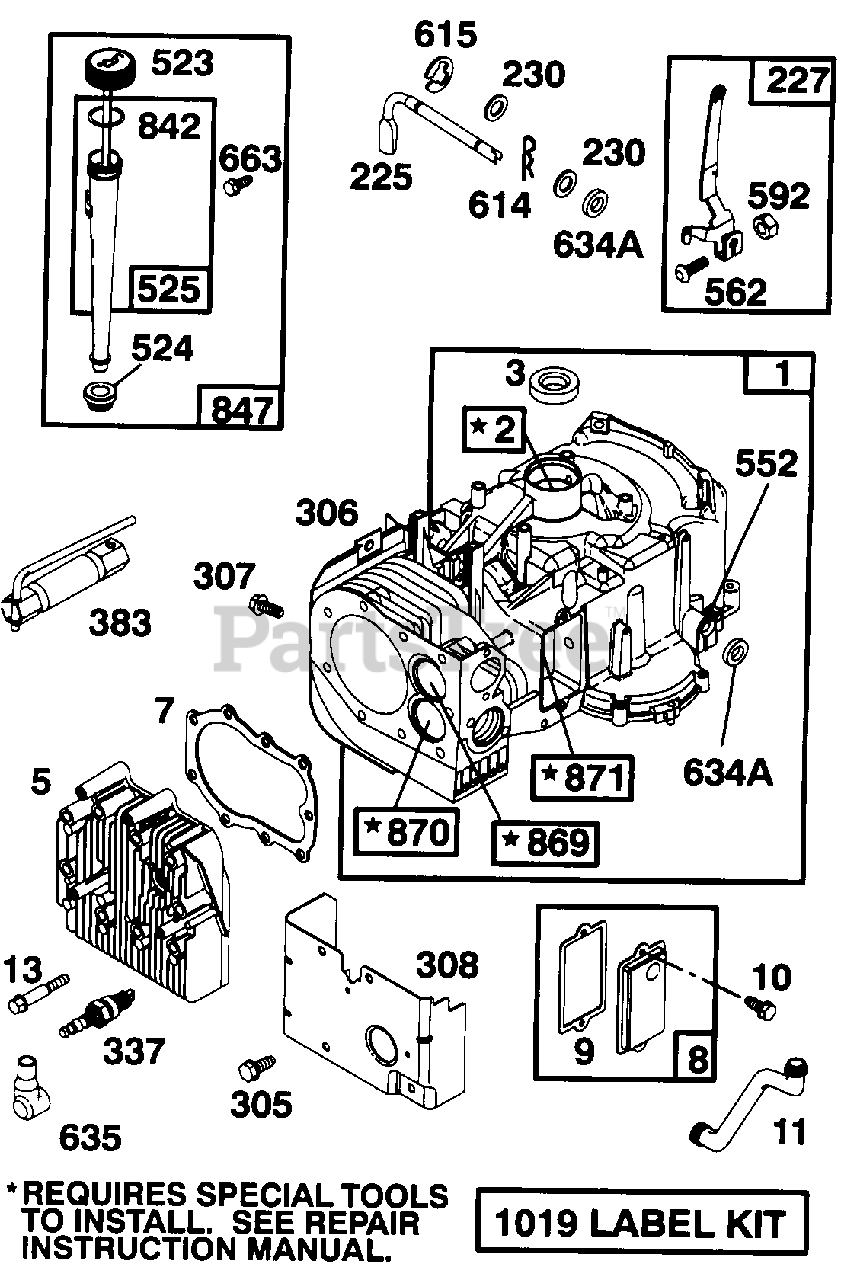

B&S 10.5 HP Short Block Ass'y Parts Diagram

  • Title

Cub Cadet BS-496606

Short Block

$445.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-496413

Cylinder Assembly

$344.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399265

Bearing-Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

Note: Included in Gasket Set--Part No. BS-494241.

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-271866

Gasket-Cylinder Head
(Superseded to BS-271866S)

Note: Included in Gasket Set--Part No. BS-494241.

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-495735

Breather Assembly

$63.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: Included in Gasket Set--Part No. BS-494241.

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-281246

Tube-Breather
(Superseded to BS-691328)

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-94622

Screw-Cylinder Head
(Superseded to BS-690904)

$11.99

$

In Stock, only 4 left!

0

225

Cub Cadet BS-231058

Crank-Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-493935

Lever Assy.-Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer-Governor Lever
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

305

Cub Cadet BS-94780

Screw-Hex. Head

$

$

Currently unavailable

306

Cub Cadet BS-224545

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94623

Screw-Sem

$

$

Not available

308

Cub Cadet BS-491490

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.99

$

In Stock, Qty 14

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-495230

Cap-Oil Filler
(Superseded to BS-692014)

$25.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

Note: Included in Gasket Set--Part No. BS-494241.

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-496113

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231597

Bushing-Gov. Crank

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

614

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

634A

Cub Cadet BS-491323

Seal-Governor
(Superseded to BS-692407)

Note: Included in Gasket Set--Part No. BS-494241.

$7.99

$

In Stock, Qty 8

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

663

Cub Cadet BS-94073

Screw-Hex. Head
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

842

Cub Cadet BS-270920

Seal-Oil Filler Cap
(Superseded to BS-691870)

Note: Included in Gasket Set--Part No. BS-494241.

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-496415

Fill Group-Oil

$47.99

$

In Stock, only 2 left!

0

869

Cub Cadet BS-261463

Seat-Intake Valve
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213316

Seat-Exhaust Valve
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Guide-Intake Valve

$14.99

$

In Stock, Qty 7

0

1019

Cub Cadet BS-491254

Label Kit

$27.99

$

Usually ships in 2-12 days

0
