E 898O (124E898O100) - Cub Cadet Walk-Behind Mower (1994) Self-Propelled Rotary Mower Parts Diagram

Walk-Behind Mower

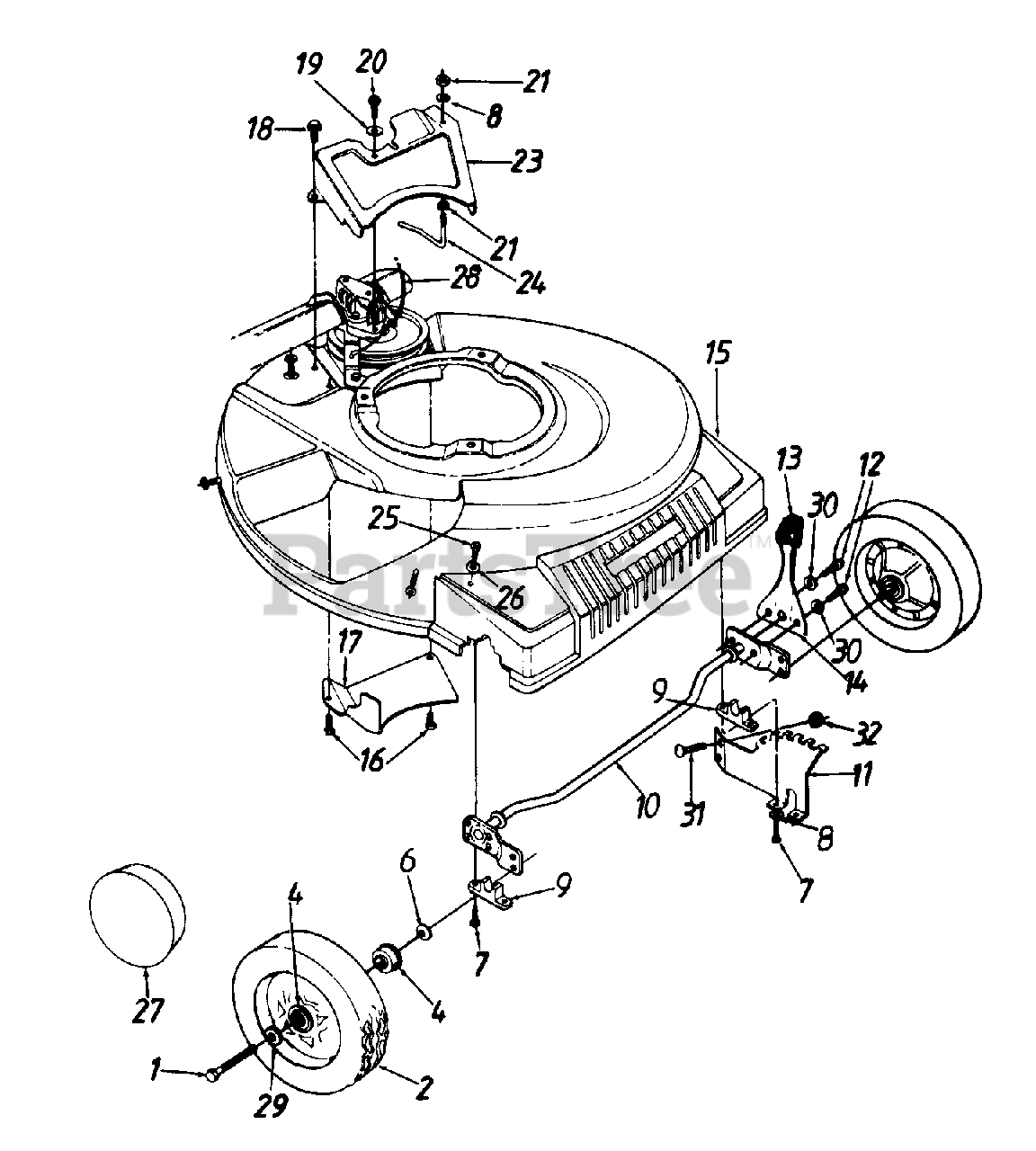

Self-Propelled Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

2

Cub Cadet 734-1517B

Wheel Ass'y. Comp. (Beige)

$68.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-0484

Flange Ball Brg. .501" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 736-0105

Bell-Wash. .380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1241

Hex Wash. Hd. Scr. 1/4-20 x 1" Lg.

$6.99

$

In Stock, Qty 18

0

8

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

10

Cub Cadet 17733

Axle Ass'y.

$

$

Not available

11

Cub Cadet 782-0516

Height Adj. Bracket

$

$

Not available

12

Cub Cadet 710-0653

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

14

Cub Cadet 732-0639

Spring Lever

$

$

Not available

15

Cub Cadet 731-1281

Plastic Front End (Black)
(Superseded to 931-1281A)

$

$

Not available

16

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 17065A

Belt Cover
(Superseded to 17065A-0637)

Variations

Cub Cadet 17065A-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 17058A

Transmission Belt Guard
(Superseded to 17058A-0637)

Variations

Cub Cadet 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 747-0549

S.P. Belt Guard

$

$

Not available

25

Cub Cadet 710-1242

Torx Truss Hd. Scr. 5/16 x .75"

$4.99

$

In Stock, Qty 19

0

26

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 731-0982A

Hub Cap (Beige)
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

28

Cub Cadet 746-0710A

S.P. Cable 50" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

29

Cub Cadet 736-0504

Wave Wash. .51" I.D. x .75" O.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

30

Cub Cadet 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

31

Cub Cadet 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3027

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0
