E 898E (123E898E100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 5 HP Short Block Ass'y Parts Diagram

Walk-Behind Mower Engine

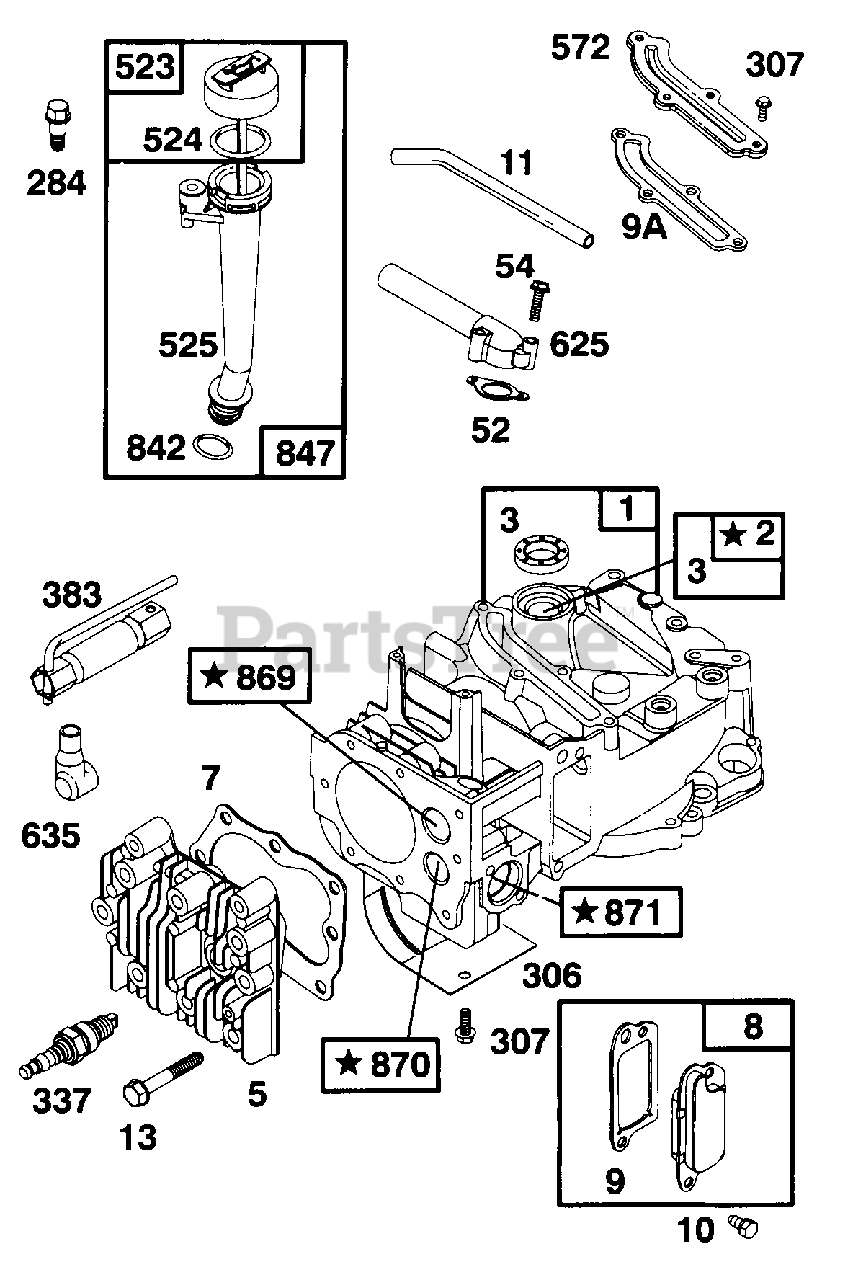

B&S 5 HP Short Block Ass'y Parts Diagram

  • Title

Cub Cadet BS-493837

Short Block

$

$

Not available

1

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing--Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal--Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet BS-213861

Head--Cylinder

$

$

Not available

7

Cub Cadet BS-272200

Gasket--Cylinder Hd.

$

$

Not available

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Gasket--Valve Cover
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

9A

Cub Cadet BS-272238

Gasket--Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94650

Screw--Breather Mtg.

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-231685

Tube--Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94547

Screw--Cylinder Hd.
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-272199

Gasket--Intake Elbow
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-94526

Screw--Intake Elbow Mounting
(Superseded to BS-691650)

$2.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw--Hex Head
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-224324

Shield--Cylinder

$

$

Not available

307

Cub Cadet BS-94515

Screw--Hex Head

$

$

Not available

337

Cub Cadet 759-3338

Plug--Spark

$3.49

$

In Stock, Qty 14

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-495264

Cap With Dipstick--Oil Filler
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-280393

Seal--Filler Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-495265

Tube--Oil Filler

$

$

Not available

572

Cub Cadet BS-224328

Baffle--Cylinder

$

$

Not available

625

Cub Cadet BS-492717

Tube--Fuel Intake
(Superseded to BS-794305)

$

$

Not available

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

842

Cub Cadet BS-280966

Seal--O-Ring
(Superseded to BS-692296)

$4.99

$

In Stock, only 3 left!

0

847

Cub Cadet BS-495263

Dipstick and Tube Ass'y.--Oil Filler
(Superseded to BS-692047)

$

$

Not available

869

Cub Cadet BS-213512

Seat--Intake Valve
(Superseded to BS-691155)

$8.99

$

In Stock, only 1 left!

0

870

Cub Cadet BS-213513

Seat--Exhaust Valve

$

$

Not available

871

Cub Cadet BS-262001

Guide--Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide--Intake Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493263

Gasket Set

$

$

Not available
