E 421613BVE (80440) - Snapper 42" Rear-Engine Riding Mower, 16hp 42" Rails, Lift Arms, Cam Lift Parts Diagram

42" Rear-Engine Riding Mower, 16hp

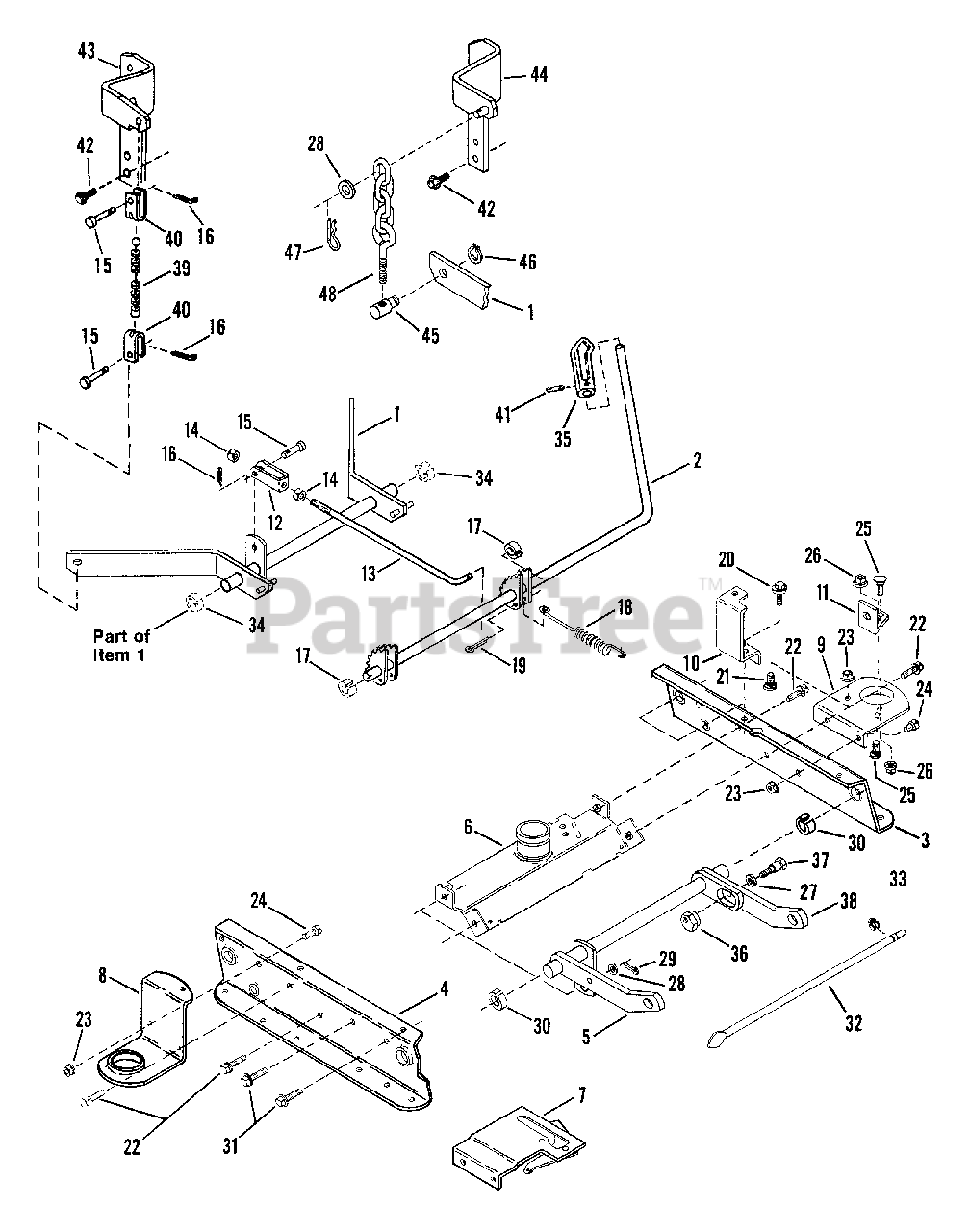

42" Rails, Lift Arms, Cam Lift Parts Diagram

  • Title

1

Snapper 7052394

ASSEMBLY, Rear Lift Arm
(Superseded to 7052394YP)

Note: ('93 Production Models)

$250.99

$

Usually ships in 2-12 days

0

Snapper 7053292

ASSEMBLY, Rear Lift Arm

Note: ('94 Production Models & Later)

$

$

Not available

2

Snapper 7047835

LEVER, Height Adjustment Lift
(Superseded to 7047835YP)

$95.99

$

Usually ships in 2-12 days

0

3

Snapper 7033036

RAIL, Left Half
(Superseded to 7033036YP)

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 7033037

RAIL, Right Half
(Superseded to 7033037YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7040685

STRUCTURE, Front Lift Arm

$

$

Not available

6

Snapper 7040502

BRACE, Weldment
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

8

Snapper 7036090

SPINDLE, Brace (Right)

$

$

Not available

9

Snapper 7038096

SPINDLE, Brace (Left)
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7038104

BRACKET, Cover

$

$

Not available

11

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7031837

CLEVIS,Timing Rod
(Superseded to 7031837YP)

$27.99

$

Usually ships in 2-12 days

0

13

Snapper 7012030

ROD, Timing

$2.99

$

In Stock, Qty 7

0

14

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

16

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7023791

RING, Black
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7011074

SPRING, Cam Lift

$

$

Not available

19

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

20

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

21

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

22

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

24

Snapper 7090292

SCREW, 3/8-24 x 3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

25

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

30

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7022717

SUPPORT, Rod
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

33

Snapper 7017847

RING, Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

Usually ships in 2-12 days

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

38

Snapper 7032997

ARM, Front Lift (Left Side)
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

39

Snapper 7017153

CABLE, 42" Deck 3.75"
(Superseded to 7017153YP)

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 7032276

BRACKET, Cable
(Superseded to 7032276YP)

Note: Was 33313

$12.99

$

In Stock, only 4 left!

0

41

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7090369

SCREW, 5/16-18 x 1" Self-Tapping
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7033224

DECK-WING, Rear (Right)

Note: ('93 Production Models)

$

$

Not available

Snapper 7033223

DECK-WING, Rear (Left)
(Superseded to 7033223YP)

Note: ('93 Production Models) (Not Shown)

$67.99

$

Usually ships in 2-12 days

0

44

Snapper 7041567

DECK-WING, Rear (Right)

Note: ('94 Production Models & Later)

$

$

Not available

Snapper 7041568

DECK-WING, Rear (Left)

Note: ('94 Production Models & Later) (Not Shown)

$

$

Not available

45

Snapper 7027858

PIVOT

$

$

Not available

46

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

47

Snapper 7091310

PIN, 3/32 x 1-3/16 Cotter Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 1 left!

0

48

Snapper 7053297

ASSEMBLY, Bolt & Chain Adjuster
(Superseded to 7053297YP)

$15.99

$

Usually ships in 2-12 days

0
