E 405 (CMXGKAME30A) (25A-E30-791) - Craftsman Edger (2020) Engine Assembly Parts Diagram

Edger

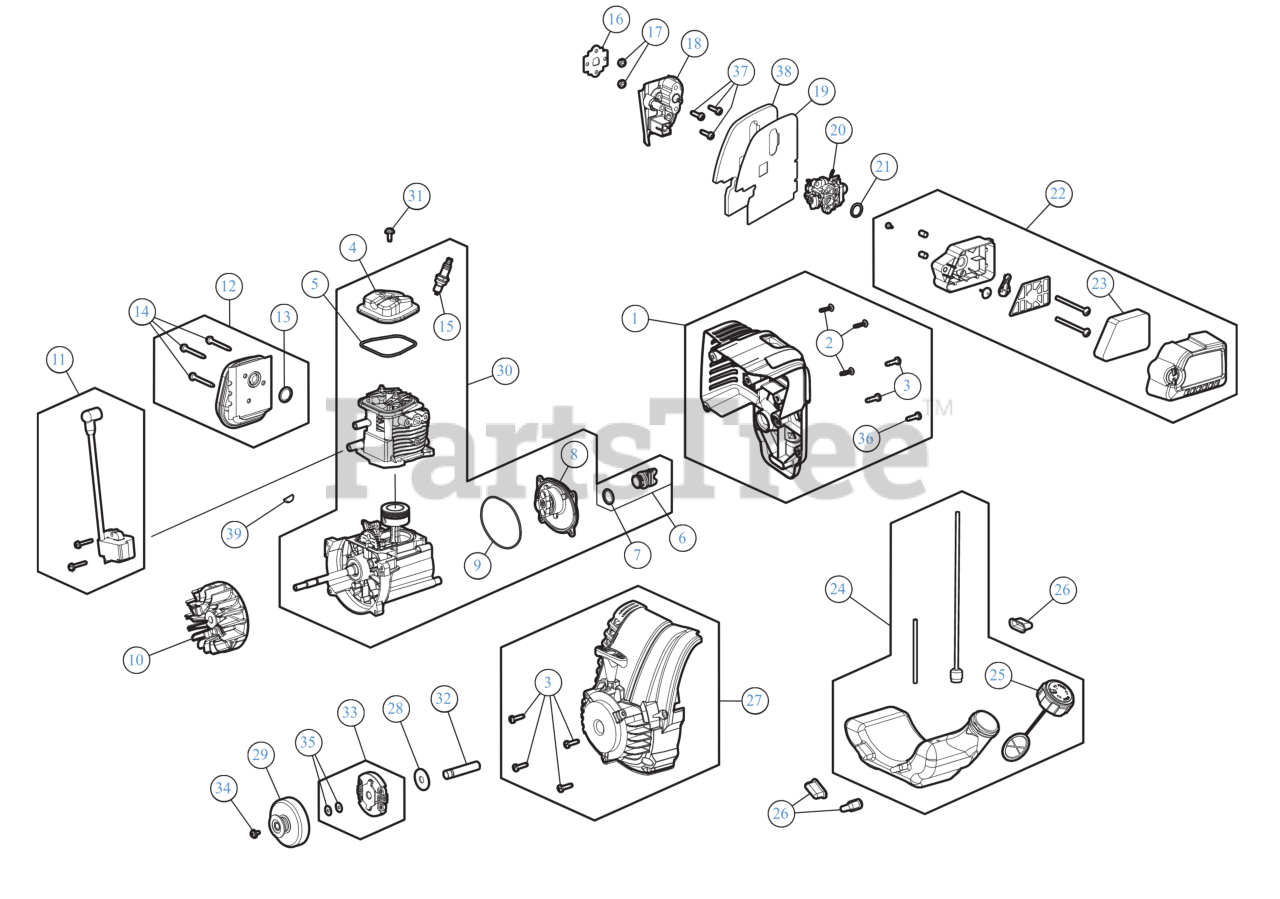

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06134

REAR ENGINE CVR

Note: (Incl. 2, 3 & 36)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

MTD 753-05902

O-RING

$5.49

$

In Stock, Qty 11

0

6

MTD 753-05408

OIL PLUG

Note: (Incl. 7)

$29.99

$

In Stock, only 1 left!

0

7

MTD 791-182290

RING, OIL PLUG (AC

$4.99

$

In Stock, Qty 9

0

8

MTD 753-06259

CRANKCASE COVER

$8.49

$

Usually ships in 3-6 days

0

9

MTD 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

10

MTD 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

Usually ships in 3-6 days

0

11

MTD 753-10444

MODULE (ACX)

$51.99

$

In Stock, only 1 left!

0

12

MTD 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 13 & 14)

$92.99

$

Usually ships in 3-6 days

0

13

MTD 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 8

0

14

MTD 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, Qty 5

0

15

MTD 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 6

0

16

MTD 753-05247

GASKET/INSULATOR

$

$

Not available

17

MTD 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

18

MTD 841-020801S

CARB INSULATOR

$9.99

$

In Stock, only 1 left!

0

19

MTD 753-06948

GASKET

$4.99

$

In Stock, only 2 left!

0

20

MTD 751-16046-4

CARBURETOR

Note: with Primer)

$38.99

$

In Stock, Qty 6

0

21

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 19

0

22

MTD 841-034692S

AIR CLEANER

Note: (Incl. 23)

$12.99

$

In Stock, only 1 left!

0

23

MTD 753-05996

AIR FILTER

$3.49

$

In Stock, Qty 20+

0

24

MTD 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 25)

$21.99

$

In Stock, Qty 10

0

25

MTD 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

Usually ships in 3-6 days

0

26

MTD 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

27

MTD 841P020981S

STARTER HOUSING (LIB RED)

Note: (Incl. 3)

$22.99

$

In Stock, only 1 left!

0

28

MTD 9162-1

WASH, CLUTCH O.D. 1.155 +/- .0

$4.49

$

In Stock, only 3 left!

0

29

MTD 753-06573

CLUTCH DRUM/PULLEY

Note: with Pulley)

$25.99

$

In Stock, only 2 left!

0

30

MTD 841P021441S

SHORT BLOCK

Note: (Incl. 4-9 & 15)

$98.99

$

Usually ships in 3-6 days

0

31

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

32

MTD 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 14

0

33

MTD 753-1238

CLUTCH WITH SPACER

Note: (Incl. 35)

$45.99

$

In Stock, Qty 13

0

34

MTD 791-182468

SCREW 8-32X.375 PH S

$12.99

$

Usually ships in 3-6 days

0

35

MTD 6674

WASH, NORAM CLUTCH

$3.49

$

In Stock, only 1 left!

0

36

MTD 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, only 4 left!

0

37

MTD 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

38

MTD 753-06949

HEAT SHIELD

$5.99

$

In Stock, only 1 left!

0

39

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0
