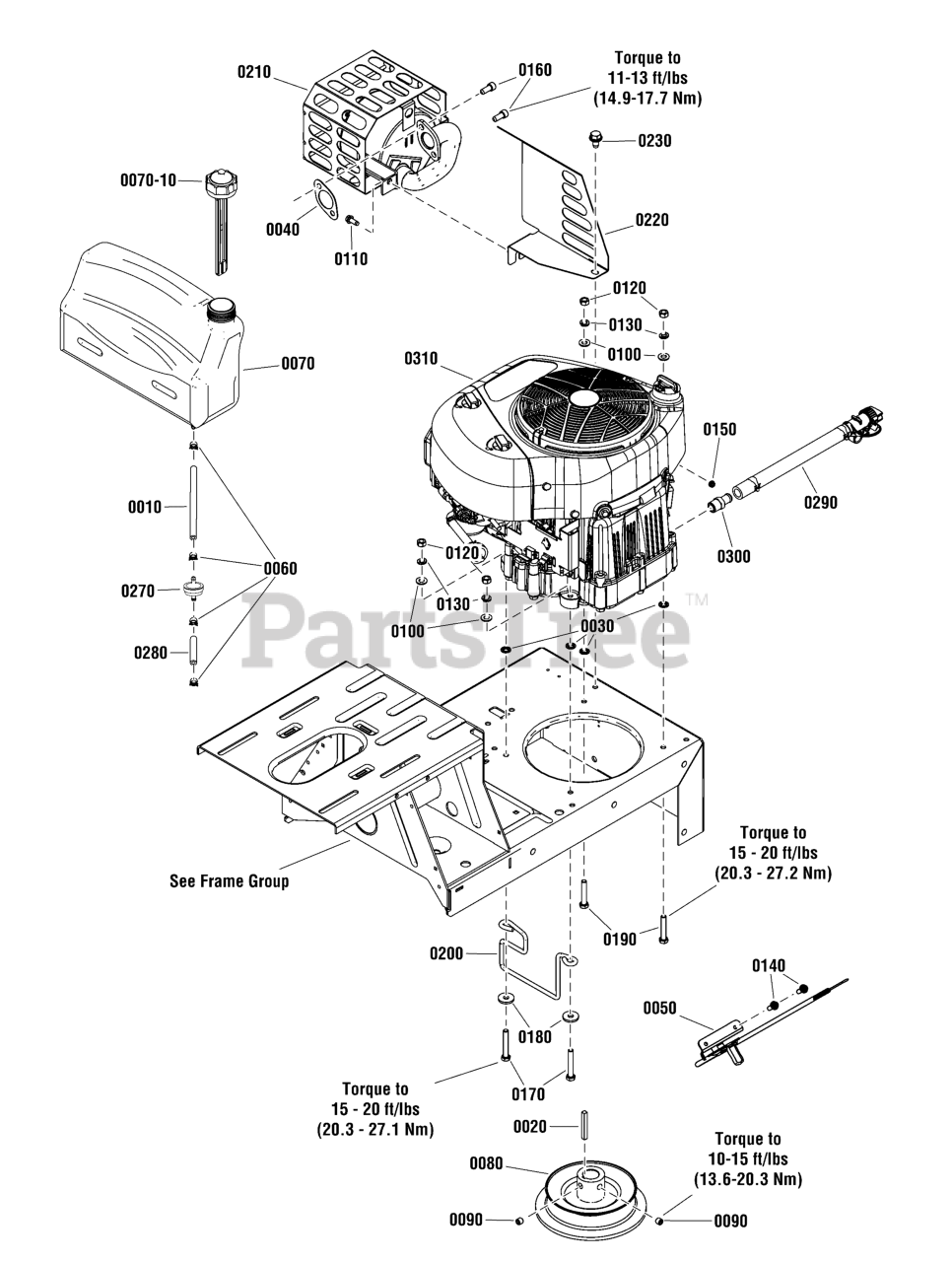

E 3315525BVE (2691383-01) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 1734994SM

HOSE, Fuel, .25" ID, .5" OD, 8.50" LG, Low Perm
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

0020

Snapper 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 6

0

0030

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7105352SM

GASKET, Exhaust

$

$

Currently unavailable

0050

Snapper 7022751YP

CONTROL, Throttle (23.6" long) (Briggs Engines)

$26.99

$

In Stock, only 1 left!

0

0060

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 7052435YP

ASSEMBLY, Fuel Tank with Gauge (Includes Cap w/Gage)
(Superseded to 84002729)

$234.99

$

Usually ships in 2-12 days

0

0070-10

Snapper 7019377YP

CAP, Fuel Tank w/Gauge

$34.99

$

Usually ships in 2-12 days

0

0080

Snapper 7072658YP

DRIVE DISC, Steel, (4.56" P.D., 5.75 O.D. Pulley)

Note: (28" Model)

$125.99

$

In Stock, only 2 left!

0

0080

Snapper 7074187YP

DISC, Steel Drive, (4.0" P.D., 5.15" O.D. Pulley)

Note: (33" Model)

$155.99

$

In Stock, only 3 left!

0

0090

Snapper 7090132YP

SET SCREW, 3/8-16 x 3/8 Hex Recess Set

$3.49

$

In Stock, only 2 left!

0

0100

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0110

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0120

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0130

Snapper 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 704060

SCREW, Hex Washer Head, Self Tap, 10-24 x 1/2

$3.49

$

In Stock, Qty 9

0

0150

Snapper 703127

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 7091738SM

SCREW, Allen Socket Head, 5/16-18 x 3/4, GR8

$4.99

$

In Stock, Qty 14

0

0170

Snapper 704062

BOLT, Serrated Flanged Head, 5/16-18 X 2.0

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 84002839

BOLT, 5/16-18X1.750, Hex Flng

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 7105172BMYP

GUIDE, Belt, 1/4" Wire, 1.85" X 4.74" ID, 3.72" Tall, 5.74" Mount

Note: (28" Model)

$11.99

$

Usually ships in 2-12 days

0

0200

Snapper 7105173BMYP

GUIDE, Belt, 1/4" Wire, 1.45" X 5" ID, 3.72" Tall, 5.74" Mount

Note: (33" Model)

$11.99

$

In Stock, only 1 left!

0

0210

Snapper 706121

MUFFLER w/Guard (Briggs 17.5HP)

$125.99

$

Usually ships in 2-12 days

0

0220

Snapper 706122

SHIELD, Manifold, RER

$48.99

$

Usually ships in 2-12 days

0

0230

Snapper 7091198SM

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

0280

Snapper 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

0290

Snapper 594200

HOSE, Oil Drain

$25.99

$

In Stock, only 1 left!

0

0300

Snapper 796532

CONNECTOR, Hose

$10.99

$

In Stock, only 2 left!

0

0310

Snapper 21R877-0060-B5

* ENGINE, B&S Intek Series 3130, Mod. #21R877-0060-B5

Note: (28" Model)

$

$

Currently unavailable

0310

Snapper 31R777-0043-B5

* ENGINE, B&S Intek Series 4175, Mod. #31R777-0043-B5

Note: (33" Model)

$

$

Currently unavailable
