E 3315525BVE (2691383-01) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Electrical Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

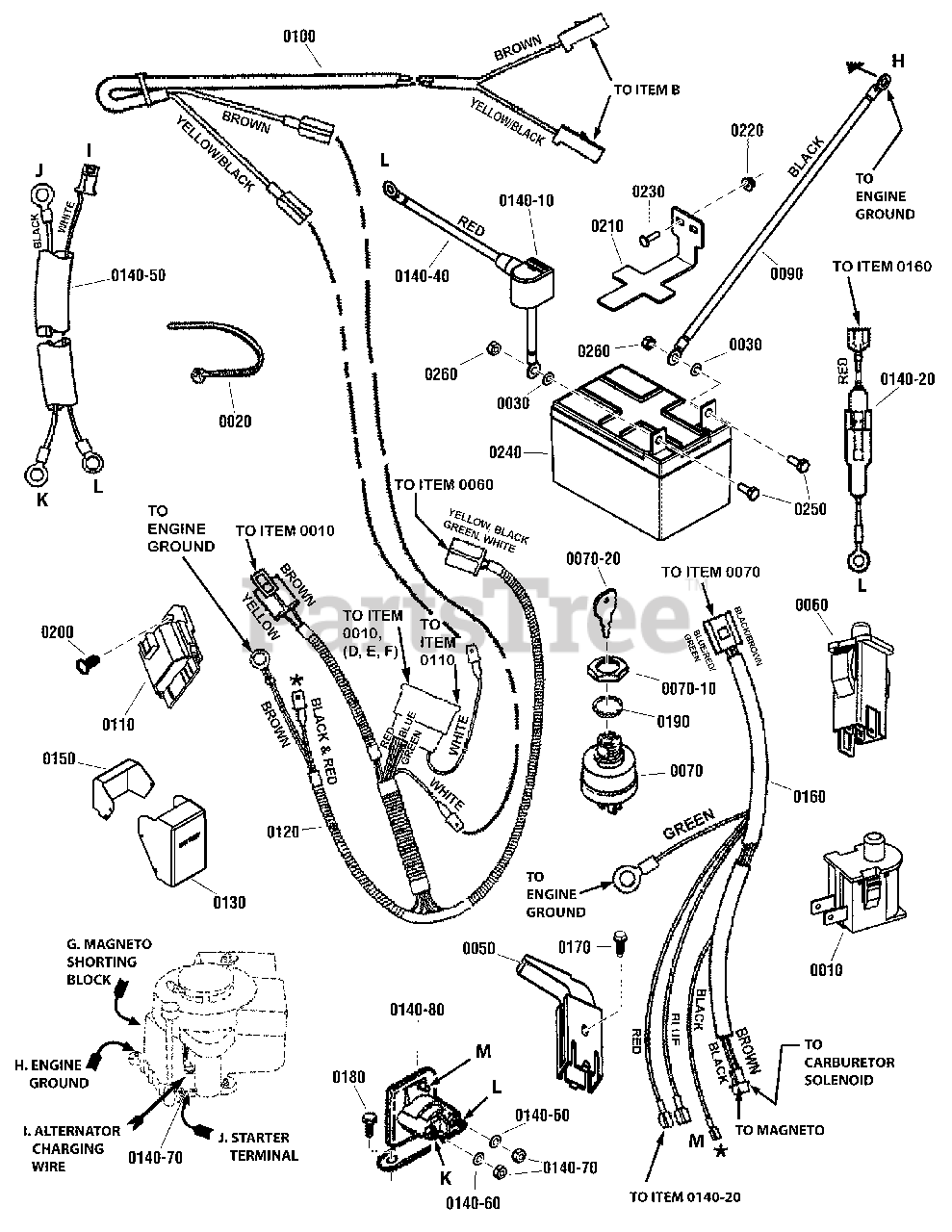

Electrical Group Parts Diagram

  • Title

0010

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0020

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 703826

RETAINER, 1/4", Pushnut

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 7018524YP

SWITCH, Deck Interlock (NO)

$19.99

$

In Stock, Qty 11

0

0060

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$14.99

$

In Stock, Qty 20+

0

0070

Snapper 7026343SM

SWITCH, Ignition-Afterfire Solenoid

$38.99

$

In Stock, Qty 18

0

0070-10

Snapper 7015438YP

NUT, 5/8-32 Hex

$4.49

$

Usually ships in 2-12 days

0

0070-20

Snapper 1737837YP

KEYS, Blister Pk (Kids+MWRS Don't Mix) English/French (set of two, one coated)

$21.99

$

In Stock, only 1 left!

0

0090

Snapper 7028027YP

CABLE, Battery, 8 Gauge, Black, 14", 1/4" Terminals

$10.99

$

In Stock, Qty 7

0

0100

Snapper 7028386YP

HARNESS, Deck Interlock Wiring

$14.99

$

In Stock, only 3 left!

0

0110

Snapper 7028606YP

INTERLOCK MODULE, Briggs

$53.99

$

In Stock, Qty 8

0

0120

Snapper 7028675YP

WIRE HARNESS, B&S (13.5, 14.5 & 17.5)

$53.99

$

Usually ships in 2-12 days

0

0130

Snapper 7028990YP

COVER, Battery

$34.99

$

In Stock, only 1 left!

0

0140-10

Snapper 1677296SM

BOOT, Insulator, Battery Termnal, Red

$6.49

$

In Stock, Qty 11

0

0140-20

Snapper 7016168YP

HOLDER, Fuse (Includes Fuse #7016168YP)

$23.99

$

In Stock, only 3 left!

0

0140-40

Snapper 7019326YP

WIRE, Positive, 17" Long, 8 AWG, 1/4" Terminal Holes, Red

$8.99

$

In Stock, only 1 left!

0

0140-50

Snapper 7022788YP

WIRE HARNESS, Starter

$22.99

$

Usually ships in 2-12 days

0

0140-60

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 7

0

0140-70

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0140-80

Snapper 7075671YP

SOLENOID, 12V, Super Trombetta, RER

$31.99

$

Usually ships in 2-12 days

0

0150

Snapper 7073268YP

COVER, Solenoid

$20.99

$

In Stock, only 2 left!

0

0160

Snapper 7074406YP

WIRE HARNESS, Ignition Switch, 13.5, 14.5, 17.5 B&S

$37.99

$

In Stock, only 1 left!

0

0170

Snapper 7090299YP

SCREW, #10F X1, GR2, Hex Washer Self-Tap, ZP

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 704130

SCREW, 1/4-20 X .500, Hex HD, Self-Tap, Zinc/Clear

$3.99

$

In Stock, Qty 7

0

0190

Snapper 1960547SM

WASHER, 5/8 Internal Tooth Lock

$4.49

$

In Stock, only 3 left!

0

0200

Snapper 7091272YP

FASTENER, 1/4 x 3/4 Ratchet

$3.99

$

In Stock, Qty 13

0

0210

Snapper 7301200BMYP

BRACKET, Battery, RER

$15.99

$

Usually ships in 2-12 days

0

0220

Snapper 703917

NUT, #10-24, Hex Flanged Whiz Lock, ZC

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 7900056YP

BOLT, #10-24 X 3/4, Carriage, GR2, YZ

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 76001188YP

BATTERY, 12V 20HR: 190CCA, Sealed (3.9" W, 5.9" L, 4 to 4.7" H)(Includes Cable Attachment Hdwe.)

$

$

Currently unavailable
