E 331523KVE (7800656) - Snapper 33" Rear-Engine Riding Mower, 15hp Differential, RH Fender & Gear Shifter Group Parts Diagram

33" Rear-Engine Riding Mower, 15hp

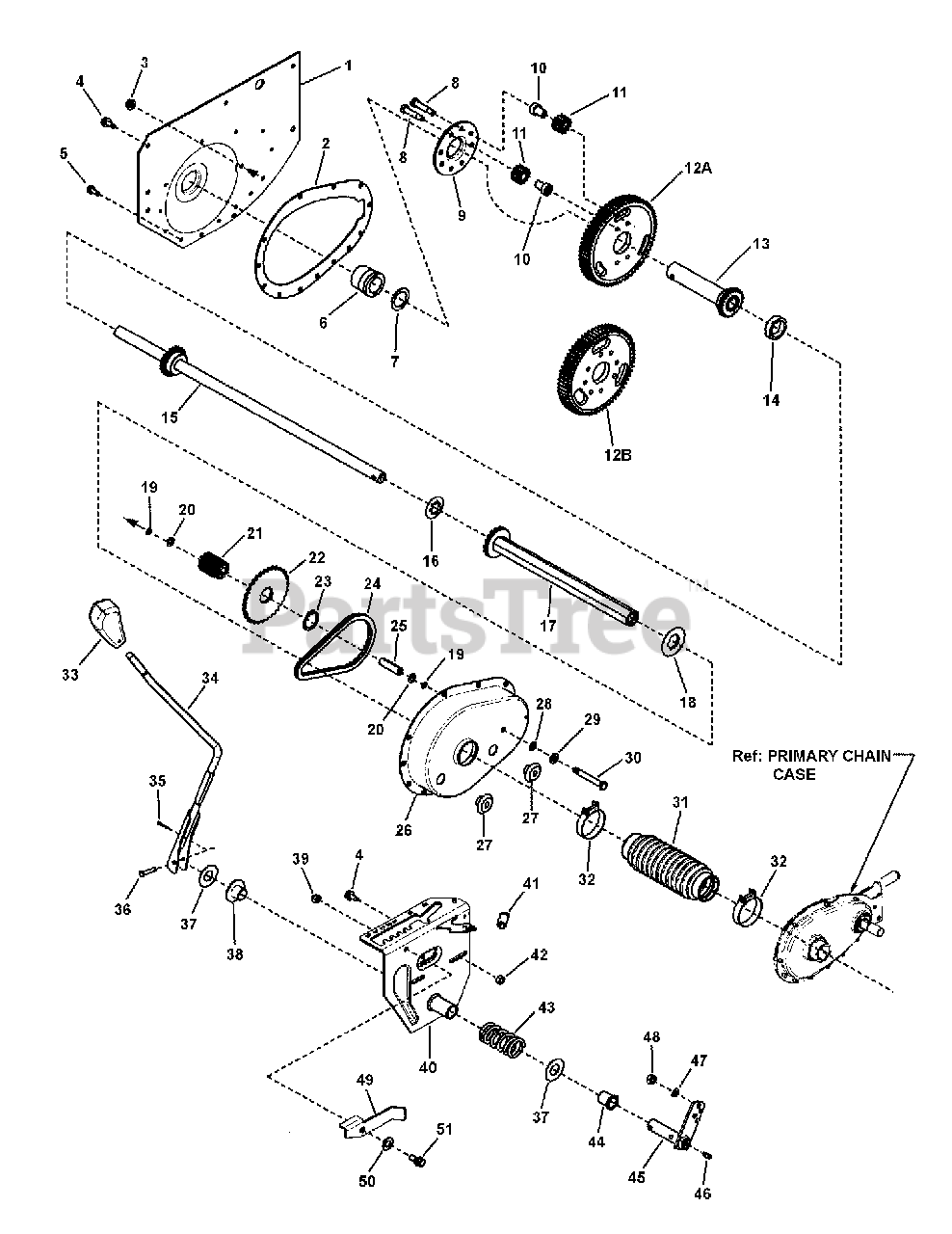

Differential, RH Fender & Gear Shifter Group Parts Diagram

  • Title

1

Snapper 7037280

FENDER, Right Hand (1.62" Dia. Hole)
(Superseded to 7301301YP)

$149.99

$

In Stock, only 1 left!

0

2

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

$24.99

$

In Stock, Qty 20+

0

3

Snapper 7010969

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

5

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

Note: (or 7090362)

$4.49

$

In Stock, Qty 5

0

6

Snapper 7012296

BEARING, Axle (R. H. Fender)
(Superseded to 7012296YP)

Note: (used on Briggs model)

$14.99

$

In Stock, only 4 left!

0

6

Snapper 7054372

ASSEMBLY, Axle Bearing-DX (R. H. Fender) (incl. two DX Bearings, p/n 7074183)
(Superseded to 7054372YP)

Note: (used on Kohler models)

$

$

Not available

7

Snapper 7031079

WASHER, Thrust (1.37" ID, 1.625" OD)
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 7012333

BOLT, 5/16-24 x 1-5/8" Hex Special Lock (Vibresist)
(Superseded to 7012333YP)

Note: (replace after each use)

$4.99

$

In Stock, only 3 left!

0

9

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

Note: (Note: 4 holes offset - align properly to prevent binding.)

$

$

Not available

10

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7021127

GEAR, Differential Pinion (12T 12P)
(Superseded to 7021127YP)

$23.99

$

In Stock, only 3 left!

0

12A

Snapper 7021158

GEAR, 63 Tooth 10 Pitch (4 Hole)
(Superseded to 7021158YP)

Note: (used on Briggs model)

$109.99

$

In Stock, Qty 15

0

12B

Snapper 7027644

GEAR, 63 Tooth 10 Pitch (8 Hole)
(Superseded to 7027644YP)

Note: (used on Kohler models)

$

$

Not available

13

Snapper 7057398

ASSEMBLY, Short Axle, 23T (Includes Gear)
(Superseded to 7600137YP)

$95.99

$

In Stock, only 2 left!

0

14

Snapper 7074431

SPACER, Differential (1.25" ID x .423 Wide)
(Superseded to 7074431YP)

Note: (was 7011026)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7075479

KIT, Long Axle (Includes welded Gear and item #14)
(Superseded to 7075479YP)

Note: (was 7047763)

$136.99

$

In Stock, Qty 12

0

16

Snapper 7011072

WASHER, Thrust, (Hex Flanged)
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7051584

* ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, only 4 left!

0

18

Snapper 7010988

WASHER, Nylon
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 15

0

19

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7011782

WASHER, 5/16" Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7200128

GEAR, 11 Tooth, 10 Pitch
(Superseded to 7200128YP)

Note: (replaces 7010964)

$14.99

$

In Stock, only 1 left!

0

22

Snapper 7021129

SPROCKET, 34T, 3/8P
(Superseded to 7021129YP)

$20.99

$

In Stock, only 2 left!

0

23

Snapper 7010965

RING, 1-3/16" External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

24

Snapper 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

25

Snapper 7021128

SPACER, Differential Case
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

26

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

27

Snapper 7011024

PLUG, 1/2" Cup Insert
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

28

Snapper 7090395

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

29

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 7011042

SCREW, 5/16-24 x 2-5/8" Hex Head Cap
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

31

Snapper 7075115

BOOT, Oil Seal (Short Axle)
(Superseded to 7075115YP)

$10.99

$

In Stock, Qty 20+

0

32

Snapper 7012332

BOOT CLAMP, 2"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

33

Snapper 7023656

GRIP, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

34

Snapper 7059212

WELDMENT, Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 20+

0

35

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: (or 7090037)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

37

Snapper 7031036

WASHER, Thrust (.76" ID, 1.63" OD)
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7019245

BUSHING, 3/4 x 1.62 Flange (Nylon)
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

39

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7058763

** ASSEMBLY, Speed Adjustment Latch
(Superseded to 7600139YP)

$140.99

$

Usually ships in 2-12 days

0

41

Snapper 7026292

SPRING
(Superseded to 7026292YP)

Note: (part of Speed Adjustment Latch Ass'y)

$11.99

$

In Stock, only 3 left!

0

42

Snapper 7090196

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 7010754

SPRING, Shift Detent
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

44

Snapper 7019246

BUSHING, 3/4 x I.O. Flange (Nylon)
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper 7043201

WELDMENT, Arm, Shift Handle (w/grease fitting. Hole)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

46

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

47

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

48

Snapper 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7073289

LEVER, Over-Ride
(Superseded to 7073289YP)

$7.49

$

Usually ships in 2-12 days

0

50

Snapper 7091595

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

51

Snapper 7015761

BOLT, Shoulder, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

--

Snapper 7061017

GREASE, Transmission (24 oz. Required for Differential)
(Superseded to 7061017YP)

$

$

Not available

--

Snapper 7060662

KIT, Differential (8 Pinion w/DX Bearing)
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0

--

Snapper 7060412

KIT, Long & Short Axle (Includes items 13, 14, & 15)
(Superseded to 7060412YP)

$237.99

$

Usually ships in 2-12 days

0
