E 331523KVE (7800119) - Snapper 33" Rear-Engine Riding Mower, 15hp 33" Mower Belt, Brake & Interlock Group Parts Diagram

33" Rear-Engine Riding Mower, 15hp

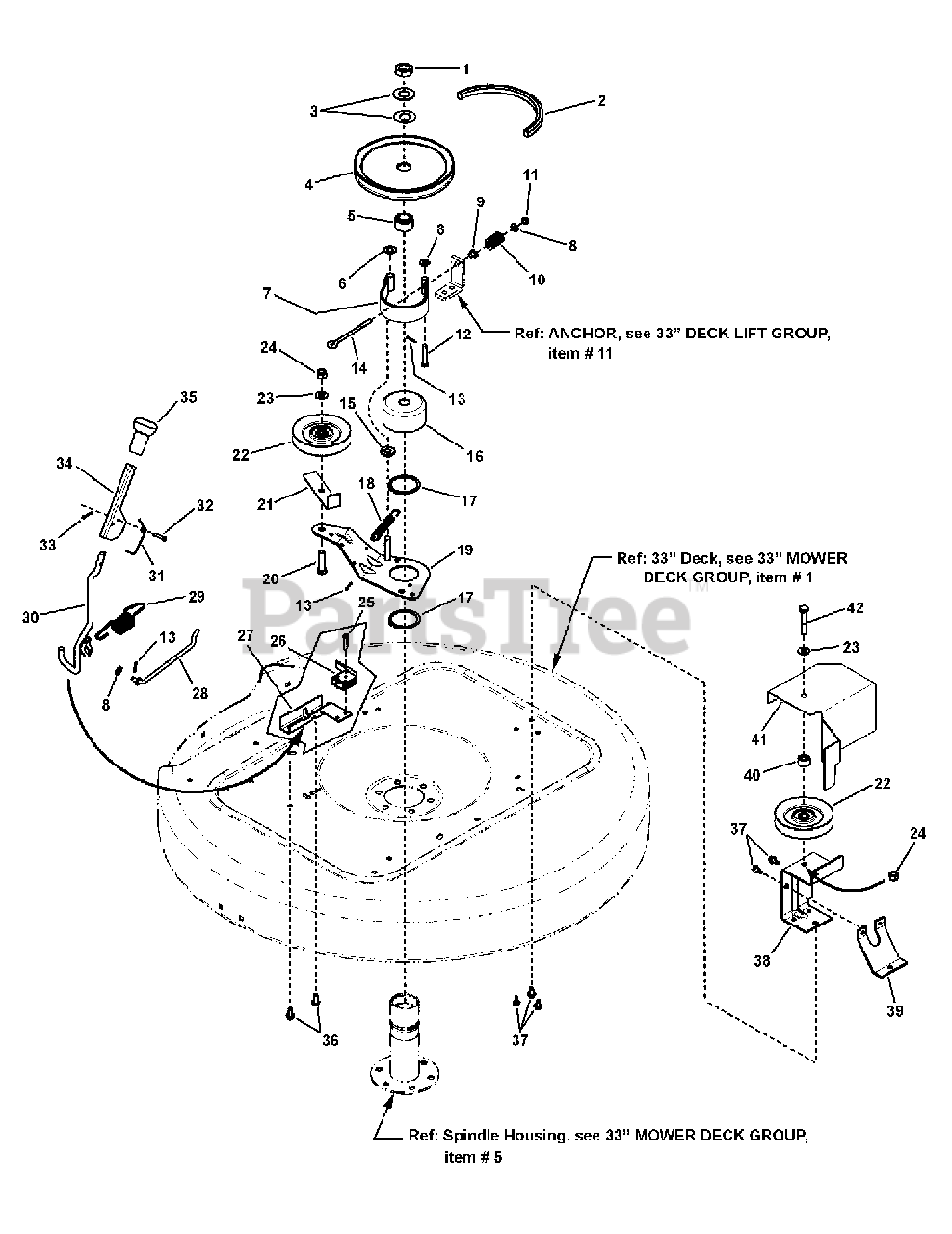

33" Mower Belt, Brake & Interlock Group Parts Diagram

  • Title

1

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

2

Snapper 7043844

* BELT, Drive (73.75" AA Section)
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 20+

0

3

Snapper 7032027

WASHER, 49/64" I.D. x 1-1/2" O.D. Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7018781

PULLEY, Deck
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

5

Snapper 7015290

PULLEY, Hub (Powdered Metal)
(Superseded to 7015290YP)

$6.49

$

In Stock, Qty 10

0

6

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7034852

BAND, Brake (Formed)
(Superseded to 7600133YP)

$41.99

$

In Stock, Qty 7

0

8

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

Note: (or 7090055)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7014343

BUSHING, Flange .27 x .35 x .4
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7046782

SPRING, Rectangular Wire Die, Blue
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

11

Snapper 7090761

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: (or 7091705)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: (or 7090037)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7046677

EYE-BOLT, 1/4-20 x 4"
(Superseded to 7046677YP)

$6.99

$

Usually ships in 2-12 days

0

15

Snapper 7014314

SPACER, .39 x 1.0 x .31 Nylon
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

16

Snapper 7035378

DRUM, Brake Spindle (3" OD, 1.6" Tall)
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

17

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

18

Snapper 7036521

SPRING, Extension, 4" x 1/2" Diameter
(Superseded to 7036521YP)

$7.49

$

In Stock, Qty 6

0

19

Snapper 7047787

WELDMENT, Idler Arm
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0

20

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

21

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

22

Snapper 7029624

PULLEY, Idler (3/8" ID, 4" OD)
(Superseded to 7029624YP)

$35.99

$

In Stock, Qty 7

0

23

Snapper 7091514

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090299

SCREW, #10-32 x 1" Hex Washer Head Self-Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

27

Snapper 7038021

MOUNT, Handle/Switch
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7012055

ROD, Idler Control
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

29

Snapper 7014168

SPRING, Blade Handle
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

30

Snapper 7059254

WELDMENT, Blade Engagement Handle
(Superseded to 7059254YP)

$39.99

$

Usually ships in 2-12 days

0

31

Snapper 7046648

SPRING, Torsion, Flip Handle
(Superseded to 7046648YP)

$5.49

$

In Stock, Qty 5

0

32

Snapper 7091974

PIN, 3/16 x 1" Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

33

Snapper 7090555

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7046567

HANDLE, Blade Engagement (Flip)
(Superseded to 7046567BMYP)

$13.99

$

In Stock, only 1 left!

0

35

Snapper 7046874

GRIP, Handle
(Superseded to 7046874YP)

$9.99

$

In Stock, Qty 9

0

36

Snapper 7090362

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

Note: (or 7091819)

$4.49

$

In Stock, Qty 5

0

37

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

38

Snapper 7035728

BRACKET, Fixed Idler
(Superseded to 7035728BMYP)

$18.99

$

Usually ships in 2-12 days

0

39

Snapper 7036526

BRACE, Fixed Idler Bracket
(Superseded to 7036526BMYP)

$12.99

$

Usually ships in 2-12 days

0

40

Snapper 7100063

SPACER, Idler
(Superseded to 7100063YP)

$4.49

$

Usually ships in 2-12 days

0

41

Snapper 7300545

GUARD, Pulley

Note: (used on 7800119)

$

$

Not available

42

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0
