E 331522KVE (84711) - Snapper 33" Rear-Engine Riding Mower, 15hp Wheels - Rear Parts Diagram

33" Rear-Engine Riding Mower, 15hp

Wheels - Rear Parts Diagram

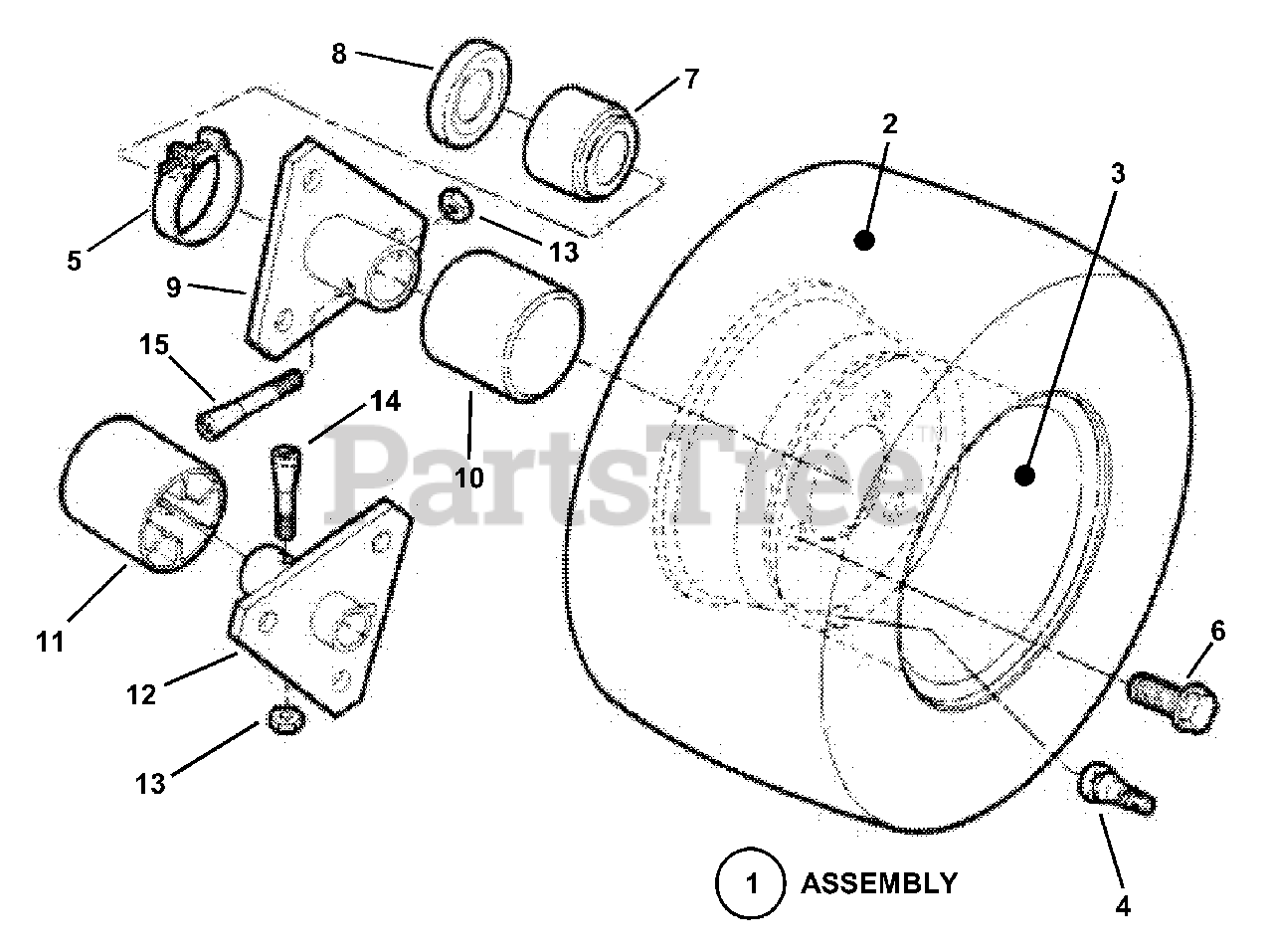

  • Title

1

Snapper 59851

ASSEMBLY, Rear Tire & Rim

Note: (Includes Items 2B, 3B & 4) (33" Models)

$

$

Currently unavailable

2

Snapper 7073584

TIRE, 16-6.50 x 8
(Superseded to 7073584YP)

Note: (33" Models)

$170.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM, Extra Wide
(Superseded to 7012163YP)

Note: Was 17147 (For 16/7.50 x 8 Tire) (33" Models)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7012332

CLAMP, Right Hand (8, 10 & 13 HP)
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 20+

0

Snapper 7014542

CLAMP, Right Hand (12, 14 & 15 HP)

$

$

Not available

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug (6)
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7031732

BOOT, Right Hand (8 & 10 HP)
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

8

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Rear Wheel R. H. (Weldment)
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 14

0

10

Snapper 7023895

CAP, Hub
(Superseded to 7023895YP)

$6.99

$

In Stock, Qty 8

0

11

Snapper 7023522

CAP, Hub (Left Hand)
(Superseded to 7023522YP)

$6.49

$

In Stock, only 2 left!

0

12

Snapper 7040434

HUB, Rear Wheel L.H. (Weldment)
(Superseded to 7040434YP)

$

$

Not available

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0
