E 331416KVE (82420) - Snapper 33" Rear-Engine Riding Mower, 14hp Hardware Bag #61792 Parts Diagram

33" Rear-Engine Riding Mower, 14hp

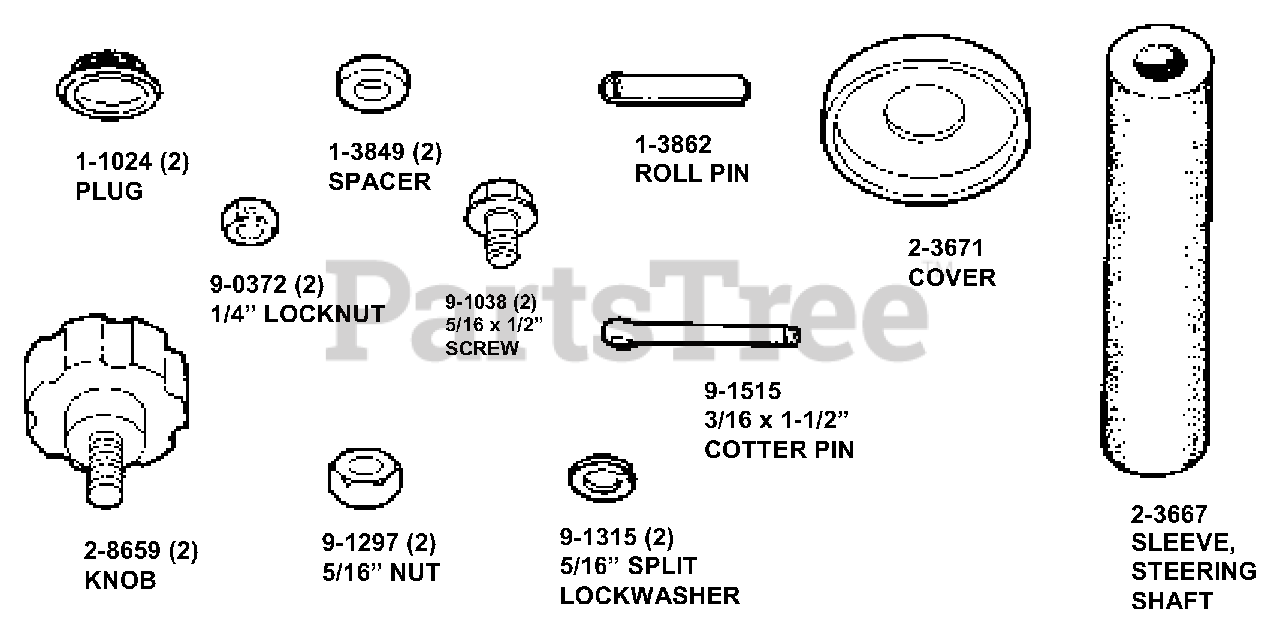

Hardware Bag #61792 Parts Diagram

  • Title

Snapper 7011024

PLUG
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 15

0

Snapper 7090372

1/4" LOCKNUT
(Superseded to 703954)

$

$

Not available

Snapper 7091038

5/16 x 1/2" SCREW
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

Snapper 7023671

COVER
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 5

0

Snapper 7023667

SLEEVE, STEERING SHAFT
(Superseded to 7023667YP)

$8.49

$

In Stock, only 3 left!

0

Snapper 7091315

5/16" SPLIT LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091297

5/16" NUT
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

Snapper 7028659

KNOB
(Superseded to 7028659YP)

$14.99

$

Usually ships in 2-12 days

0

Snapper 7091515

3/16 x 1-1/2" COTTER PIN
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

Snapper 7061792

HARDWARE BAG

Note: (Used on Models: E331416KVE & E331518KVE)

$

$

Not available
