E 331315BVE (80862) - Snapper 33" Rear-Engine Riding Mower, 13hp Front End Steering (25" & 28" Models) Parts Diagram

33" Rear-Engine Riding Mower, 13hp

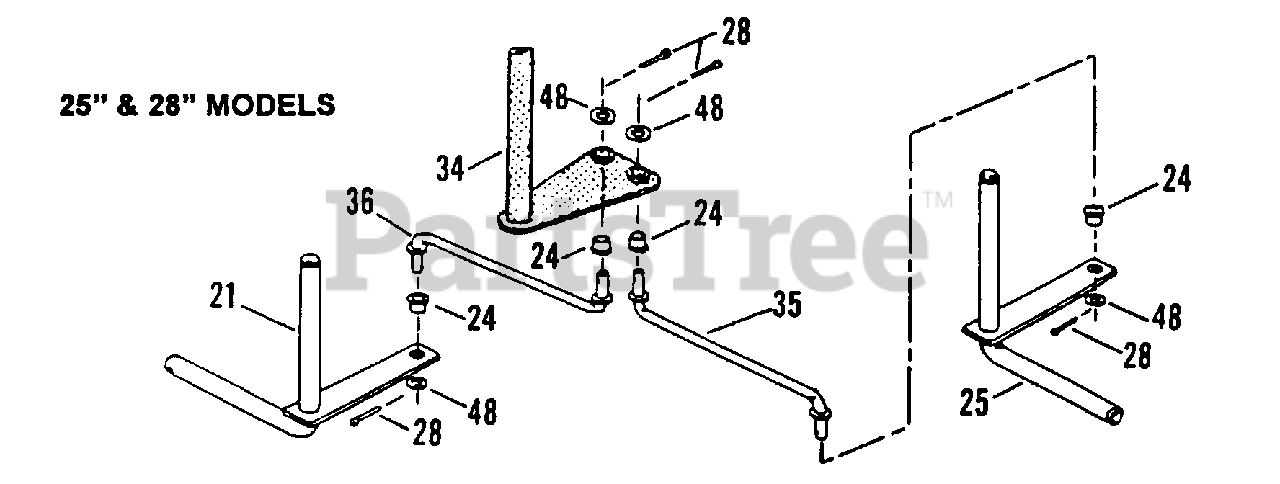

Front End Steering (25" & 28" Models) Parts Diagram

  • Title
21

Snapper 7041688

PIN, Narrow King (Right Side)
(Superseded to 7041688YP)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7041687

PIN, Narrow King (Left Side)
(Superseded to 7041687BMYP)

$58.99

$

In Stock, only 1 left!

0

28

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

34

Snapper 7041381

SHAFT, Steering (Narrow Front End)
(Superseded to 7041381BMYP)

$202.99

$

Usually ships in 2-12 days

0

35

Snapper 7024915

TIE-ROD, Left Side

$

$

Not available

36

Snapper 7024916

TIE-ROD, Right Side

$

$

Not available

48

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0
