E 331315BVE (80862) - Snapper 33" Rear-Engine Riding Mower, 13hp Belts, Brakes, Interlock (25" Models) Parts Diagram

33" Rear-Engine Riding Mower, 13hp

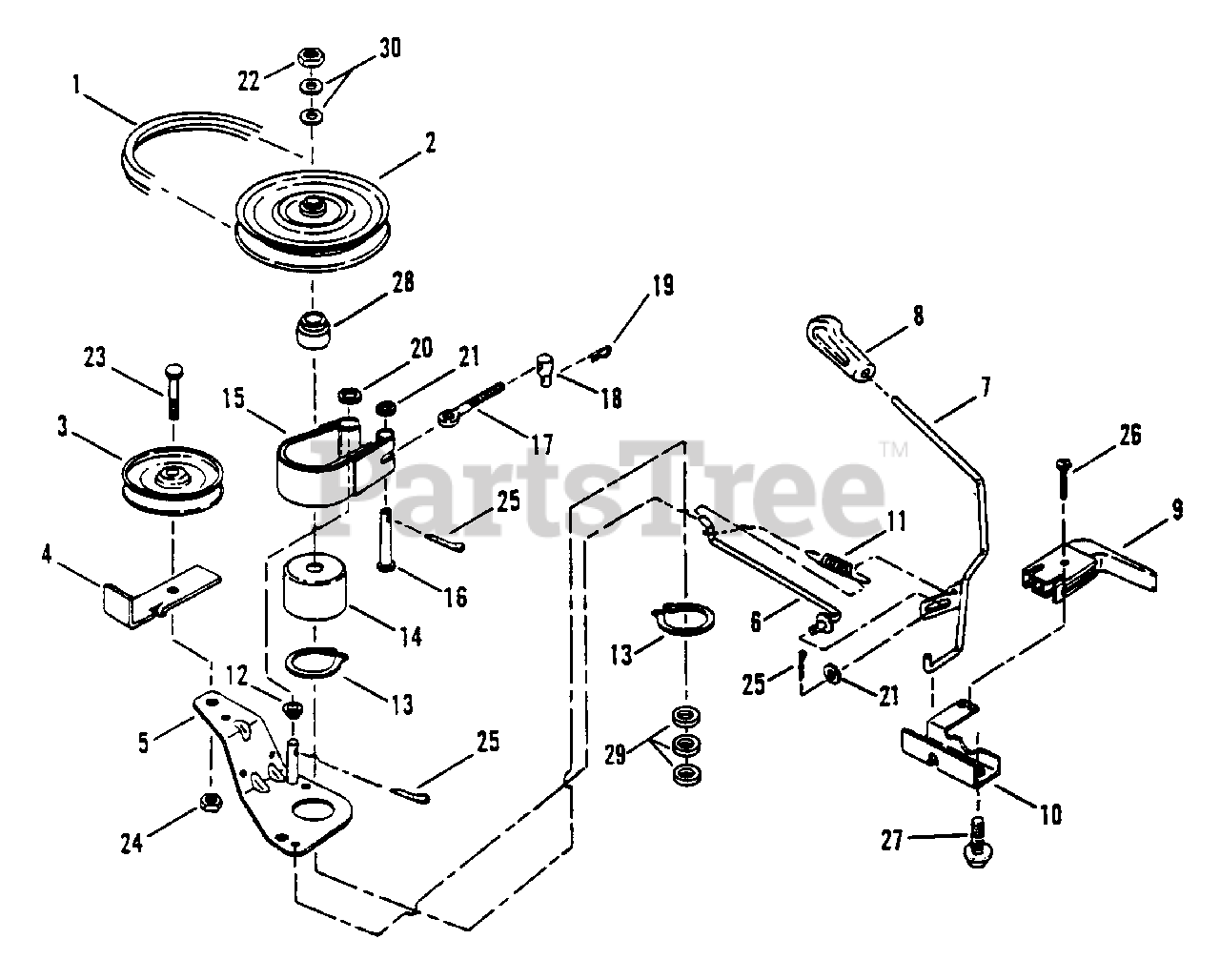

Belts, Brakes, Interlock (25" Models) Parts Diagram

  • Title

1

Snapper 7022252

BELT, Drive
(Superseded to 7022252YP)

$25.99

$

Usually ships in 2-12 days

0

2

Snapper 7018781

PULLEY, Spindle
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

3

Snapper 7029624

PULLEY, Idler
(Superseded to 7029624YP)

$35.99

$

In Stock, Qty 7

0

4

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

5

Snapper 7047787

ARM, Idler
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 7012055

ROD, Idler
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

7

Snapper 7041324

HANDLE, Blade Lever (On - Off)
(Superseded to 7041324YP)

$74.99

$

In Stock, only 1 left!

0

8

Snapper 7023657

GRIP, Handle
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0

9

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

10

Snapper 7038021

MOUNT, Handle
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 7014168

SPRING, Blade Handle
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

12

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

14

Snapper 7035378

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

15

Snapper 7034852

BAND, Brake
(Superseded to 7600133YP)

$41.99

$

In Stock, Qty 7

0

16

Snapper 7014304

PIN, 1/4 x 1 5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7029244

BOLT, 5/16-18 x 3" Eye
(Superseded to 7029244YP)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 7028200

SWIVEL, Adjustable 1.6
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

19

Snapper 7091503

PIN, 3/32 x 1 1/2 Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

23

Snapper 7091517

SCREW, 3/8-24 x 1 3/4" Hex Cap
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7091518

NUT, 3/8-24 Hex Lock
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

25

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7090299

SCREW, #10-32 x 1" Self-Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

28

Snapper 7015290

HUB, Pulley
(Superseded to 7015290YP)

$6.49

$

In Stock, Qty 10

0

29

Snapper 7010935

WASHER, Spindle
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7032027

WASHER, 49/64 x 1-1/2" Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0
