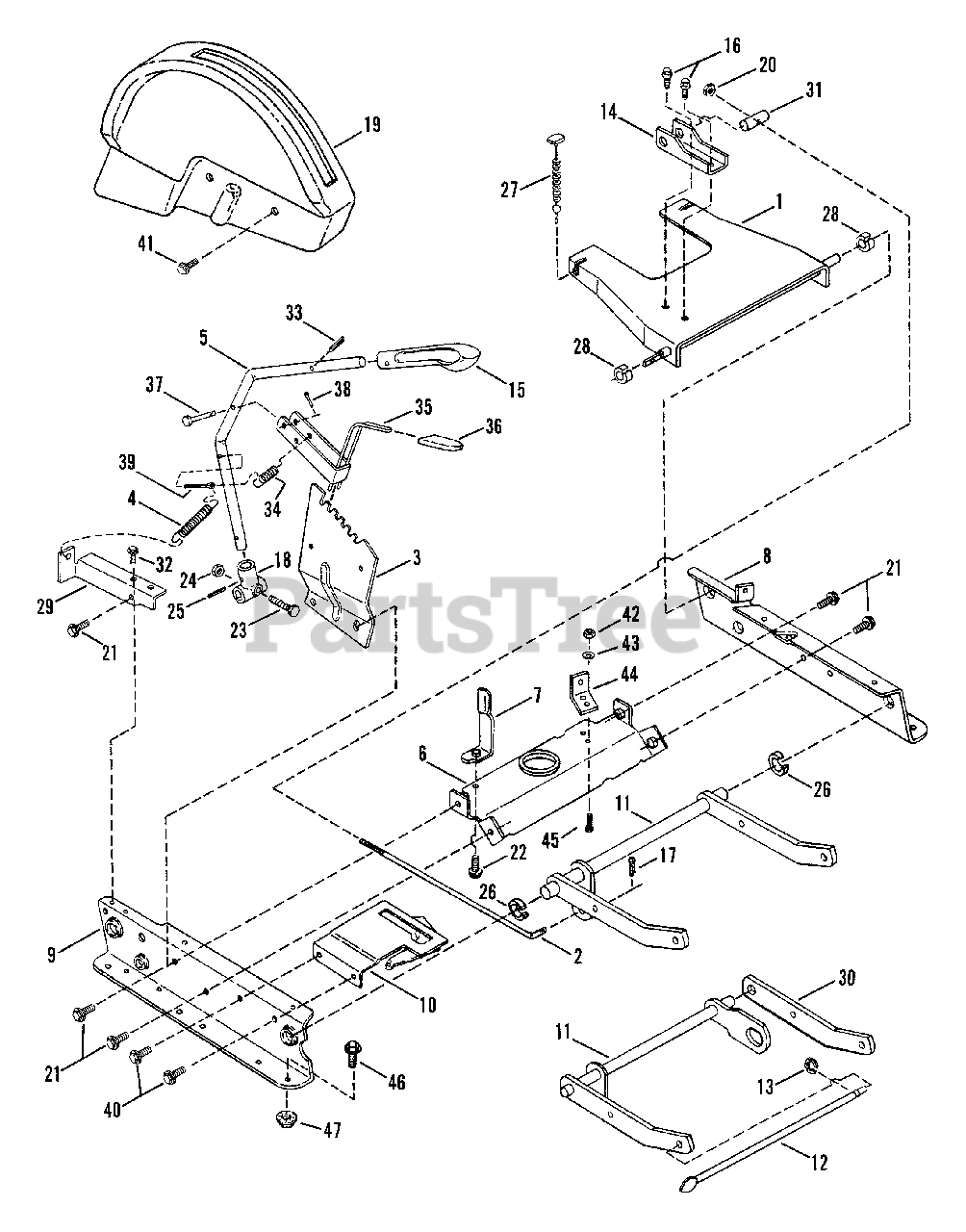

E 331313BE (80545) - Snapper 33" Rear-Engine Riding Mower, 13hp Rails, Lift Arms, Cam Lift (25", 28", 30", 33" Models) Parts Diagram

33" Rear-Engine Riding Mower, 13hp

Rails, Lift Arms, Cam Lift (25", 28", 30", 33" Models) Parts Diagram

  • Title

1

Snapper 7041389

ARM, Rear Lift
(Superseded to 7041389YP)

$179.99

$

Usually ships in 2-12 days

0

2

Snapper 7016122

ROD, Leveling
(Superseded to 7016122YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7033765

QUADRANT, Lift Lever
(Superseded to 7033765YP)

$18.99

$

Usually ships in 2-12 days

0

4

Snapper 7024914

SPRING, Extension
(Superseded to 7024914YP)

$14.99

$

In Stock, only 1 left!

0

5

Snapper 7024878

LEVER, Lift
(Superseded to 7024878YP)

$104.99

$

Usually ships in 2-12 days

0

6

Snapper 7031838

BRACE, Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7031855

GUIDE, Belt
(Superseded to 7031855YP)

$7.49

$

In Stock, only 1 left!

0

8

Snapper 7063062

RAIL, Left Hand
(Superseded to 7063062YP)

Note: Was 33779

$83.99

$

Usually ships in 2-12 days

0

9

Snapper 7036430

RAIL, Right Hand
(Superseded to 7036430YP)

Note: Was 33766

$54.99

$

In Stock, only 1 left!

0

10

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

11

Snapper 7040684

ARM, Front Lift, Non-Adjustable
(Superseded to 7040684YP)

Note: (25" & 28" Models)

$72.99

$

Usually ships in 2-12 days

0

Snapper 7040685

ARM, Front Lift, Adjustable

Note: (30", 33" Models)

$

$

Not available

12

Snapper 7022717

ROD, Support (Front Lift Arm to Front End)
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper 7017847

RING, 7/16 Retaining
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7033008

ARM, Leveling
(Superseded to 7033008YP)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

In Stock, only 1 left!

0

16

Snapper 7091001

SCREW, 5/16-18 x 5/8" Self-Tapping (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

17

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7025049

HUB, Deck Lift
(Superseded to 7025049YP)

$70.99

$

In Stock, only 1 left!

0

19

Snapper 7026394

COVER, Height of Cut
(Superseded to 7026394YP)

$46.99

$

Usually ships in 2-12 days

0

20

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

21

Snapper 7091198

SCREW, 3/8-16 x 5/8" Self-Tapping
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

23

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered Axle
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7090480

NUT, 5/16-24 Hex Flange Lock
(Superseded to 704279)

$3.49

$

In Stock, only 4 left!

0

25

Snapper 7013550

PIN, 3/16 x 1" Roll
(Superseded to 7013550YP)

$4.49

$

In Stock, only 4 left!

0

26

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7027429

CABLE, Rear Deck 5.0", 7 Furrels
(Superseded to 7027429YP)

Note: Was 26274

$12.99

$

In Stock, only 3 left!

0

28

Snapper 7022112

RING, White
(Superseded to 7022112YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7024762

BRACKET, Deck Lift
(Superseded to 7024762YP)

$35.99

$

Usually ships in 2-12 days

0

30

Snapper 7032997

ARM, Front Lift-Left
(Superseded to 7032997YP)

Note: (30" & 33" Models)

$16.99

$

In Stock, only 1 left!

0

31

Snapper 7022082

PIVOT, Leveling
(Superseded to 7022082YP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

33

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7026292

SPRING, Latch
(Superseded to 7026292YP)

$11.99

$

In Stock, only 4 left!

0

35

Snapper 7041470

LATCH
(Superseded to 7041470YP)

$67.99

$

Usually ships in 2-12 days

0

36

Snapper 7026286

GRIP, Lift Latch
(Superseded to 7026286YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7011021

PIN, Clevis
(Superseded to 7023914YP)

$

$

Not available

38

Snapper 7090360

PIN,1/16 x 3/4" Cotter

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7091515

PIN, 3/16 x 1 1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

40

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

41

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Head, Self-Tapping
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

42

Snapper 7091297

NUT, 5/16-24 Hex 2
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

43

Snapper 90321

WASHER, 5/16 Internal Tooth Lock

$

$

Currently unavailable

44

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

$8.99

$

Usually ships in 2-12 days

0

45

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

46

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

47

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

Snapper 7061803
