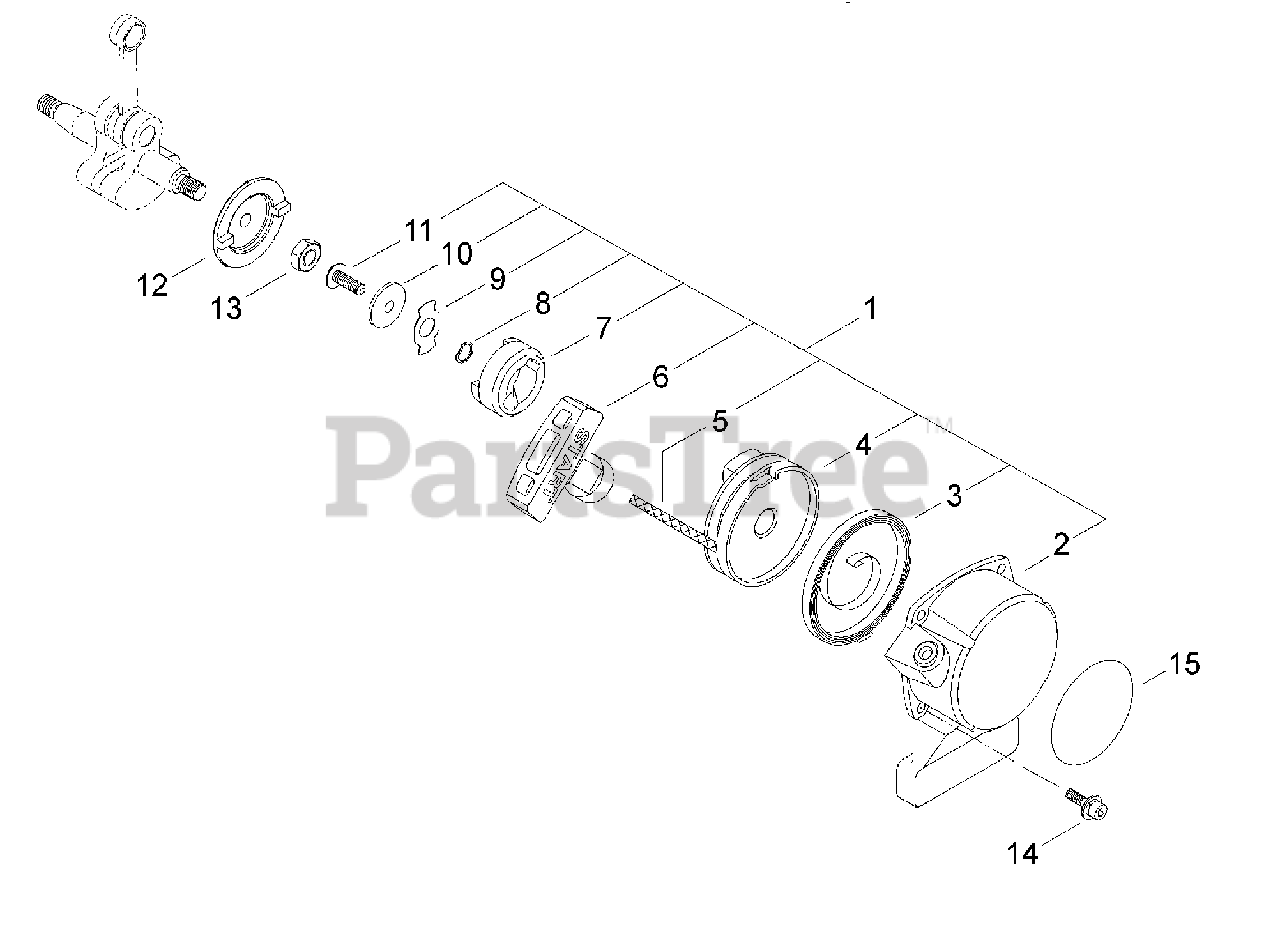

E 3000 - Swisher Edger Starter Parts Diagram

Edger

Starter Parts Diagram

  • Title

1

Echo 62917-75010

STARTER ASSY
(Superseded to A051001480)

$27.99

$

In Stock, only 1 left!

0

2

Echo 62917-75110

CASE, STARTER
(Superseded to A500000610)

$7.99

$

Usually ships in 2-4 days

0

3

Echo 70064-75130

SPRING, REWIND
(Superseded to A504000050)

$12.99

$

In Stock, Qty 10

0

4

Echo 62901-75120

REEL, ROPE
(Superseded to A506000130)

$5.99

$

In Stock, only 1 left!

0

5

Echo 32004-75140

ROPE, STARTER
(Superseded to 70064-75190)

$3.49

$

In Stock, Qty 8

0

6

Echo 32004-75150

GRIP, STARTER
(Superseded to A511000090)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 62901-75310

PAWL, STARTER
(Superseded to A518000020)

$3.99

$

In Stock, only 4 left!

0

8

Echo 70064-75150

WASHER - SPRING
(Superseded to V346000030)

$0.99

$

In Stock, Qty 7

0

9

Echo 72933-75170

RETAINER
(Superseded to A606000000)

$2.49

$

In Stock, only 3 left!

0

10

Echo 72933-75180

WASHER - 5
(Superseded to V303000110)

$1.99

$

In Stock, only 2 left!

0

11

Echo 72933-75160

SCREW - 5
(Superseded to V253000260)

$1.99

$

In Stock, Qty 5

0

12

Echo 70064-75310

PAWL
(Superseded to A520000080)

$3.99

$

In Stock, only 4 left!

0

13

Echo 01511-08051

NUT - 8
(Superseded to 90050300008)

$0.99

$

In Stock, Qty 20+

0

14

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0

15

Echo 62917-91320

LABEL - E4
(Superseded to X503010040)

$2.49

$

Usually ships in 2-4 days

0
