E 300 HD (UT-22086) - Homelite Edger Edger Parts Diagram

Edger

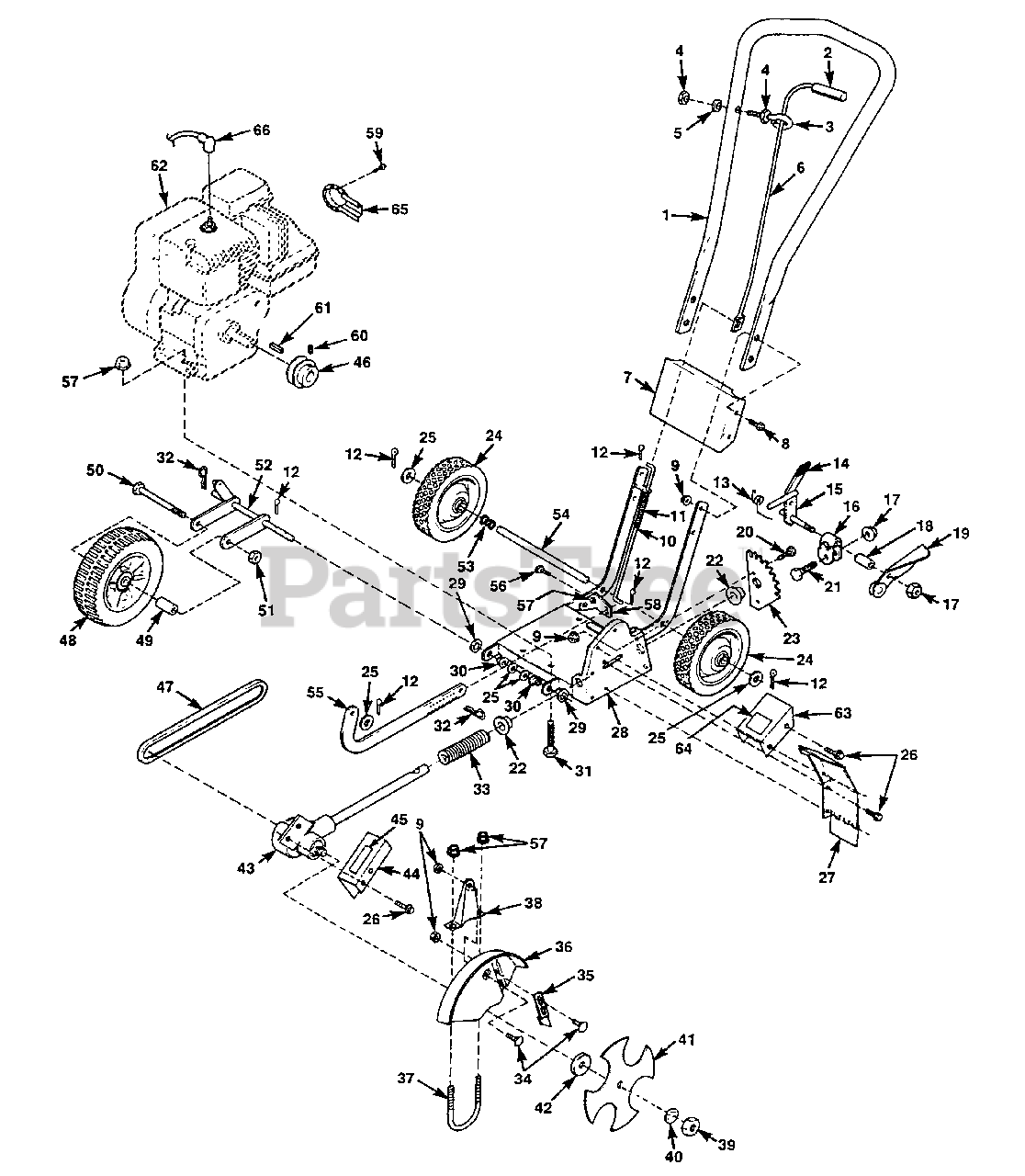

Edger Parts Diagram

  • Title

1

Homelite 012401

HANDLE- Edger

$

$

Not available

2

Homelite 0125920

GRIP- Depth Control

$

$

Currently unavailable

3

Homelite JA354532

EYEBOLT

$

$

Currently unavailable

4

Homelite JA443802

NUT- (1/4-20)

$

$

Currently unavailable

5

Homelite JA446130

WASHER- Lock (1/4")

$

$

Not available

6

Homelite 01243

CONTROL- Depth

$

$

Not available

7

Homelite A0125918

COVER- Handle

$

$

Currently unavailable

8

Homelite 88078

SCREW- Sems (1/4-20 x 1")

$

$

Not available

9

Homelite JA445768

NUT- (1/4-20)

$

$

Not available

10

Homelite 0125917

ROD- Lower Depth Control

$

$

Currently unavailable

11

Homelite 0125925

SPRING- Depth Control

$

$

Currently unavailable

12

Homelite JA460014

PIN- Cotter

$

$

Not available

13

Homelite 0125923

SPRING- Angle Adjusting

$

$

Not available

14

Homelite 0125926

GRIP- Angle Adjusting

$

$

Currently unavailable

15

Homelite 0125914

LEVER- Angle Adjusting

$

$

Currently unavailable

16

Homelite 0125912

CLAMP- Angle Adjusting

$

$

Not available

17

Homelite JA444762

NUT- Hex lock

$

$

Currently unavailable

18

Homelite 0125913

BUSHING- Angle Adjusting

$

$

Not available

19

Homelite 0125915

LEVER- Clutch

$

$

Not available

20

Homelite 82335

SCREW- Sems hex hd.
(Superseded to UP06708)

$4.49

$

Usually ships in 3-7 days

0

21

Homelite JA400264

SCREW- (3/8-16 x 1 1/4")

$

$

Currently unavailable

22

Homelite 0125911

BUSHING- Nylon (3/4")

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 0125909

COMB- Angle Adjusting

$

$

Not available

24

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

25

Homelite 84091

WASHER- Flat

$

$

Not available

26

Homelite JA409907

SCREW- (1/4-20 x 1/2")

$

$

Not available

27

Homelite A0125919

FLAP- Debris

$

$

Not available

28

Homelite 0125901

FRAME- Main

$

$

Not available

29

Homelite 0125927

RETAINER- Bushing

$

$

Not available

30

Homelite 0125921

BUSHING- Nylon

$

$

Not available

31

Homelite 80087

SCREW- Cap hex hd.

$

$

Not available

32

Homelite JA460312

PIN- Cotter hair

$

$

Not available

33

Homelite 0125910

SPRING- Cutter head

$

$

Not available

34

Homelite JA441664

BOLT- Carriage (1/4-20 x 5/8")

$

$

Currently unavailable

35

Homelite 0125907

FINGER- Guide

$

$

Not available

36

Homelite 0125916

GUARD- Blade

$

$

Not available

37

Homelite 0125930

U-BOLT

$

$

Not available

38

Homelite 0125931

BRACKET- Blade Support

$

$

Not available

39

Homelite JA443828

NUT- Jam (5/8-18)

$

$

Currently unavailable

40

Homelite 83095

WASHER- Lock (5/8")

$

$

Currently unavailable

41

Homelite 01245

BLADE- Star

$24.99

$

Usually ships in 3-7 days

0

42

Homelite 0125924

WASHER- Dust Shield

$

$

Not available

43

Homelite 0125906

HEAD- Cutter

$

$

Not available

44

Homelite A0125929

GUARD- Cutter Pulley
(Superseded to A0125937)

$

$

Not available

45

Homelite 01249

DECAL- Warning

$

$

Not available

46

Homelite 0125936

PULLEY- Engine

$

$

Not available

47

Homelite 01247

BELT

$

$

Not available

48

Homelite 01252

WHEEL- Front

$

$

Not available

49

Homelite 0125908

SPACER- Axle

$

$

Currently unavailable

50

Homelite JA400422

SCREW- (1/2-13 x 4")

$6.99

$

Usually ships in 3-7 days

0

51

Homelite JA444758

NUT- Hex centerlock

$

$

Currently unavailable

52

Homelite 0125903

BRACKET- Front wheel

$

$

Currently unavailable

53

Homelite 0125922

SPRING- Axle

$

$

Currently unavailable

54

Homelite 0125905

AXLE- Rear

$

$

Currently unavailable

55

Homelite 0125904

RATCHET- Depth Control

$

$

Currently unavailable

56

Homelite 80083

SCREW- Hex hd.

$

$

Not available

57

Homelite JA445775

NUT- Flanged (5/16-18)
(Superseded to UP06674)

$

$

Not available

58

Homelite 0125902

BRACKET- Depth Control

$

$

Currently unavailable

59

Homelite JA408880

SCREW- Hex hd.

$

$

Currently unavailable

60

Homelite 82390

SCREW- Set
(Superseded to UP07284)

$

$

Not available

61

Homelite 43301A

KEY
(Superseded to UP03767)

$

$

Not available

62

ENGINE

Note: For engine replacement parts, locate the engine brand name, model number and type number and consult the appropriate dealer In your area.

$

$

Not available

63

Homelite A0125928

GUARD- Engine Pulley

$

$

Not available

64

Homelite 01255

DECAL- Safety

$

$

Not available

65

Homelite JA359256

DEFLECTOR

$

$

Not available

66

Homelite A33055

TERMINAL- Hi-Tension

$

$

Not available
