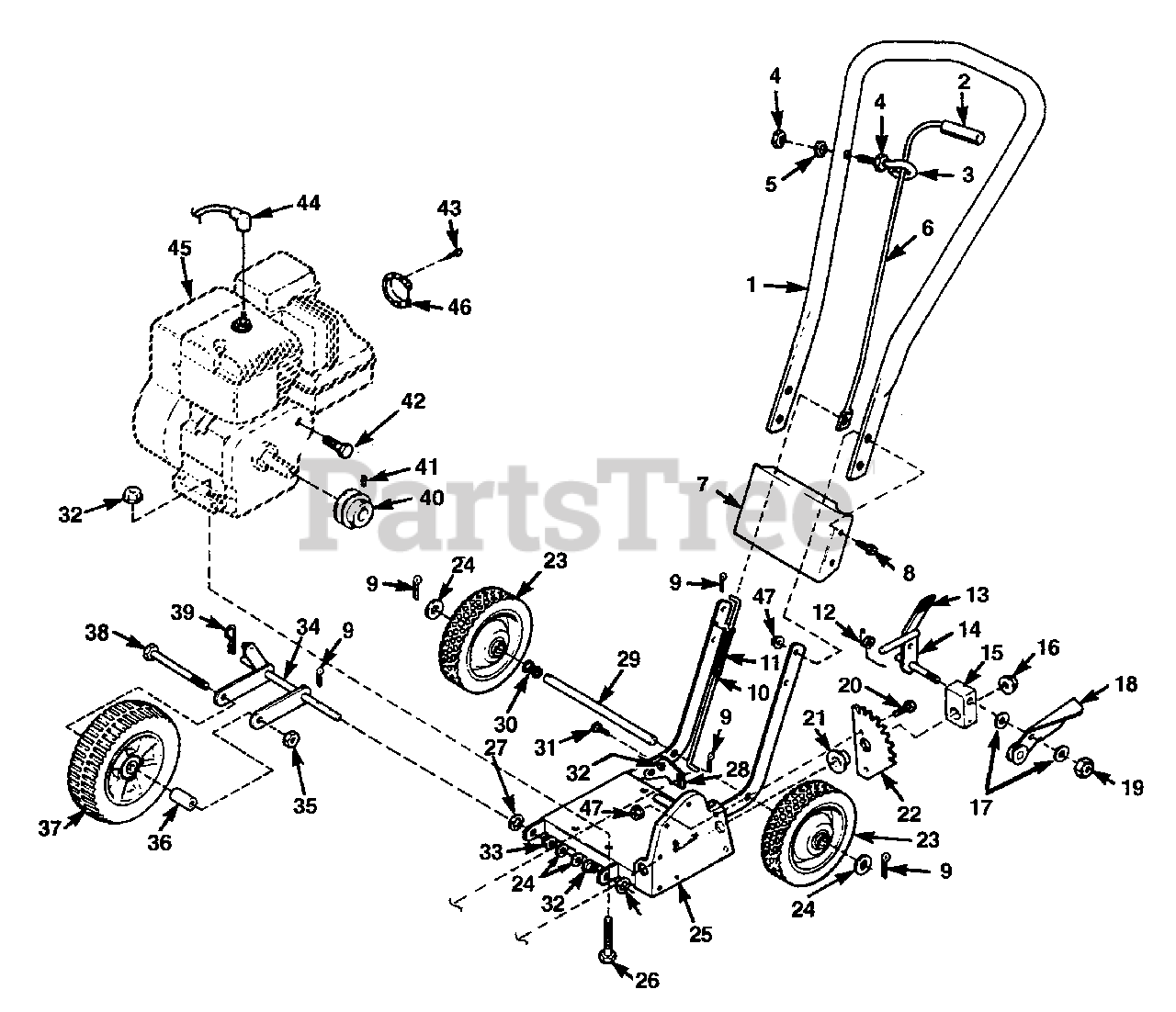

E 300 HD (UT-22086-B) - Homelite Edger Handle, Frame And Controls Parts Diagram

Edger

Handle, Frame And Controls Parts Diagram

  • Title

1

Homelite 012401

HANDLE-Edger

$

$

Not available

2

Homelite 0125920

GRIP-Depth Control

$

$

Currently unavailable

3

Homelite JA354532

EYE BOLT

$

$

Currently unavailable

4

Homelite 81242

NUT-Hex (1/4-20)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 83061

WASHER

$

$

Not available

6

Homelite 01243

CONTROL-Depth

$

$

Not available

7

Homelite A0125918

COVER-Handle

$

$

Currently unavailable

8

Homelite 88078

SCREW-Sems (1/4-20 X 1")

$

$

Not available

9

Homelite 86303

PIN-Cotter

$

$

Not available

10

Homelite 0125917

ROD-Lower Depth Control

$

$

Currently unavailable

11

Homelite 0125925

SPRING-Depth Control

$

$

Currently unavailable

12

Homelite 0125923

SPRING-Angle Adjusting

$

$

Not available

13

Homelite 0125926

GRIP-Angle Adjusting

$

$

Currently unavailable

14

Homelite 0125914

LEVER-Angle Adjusting

$

$

Currently unavailable

15

Homelite 0125939

CLAMP-Angle

$

$

Currently unavailable

16

Homelite 81245

NUT-Hex

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

18

Homelite 0125915

LEVER-Clutch

$

$

Not available

19

Homelite 81218

NUT
(Superseded to UP06646)

$

$

Not available

20

Homelite 82335

SCREW-Sems Hex Hd.
(Superseded to UP06708)

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 0125911

BUSHING-Nylon (3/4")

$5.99

$

Usually ships in 3-7 days

0

22

Homelite 0125909

COMB-Angle Adjusting

$

$

Not available

23

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

24

Homelite 84091

WASHER-Flat

$

$

Not available

25

Homelite 0125901

FRAME-Main

$

$

Not available

26

Homelite 80087

SCREW-Cap Hex Hd.

$

$

Not available

27

Homelite 0125927

RETAINER-Bushing

$

$

Not available

28

Homelite 0125902

BRACKET-Depth Control

$

$

Currently unavailable

29

Homelite 0125905

AXLE-Rear

$

$

Currently unavailable

30

Homelite 0125922

SPRING-Axle

$

$

Currently unavailable

31

Homelite 80085

SCREW (5/16-18 X 1")

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 81235

NUT-Hex w/Washer

$

$

Not available

33

Homelite 0125921

BUSHING-Nylon

$

$

Not available

34

Homelite 0125903

BRACKET-Front Wheel

$

$

Currently unavailable

35

Homelite 81245

NUT-Hex

$4.49

$

Usually ships in 3-7 days

0

36

Homelite 0125908

SPACER-Axle

$

$

Currently unavailable

37

Homelite 01252

WHEEL-Front

$

$

Not available

38

Homelite A400422

SCREW (1/2-13 X 4")

$

$

Currently unavailable

39

Homelite JA460312

PIN-Cotter Hair

$

$

Not available

40

Homelite 0125938

PULLEY-Engine

$

$

Currently unavailable

41

Homelite 82390

SCREW-Set (5/16-18 X 3/8")
(Superseded to UP07284)

$

$

Not available

42

Homelite 0125940

SCREW (5/16-24 X 1/2")

$

$

Currently unavailable

43

Homelite 82474

SCREW-Thread Rolling (8-32 X 1/2")

$

$

Not available

44

Homelite A-33055

TERMINAL-Hi-Tension

$

$

Not available

45

ENGINE

Note: For engine replacement parts, locate the engine brand name, model number and type number and consult the appropriate dealer in your area.

$

$

Not available

46

Homelite 06472

DEFLECTOR

$

$

Not available

47

Homelite JA445768

NUT (1/4-20)

$

$

Not available
