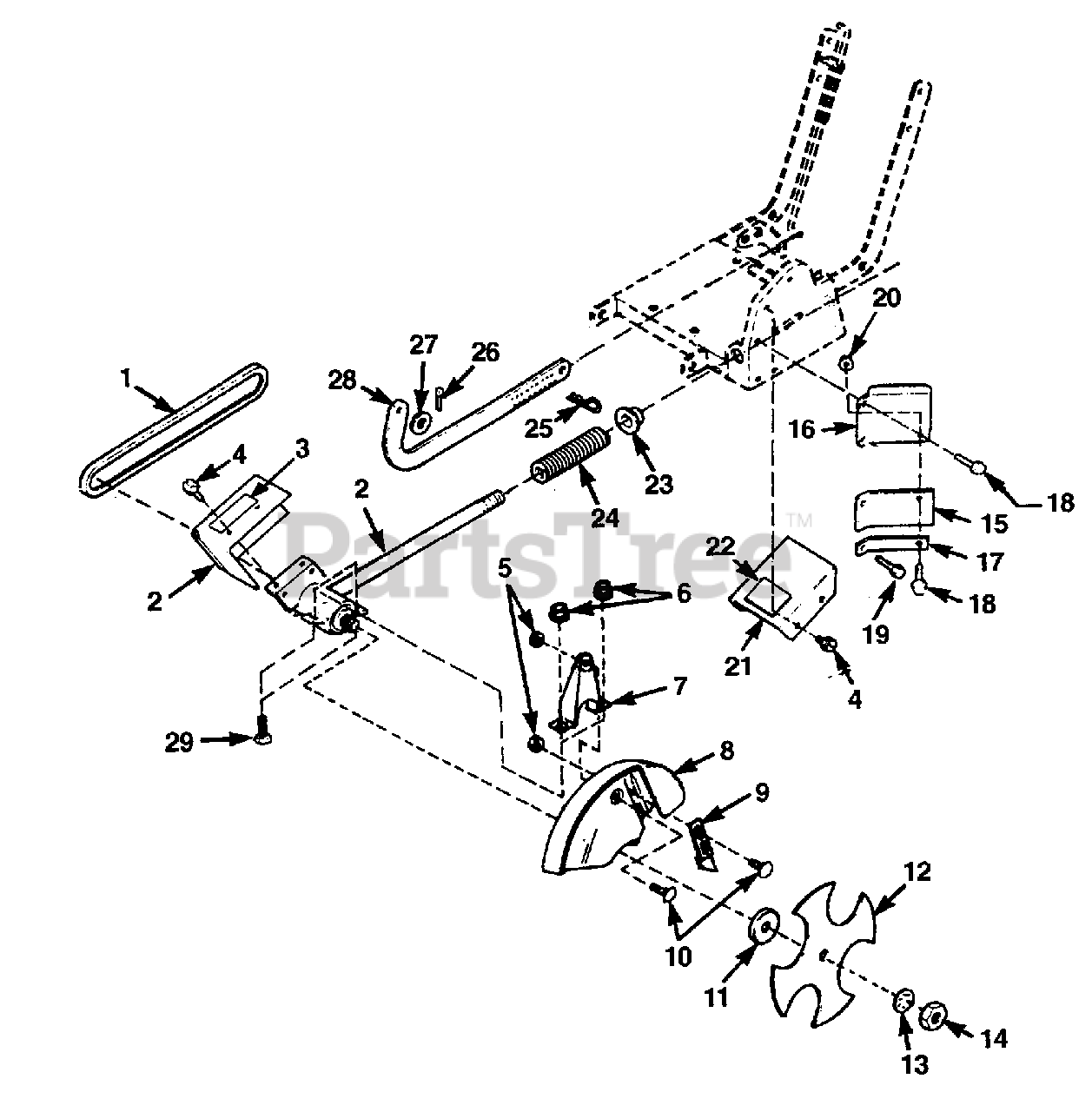

E 300 HD (UT-22086-B) - Homelite Edger Cutter Head Parts Diagram

Edger

Cutter Head Parts Diagram

  • Title

1

Homelite 06741

BELT

$

$

Not available

2

Homelite A0125946

HEAD-Cutter w/Cutter Guard

$

$

Currently unavailable

3

Homelite 01249

DECAL-Warning

$

$

Not available

4

Homelite JA409907

SCREW-(1/4-20 X 1/2")

$

$

Not available

5

Homelite JA445768

NUT-(1/4-20)

$

$

Not available

6

Homelite 81238

NUT-Hex w/Washer

$

$

Currently unavailable

7

Homelite 0125931

BRACKET-Guard Support

$

$

Not available

8

Homelite 0125916

GUARD-Blade

$

$

Not available

9

Homelite 0125907

FINGER-Guide

$

$

Not available

10

Homelite JA441664

BOLT-Carriage (1/4-20 x 5/8")

$

$

Currently unavailable

11

Homelite 0125924

WASHER-Dust Shield

$

$

Not available

12

Homelite 01245

BLADE-Star

$24.99

$

Usually ships in 3-7 days

0

13

Homelite 83095

WASHER-Lock (5/8")

$

$

Currently unavailable

14

Homelite JA443828

NUT-Jam (5/8"-18)

$

$

Currently unavailable

Homelite A0125950

DEBRIS FLAP ASSEMBLY

Note: Includes Items 15 - 20.

$

$

Currently unavailable

15

Homelite 0125948

DEBRIS FLAP ASSEMBLY, FLAP-Debris (Rubber)

$

$

Currently unavailable

16

Homelite 0125947

DEBRIS FLAP ASSEMBLY, SHIELD-Debris

$

$

Currently unavailable

17

Homelite 0125949

DEBRIS FLAP ASSEMBLY, BRACKET-Debris

$

$

Currently unavailable

18

Homelite 80049

DEBRIS FLAP ASSEMBLY, SCREW-Hex Hd. (1/4-20 X 5/8")

$

$

Not available

19

Homelite 80052

DEBRIS FLAP ASSEMBLY, SCREW-Hex Hd. (1/4-20 X 3/4")

$

$

Not available

20

Homelite JA445768

DEBRIS FLAP ASSEMBLY, NUT-(1/4-20)

$

$

Not available

21

Homelite A0125928

GUARD-Engine Pulley

$

$

Not available

22

Homelite 01255

DECAL-Safety

$

$

Not available

23

Homelite 0125911

BUSHING-Nylon

$5.99

$

Usually ships in 3-7 days

0

24

Homelite 0125910

SPRING-Cutter Head

$

$

Not available

25

Homelite JA460312

PIN-Cotter Hair

$

$

Not available

26

Homelite 86303

PIN-Cotter

$

$

Not available

27

Homelite 84091

WASHER-Flat

$

$

Not available

28

Homelite 0125904

RATCHET-Depth Control

$

$

Currently unavailable

29

SCREW-(5/16-18)

$

$

Not available
