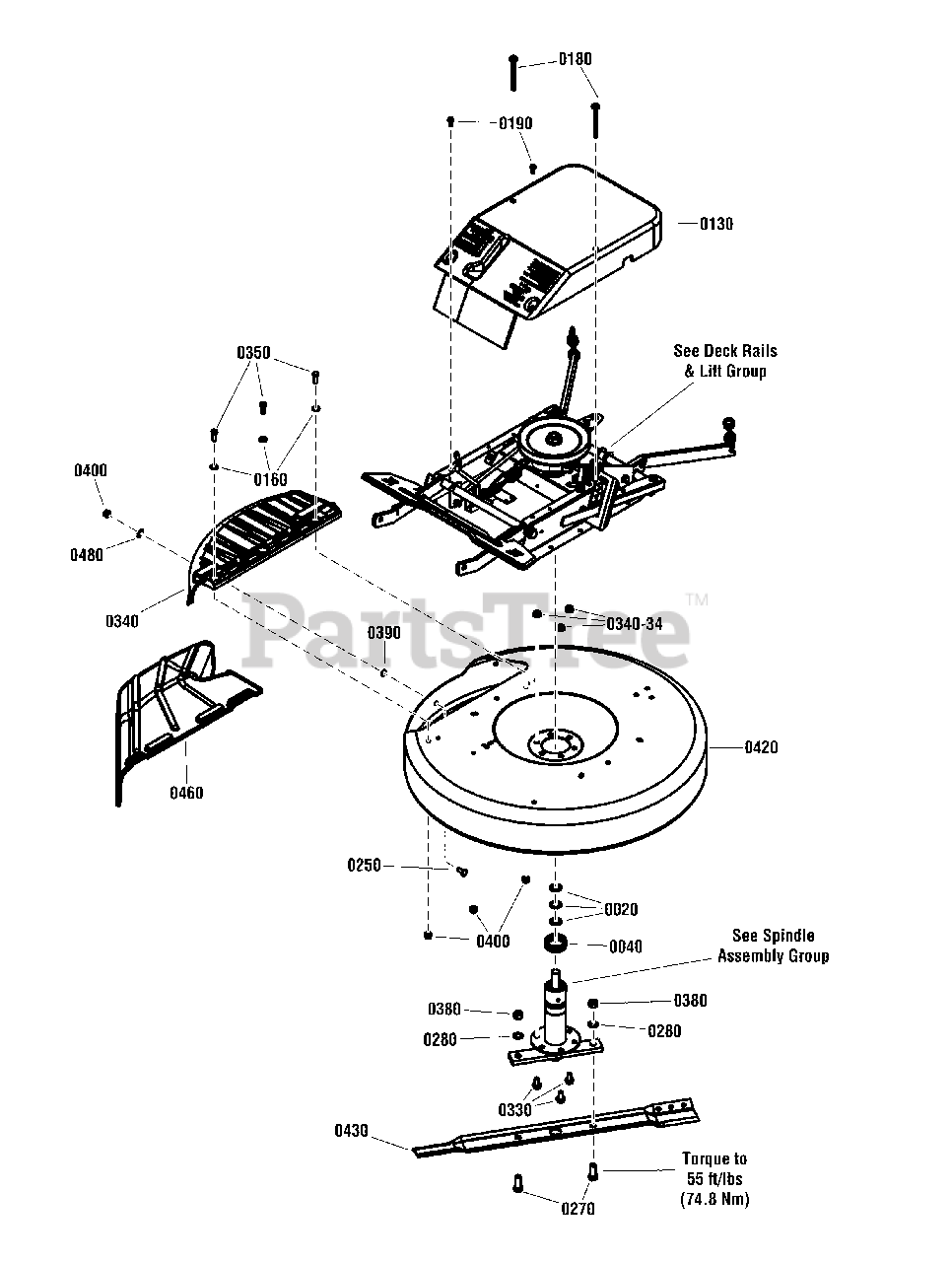

E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Mower Deck, Blade & Spindle Cover Group Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

Mower Deck, Blade & Spindle Cover Group Parts Diagram

  • Title

0020

Snapper 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7012670YP

RING, 2" ID x 3/4 High, Tolerance

$8.49

$

In Stock, Qty 5

0

0130

Snapper 7073434YP

COVER, Spindle
(Superseded to 1760729YP)

$125.99

$

In Stock, only 1 left!

0

0160

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0180

Snapper 7091015YP

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Wa

$5.99

$

Usually ships in 2-12 days

0

0190

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0250

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 7090491YP

SCREW, 1/2-20 x 1-1/4 Hex Head Cap, GR5
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

0280

Snapper 7090509YP

WASHER, 1/2 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 10

0

0330

Snapper 703955

BOLT, 3/8-16X0.75, Serrated Flange, GR5, Zinc/Clea

$4.49

$

In Stock, Qty 6

0

0340

Snapper 7105691YP

ASSEMBLY, Mulching Cover, RER, 28"

$78.99

$

In Stock, only 2 left!

0

0340-34

Snapper 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0350

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clea

$4.99

$

In Stock, Qty 13

0

0380

Snapper 7091939YP

NUT, 1/2-20 Hex, GR 5 ZP

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0400

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0420

Snapper 7061970YP

KIT, Deck Replacement, 28 w/Anti-Scalp, Red

$544.99

$

Usually ships in 2-12 days

0

0430

Snapper 7019515BZYP

BLADE, 28" (Standard 3 Hole Air Lift)

$27.99

$

In Stock, only 4 left!

0

0460

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 2 left!

0

0480

Snapper 703936

WASHER, .325 ID X .850 OD X .041 Thk, Internal External Lock, Type A, ZC/CL

$4.49

$

In Stock, only 2 left!

0
