E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Front End Group - Narrow Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

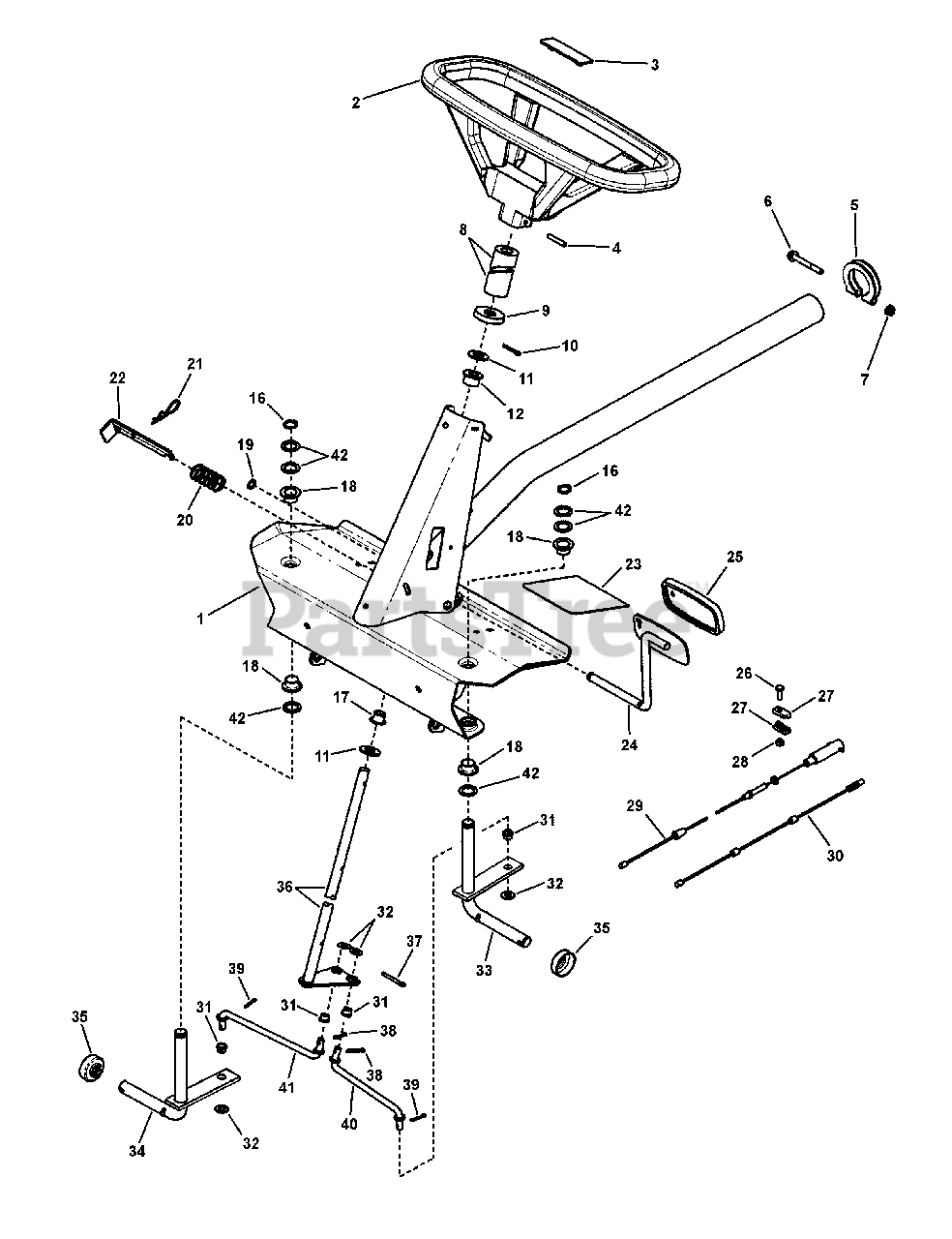

Front End Group - Narrow Parts Diagram

  • Title

1

Snapper 7054378DYP

WELDMENT, Front Axle, Narrow, Red

$

$

Currently unavailable

2

Snapper 7058030YP

ASSEMBLY, Steering Wheel (for 5/8 shaft)

$125.99

$

In Stock, only 1 left!

0

3

Snapper 7023781YP

LOGO, Steering Wheel, Snapper

$15.99

$

In Stock, only 1 left!

0

4

Snapper 7013862YP

ROLL PIN, 1/4 x 1-1/2"

$4.49

$

In Stock, Qty 10

0

5

Snapper 7031100YP

CLAMP, Tube

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7090358YP

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR 5

$4.49

$

In Stock, only 1 left!

0

7

Snapper 704279

NUT, 5/16-24 Hex Flange Lock, BZ

$3.49

$

In Stock, only 3 left!

0

8

Snapper 7023667YP

FOAM COVER, Steering Shaft

$8.49

$

In Stock, only 2 left!

0

9

Snapper 7023671YP

COVER, Steering Shaft

$4.49

$

In Stock, Qty 5

0

10

Snapper 7090296YP

PIN, 3/16 x 1" Cotter

$4.49

$

In Stock, Qty 8

0

11

Snapper 7090183YP

WASHER, .66 x 1.31 x .09 Flat

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7046158YP

BUSHING, Nylon

$4.49

$

In Stock, Qty 20+

0

16

Snapper 703975

RETAINING RING, 3/4" ID, ZC/CL

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7010694YP

BUSHING, Nylon

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7010986YP

BEARING, Nylon

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7010776YP

RING, 1/2 External Retaining

$3.99

$

In Stock, only 2 left!

0

20

Snapper 7015444YP

SPRING, Parking Brake Latch

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7011714YP

HAIR PIN, 2-1/4"

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7038243YP

LATCH, Parking Brake
(Superseded to 7038243DYP)

$18.99

$

Usually ships in 2-12 days

0

23

Snapper 7105147YP

FOOT PAD, Short (5.5 x 4.7)

$6.99

$

In Stock, only 4 left!

0

24

Snapper 7047888BMYP

WELDMENT, Clutch Pedal

$45.99

$

Usually ships in 2-12 days

0

25

Snapper 7011815YP

PAD, Clutch/Brake Pedal

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 703925

SCREW, 1/4-20 x 3/4 Hex Head Cap, GR 5, Zinc/Clear
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7034174YP

CONNECTOR, Cable (Single Part)

$4.99

$

In Stock, only 2 left!

0

28

Snapper 703954

NUT, 1/4-20, Center Lock, GR 5, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 19

0

29

Snapper 7101192YP

CABLE, Brake, Snap-In

$27.99

$

In Stock, Qty 20+

0

30

Snapper 7022449YP

CABLE, Clutch/Brake, 54.32" long

$23.99

$

In Stock, Qty 20+

0

31

Snapper 7013321YP

BUSHING, Tie Rod

$4.49

$

In Stock, Qty 20+

0

32

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7041687BMYP

WELDMENT, King Pin, Left Hand, Black

$58.99

$

In Stock, only 2 left!

0

34

Snapper 7041688BMYP

WELDMENT, King Pin, Right Hand, Black

$

$

Currently unavailable

35

Snapper 7031038YP

CAP, Dust

$4.99

$

In Stock, Qty 11

0

36

Snapper 7046232BMYP

WELDMENT, Steering Shaft, Black

$

$

Currently unavailable

37

Snapper 703983

PIN, 3/16 x 1-1/2 Cotter

$4.49

$

In Stock, Qty 7

0

38

Snapper 703984

PIN, 5/32 x 1 Cotter

$4.49

$

In Stock, Qty 10

0

39

Snapper 703958

PIN, 1/8 X 0.75, Cotter, Zinc/Clear

$4.49

$

In Stock, only 4 left!

0

40

Snapper 7013023YP

TIE ROD, Left Hand (7.41" long)

$13.99

$

In Stock, only 1 left!

0

41

Snapper 7012933YP

TIE ROD, Right Hand (7.41" long)

$18.99

$

Usually ships in 2-12 days

0

42

Snapper 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0
