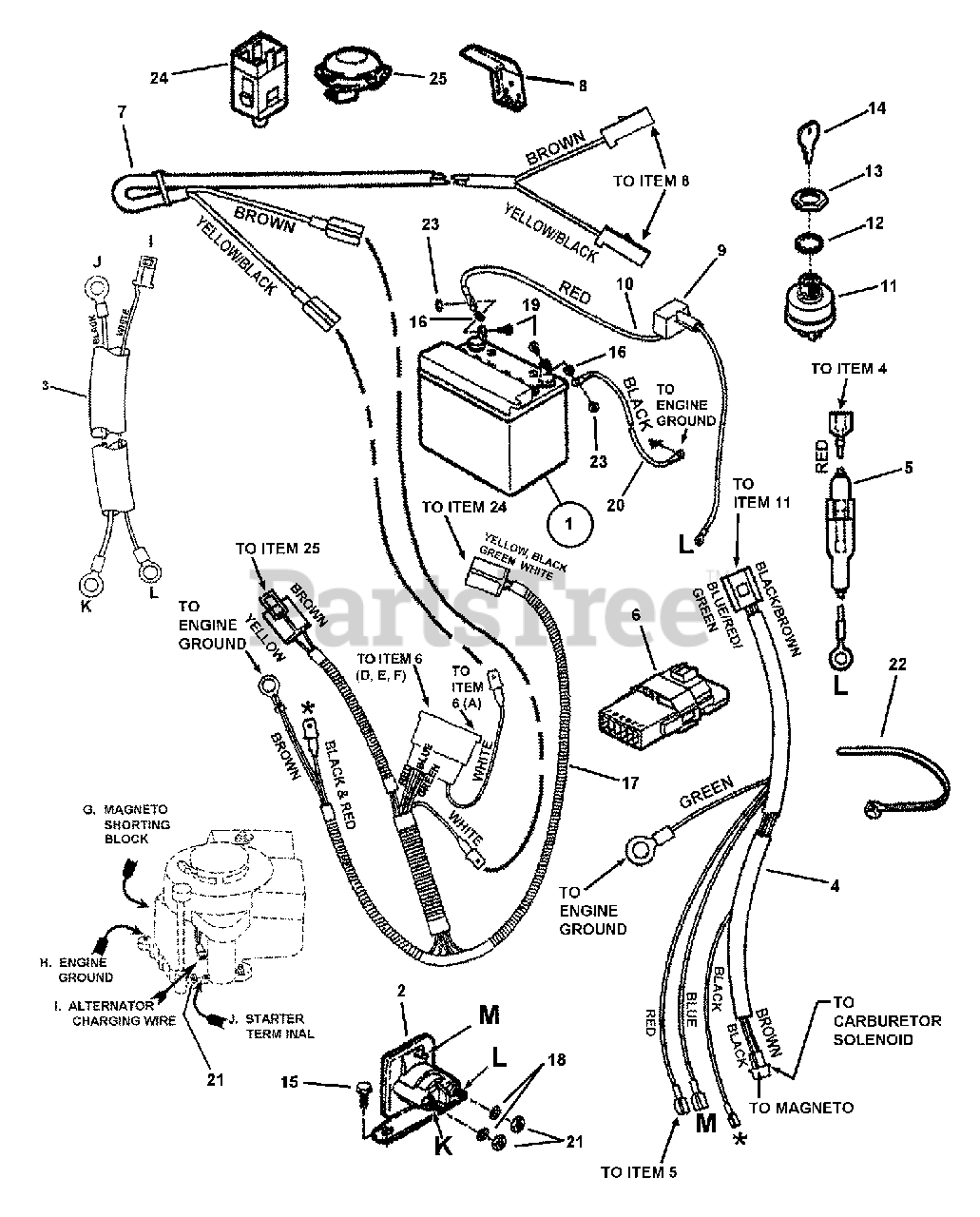

E 2813523BVE (7800501) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Electrical Group (for 13.5 & 14.5 HP Briggs) Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

Electrical Group (for 13.5 & 14.5 HP Briggs) Parts Diagram

  • Title

1

Snapper 7060753

KIT, Battery, 12 Volt, 220CCA, Dry Charge
(Superseded to 7060753YP)

Note: (includes decal (7012358)

$

$

Not available

2

Snapper 7075671

SOLENOID, Super-Trombetta
(Superseded to 7075671YP)

Note: (Was 7018817)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7022788

HARNESS, Starter Wiring (Briggs, AC)
(Superseded to 7022788YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7074406

HARNESS, Ignition Wiring
(Superseded to 7074406YP)

$37.99

$

In Stock, only 1 left!

0

5

Snapper 7016168

HOLDER, Fuse (Includes Fuse)
(Superseded to 7016168YP)

$23.99

$

In Stock, only 3 left!

0

--

Snapper 7016169

FUSE, 10 Amp (Not shown)
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7028606

INTERLOCK MODULE, Briggs
(Superseded to 7028606YP)

$53.99

$

In Stock, Qty 8

0

7

Snapper 7028386

HARNESS (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 3 left!

0

8

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

9

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

10

Snapper 7019326

WIRE, Positive (Red, 17 long)
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

11

Snapper 7026343

SWITCH, Ignition-Afterfire Solenoid
(Superseded to 7026343SM)

$38.99

$

In Stock, Qty 18

0

12

Snapper 7090880

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7011138

IGNITION KEY, Pair
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

14

Snapper 1737837

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/French (set of two, one coated)
(Superseded to 1737837YP)

$21.99

$

In Stock, only 1 left!

0

15

HHCS, 1/4-20 X .500, GR5 Zinc/Clear Hex Washer HD Taptite

Note: (Was 7090539, 7091122)

$

$

Not available

16

Snapper 7012485

RETAINER, 1/4 Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7028675

HARNESS WIRE, Operator Presence Control (OPC)
(Superseded to 7028675YP)

$53.99

$

Usually ships in 2-12 days

0

18

Snapper 7090053

WASHER,1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

19

Snapper 80002437

HHCS, 1/4-20 X 0.625, GR5 Zinc/Clear
(Superseded to 001X38MA)

Note: (Was 7027172, 7090072)

$4.49

$

In Stock, Qty 18

0

20

Snapper 7028027

WIRE, Negative, Black (15 long)
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 7

0

21

Snapper 80003586

NUT, 1/4-20, Zinc/Clear (attaches to starter terminal)
(Superseded to 703127)

Note: (Was 7091576)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

24

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

25

Snapper 7023354

SWITCH, Seat (Normally Closed)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0
