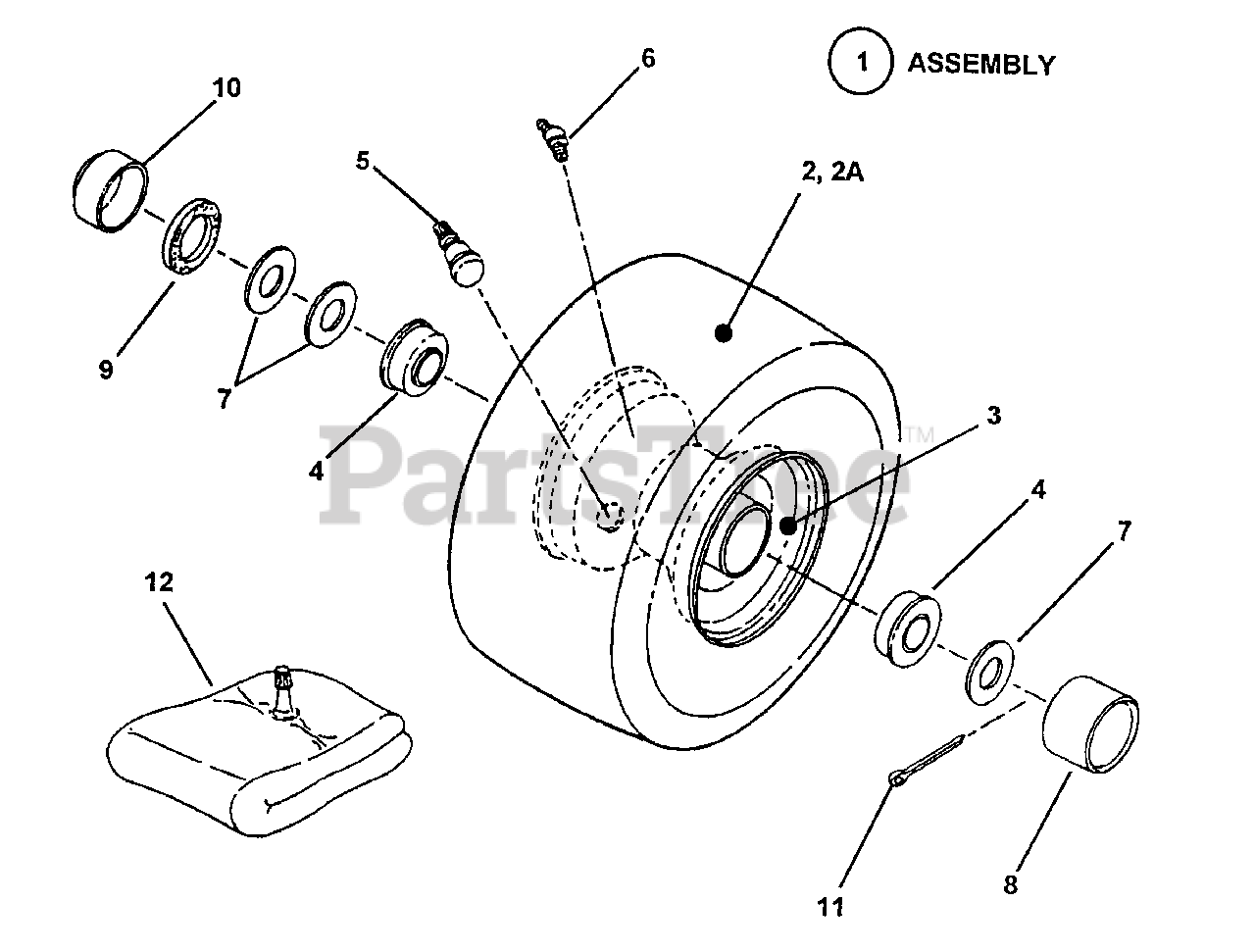

E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Wheels - Front Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Wheels - Front Parts Diagram

  • Title

1

Snapper 7058943

ASSEMBLY, Front Tire & Rim 11x4.00-4
(Superseded to 7058943YP)

Note: (Includes Items 2, 3, 4, 5 & 6, )

$102.99

$

In Stock, only 2 left!

0

1

Snapper 7058944

ASSEMBLY, Front Tire & Rim 11x4.10-4
(Superseded to 7058944YP)

Note: (Includes Items 2A, 3, 4, 5, & 6 )

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 7073563

TIRE, 11X4.00-4, KENDA
(Superseded to 7073563YP)

$68.99

$

Usually ships in 2-12 days

0

2A

Snapper 7073564

TIRE, 11X4.10-4, CARLISLE
(Superseded to 7073564YP)

$61.99

$

Usually ships in 2-12 days

0

3

Snapper 7017146

RIM - Monitor
(Superseded to 7058943YP)

Note: (For 11x4.00-4 Tire)

$102.99

$

In Stock, only 2 left!

0

3

Snapper 7073588

RIM - Carlisle
(Superseded to 7073588YP)

Note: (For 11x4.10-4 Tire)

$66.99

$

Usually ships in 2-12 days

0

4

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7014669

FITTING Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7010935

WASHER, 3/4" I.D.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 12

0

11

Snapper 7091516

PIN, Cotter 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 14

0

12

Snapper 7010821

TUBE, Inner (Optional)
(Superseded to 7010821YP)

$18.99

$

In Stock, Qty 5

0
