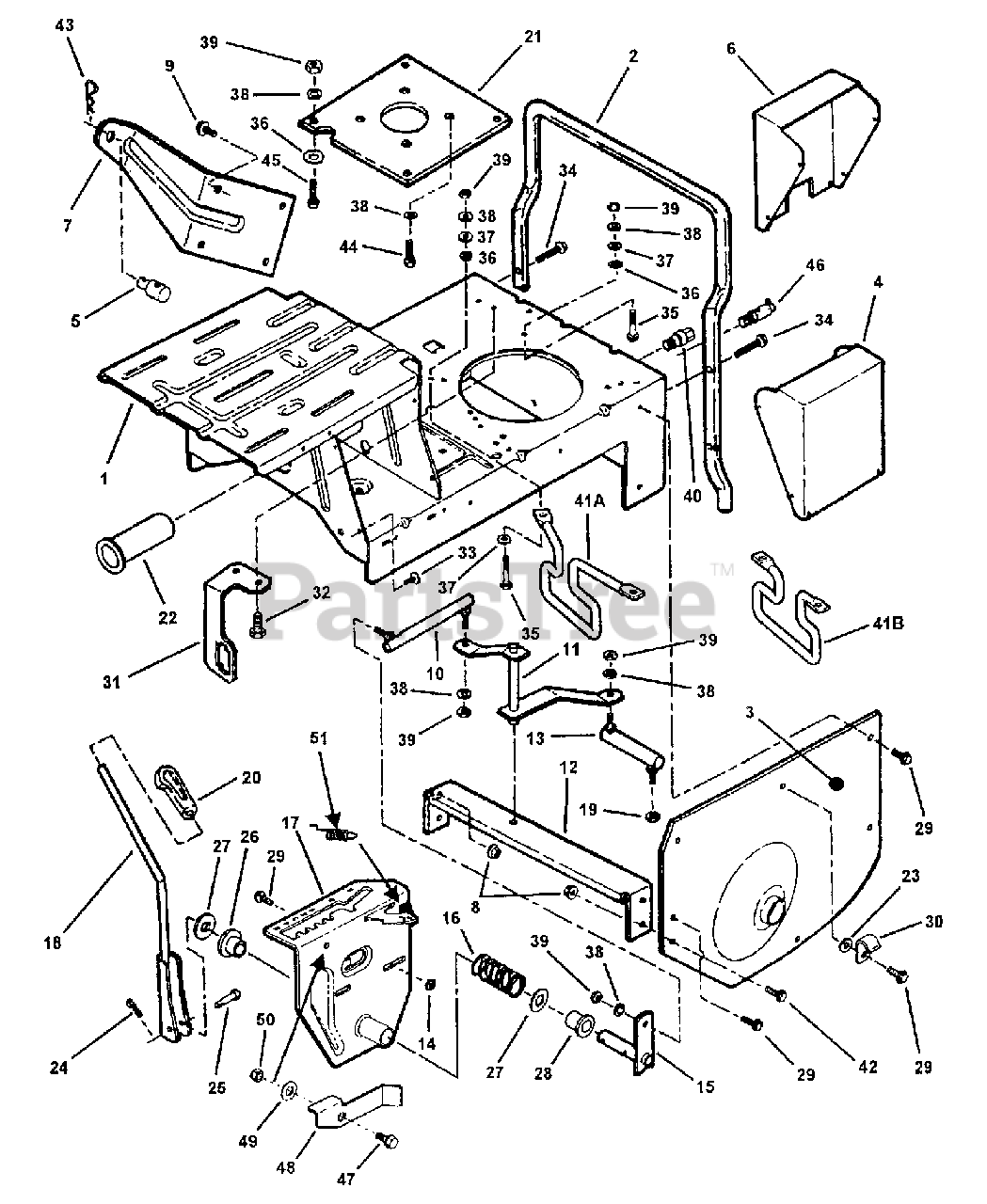

E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Main Case Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Main Case Parts Diagram

  • Title

1

Snapper 7042701

CASE, Main (13HP)

Note: (Standard)

$

$

Not available

1

Snapper 7041293

CASE, Main (15HP)
(Superseded to 7041293YP)

Note: (Commercial)

$433.99

$

Usually ships in 2-12 days

0

2

Snapper 7036367

BUMPER, Rear
(Superseded to 7036367BMYP)

$158.99

$

In Stock, only 1 left!

0

3

FENDER, Left Hand

Note: (See "Chain Case, L. H. Fender" illustration and parts list for related parts )

$

$

Not available

4

Snapper 7028990

COVER, Battery
(Superseded to 7028990YP)

$34.99

$

In Stock, only 1 left!

0

5

Snapper 7028200

SWIVEL
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

6

Snapper 7028989

COVER, Switch
(Superseded to 7073268YP)

$20.99

$

In Stock, only 2 left!

0

7

Snapper 7034299

WING, Rear
(Superseded to 7034299YP)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090793

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7023676

LINK, Shift (Long)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

11

Snapper 7041384

ARM, Shift
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7033799

BRACE, Cross
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7011018

LINK, Shift (Short)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

14

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7040598

ARM, Shift Handle
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

16

Snapper 7010754

SPRING, Shift Handle
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7058763

ASSEMBLY, Shift Detent
(Superseded to 7600139YP)

Note: (Includes spring, P/N 26292)

$140.99

$

Usually ships in 2-12 days

0

18

Snapper 7059212

HANDLE, Shift
(Superseded to 7059212DYP)

Note: Was 40599 (Now 59212 + 23656)

$56.99

$

In Stock, Qty 20+

0

19

Snapper 7010969

NUT, Hex Large Flange Lock 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7023656

KNOB, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

21

Snapper 7074946

PLATE, Engine
(Superseded to 7074946YP)

Note: Was 34093 (Used on Kohler Engine only)

$22.99

$

Usually ships in 2-12 days

0

22

Snapper 7074650

BUSHING, Pilot
(Superseded to 7074650YP)

Note: Was 22509

$12.99

$

In Stock, only 3 left!

0

23

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

26

Snapper 7019245

BUSHING, Nylon
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7019246

BUSHING, Nylon
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

30

Snapper 7012652

CLIP, Wire
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7034724

BRACKET, Switch
(Superseded to 7034724YP)

$19.99

$

Usually ships in 2-12 days

0

32

Snapper 7090981

SCREW, Self Tapping, 10-32 x 1/4"
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

33

Snapper 7091272

FASTENER, 1/4x3/4 Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0

34

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Self-Tapping
(Superseded to 704318)

$4.49

$

In Stock, only 4 left!

0

35

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

36

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7022486

DRAIN, Oil (Short)
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

41A

Snapper 7036419

GUIDE, Belt (9.48" Bolt Pattern Bent Top)
(Superseded to 7036419YP)

Note: (Kohler Models)

$39.99

$

Usually ships in 2-12 days

0

41B

Snapper 7035971

GUIDE, Belt (5.74" Bolt Pattern, 5.625" Belt Gap)
(Superseded to 7035971YP)

Note: (28" Models)

$26.99

$

Usually ships in 2-12 days

0

42

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

43

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

44

Snapper 7077692

BOLT, M8-1.25 x 25mm, Self-Tap (Kohler)
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

46

Snapper 7027972

ASSEMBLY, Oil Valve (15HP Kohler)
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

47

Snapper 7015761

BOLT, 5/16-18 Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

48

Snapper 7073289

LEVER, Over-Ride
(Superseded to 7073289YP)

$7.49

$

Usually ships in 2-12 days

0

49

Snapper 7091595

WASHER, 7/16" Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

50

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7026292

SPRING
(Superseded to 7026292YP)

$11.99

$

In Stock, only 3 left!

0
