E 281318BE (84267) - Snapper 28" Rear-Engine Riding Mower, 13hp Drive Disc Assembly Parts Diagram

28" Rear-Engine Riding Mower, 13hp

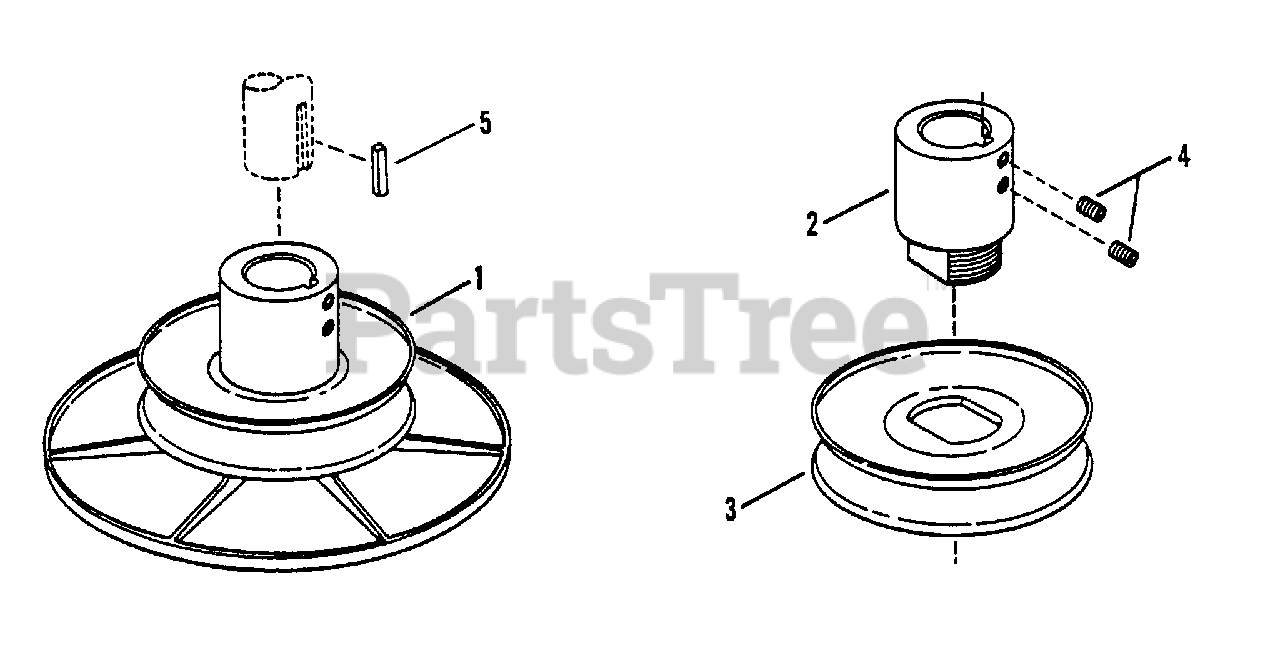

Drive Disc Assembly Parts Diagram

  • Title
1

Snapper 7074187

ASSEMBLY, 5.18" O.D. Drive Disc (33" Models)
(Superseded to 7074187YP)

Note: Was 53708 that included items 2 Thru 4

$155.99

$

In Stock, only 3 left!

0

1

Snapper 7072658

ASSEMBLY, 6" O.D. Drive Disc (25" & 28" Models)
(Superseded to 7072658YP)

Note: Was 53709 that included items 2 Thru 4

$125.99

$

In Stock, only 2 left!

0

$

$

Not available

3

Snapper 7028779

PULLEY, Drive (6.0" O.D.) (25" & 28" Models)
(Superseded to 7028779YP)

$65.99

$

In Stock, only 3 left!

0

Snapper 7028796

PULLEY, Drive (5.18" O.D.) (33" Models)
(Superseded to 7028796BMYP)

$

$

Not available

4

Snapper 7090132

SET SCREW, 3/8-16 x 3/8"
(Superseded to 7090132YP)

$3.49

$

In Stock, only 2 left!

0

5

Snapper 7010210

KEY, 1/4" Square x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0
