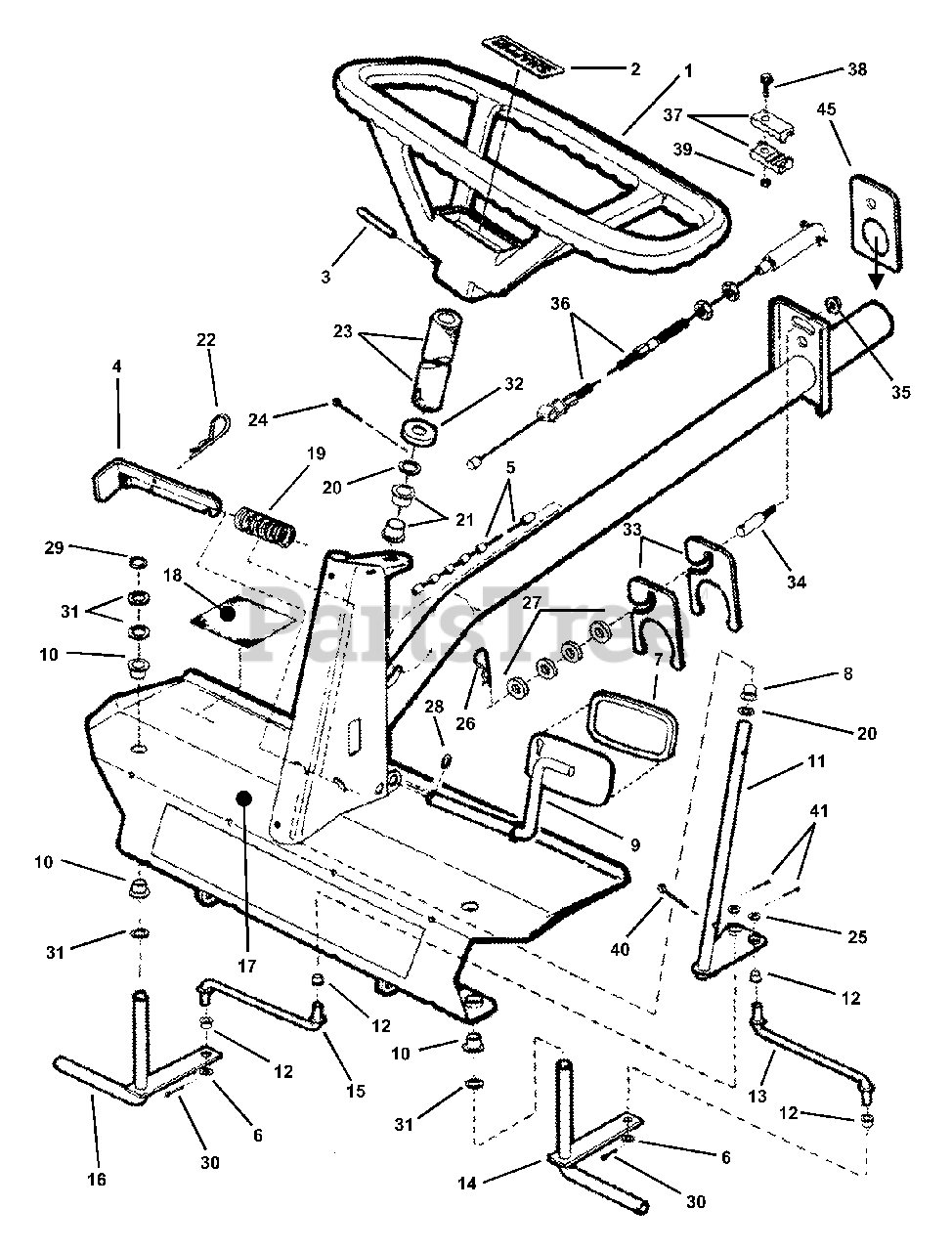

E 281222BE (84710) - Snapper 28" Rear-Engine Riding Mower, 12hp Front End, Steering (Part 1) Parts Diagram

28" Rear-Engine Riding Mower, 12hp

Front End, Steering (Part 1) Parts Diagram

  • Title

1

Snapper 7058030

STEERING WHEEL
(Superseded to 7058030YP)

Note: (For 5/8" shaft); (includes item 2)

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7023781

LOGO, Steering Wheel
(Superseded to 7023781YP)

$15.99

$

In Stock, only 1 left!

0

3

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 15

0

4

Snapper 7038243

LATCH, Parking Brake
(Superseded to 7038243DYP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 7022449

CABLE, Clutch/Brake (54.32")
(Superseded to 7022449YP)

Note: (For 28" & 30" Decks)

$23.99

$

In Stock, Qty 20+

0

Snapper 7074131

CABLE, Clutch (55" long)
(Superseded to 7074131YP)

Note: (For 33" & 42" Decks)

$24.99

$

In Stock, only 1 left!

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7011815

PAD, Clutch/Brake Pedal
(Superseded to 7011815YP)

$11.99

$

In Stock, only 3 left!

0

8

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7047888

PEDAL, Clutch/Brake (weldment)
(Superseded to 7047888YP)

$39.99

$

Usually ships in 2-12 days

0

10

Snapper 7010986

BEARING, Nylon
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7046232

SHAFT, Steering (weldment)
(Superseded to 7046232YP)

$

$

Not available

12

Snapper 7013321

BUSHING, Tie-Rod
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7013023

TIE-ROD, Left Hand (7.41" long)
(Superseded to 7013023YP)

$13.99

$

In Stock, only 1 left!

0

Snapper 7012541

TIE-ROD, Left Hand (9.91" long)
(Superseded to 7012541BMYP)

$14.99

$

In Stock, only 1 left!

0

14

Snapper 7041687

KING-PIN Weldment, Left Hand
(Superseded to 7041687BMYP)

$58.99

$

In Stock, only 1 left!

0

15

Snapper 7012933

TIE-ROD, R. H. (7.41" long)
(Superseded to 7012933YP)

$18.99

$

Usually ships in 2-12 days

0

Snapper 7012540

TIE-ROD, R. H. (9.91" long)
(Superseded to 7012540YP)

$14.99

$

In Stock, only 1 left!

0

16

Snapper 7041688

KING-PIN, Weldment Right Hand
(Superseded to 7041688YP)

$59.99

$

In Stock, only 1 left!

0

17

Snapper 7058040

WELDMENT, Front Axle, Narrow (28" & 30" Deck)

$

$

Not available

Snapper 7059197

WELDMENT, Front Axle, Wide (33" Deck)
(Superseded to 7059197YP)

$444.99

$

Usually ships in 2-12 days

0

18

Snapper 7014049

FOOT PAD, Short
(Superseded to 7105147YP)

$6.99

$

In Stock, Qty 6

0

Snapper 7014048

FOOT PAD, Long
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0

19

Snapper 7015444

SPRING, Parking Brake
(Superseded to 7015444YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7090183

WASHER, 21/32 Dia.
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7046158

BUSHING, Nylon
(Superseded to 7046158YP)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7011714

PIN, Hair
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7023667

FOAM COVER, Steering Shaft
(Superseded to 7023667YP)

$8.49

$

In Stock, only 3 left!

0

24

Snapper 7090296

PIN, 3/16 x 1" Cotter
(Superseded to 7090296YP)

$4.49

$

In Stock, Qty 8

0

25

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7012867

PIN, 1/8" Hair
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper 7022881

SPACER, 1/2"
(Superseded to 7022881YP)

$4.99

$

In Stock, Qty 7

0

28

Snapper 7010776

RING, 1/2" External Retaining (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

29

Snapper 7010746

RING, 3/4" Ext. Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

31

Snapper 7010935

WASHER, 5/8 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7023671

COVER, Steering Shaft
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 5

0

33

Snapper 7028395

SPACER, Pivot
(Superseded to 7028395YP)

$6.99

$

In Stock, Qty 20+

0

34

Snapper 7028332

STUD, Shoulder (3/8-24 Thread)
(Superseded to 7028332YP)

$14.99

$

Usually ships in 2-12 days

0

35

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

36

Snapper 7072648

CABLE, Brake (29" long)
(Superseded to 7101192YP)

$27.99

$

In Stock, Qty 20+

0

37

Snapper 7034174

CONNECTOR, Cable
(Superseded to 7034174YP)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7091495

SCREW, 1/4-20 x 3/4", Gr. 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

39

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

40

Snapper 7091515

PIN, 3/16" x 1-1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

41

Snapper 7091516

PIN, 5/32" x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

45

Snapper 7074599

PLATE, Thrust

$

$

Not available
