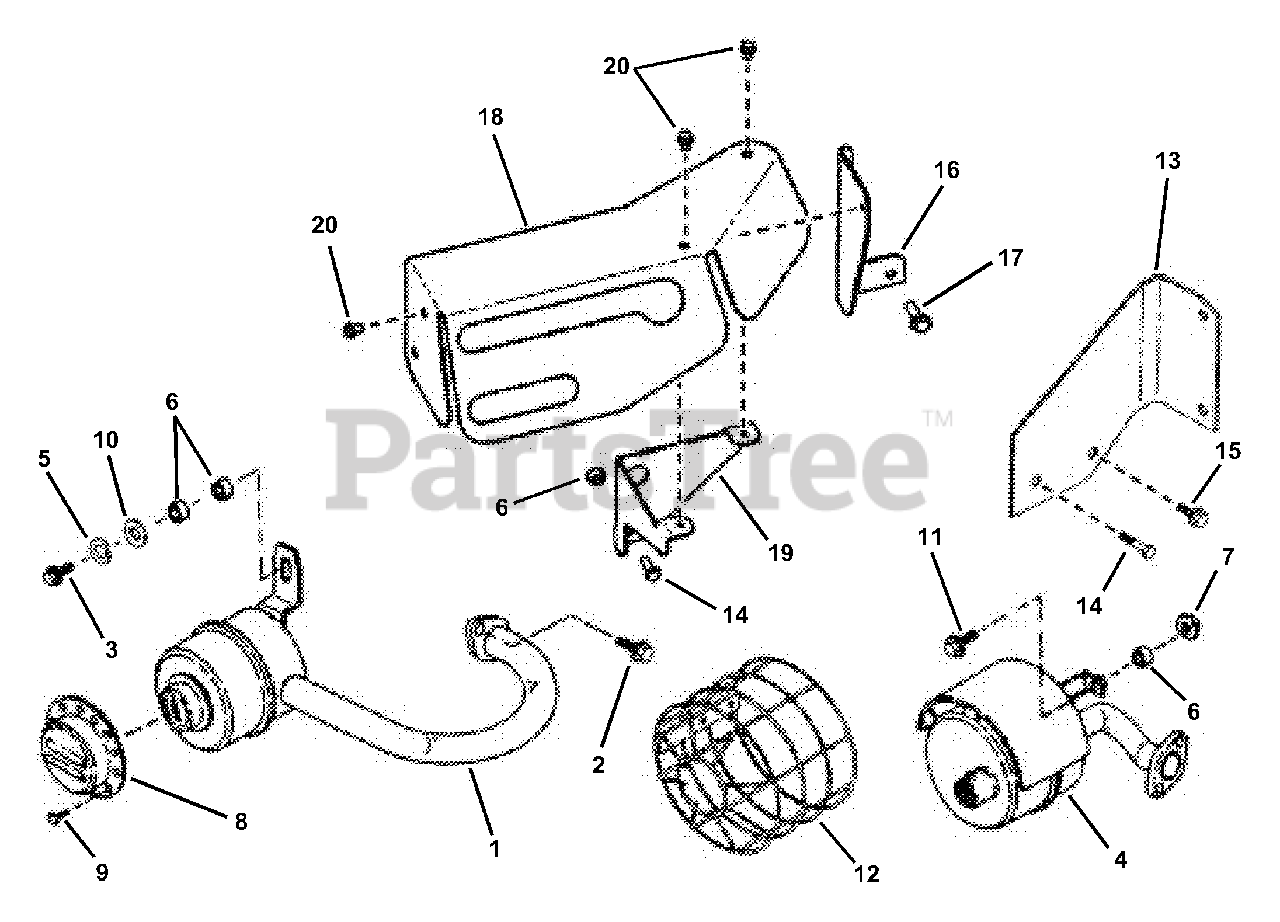

E 281222BE (84710) - Snapper 28" Rear-Engine Riding Mower, 12hp Engines & Exhaust Muffler Parts Diagram

28" Rear-Engine Riding Mower, 12hp

Engines & Exhaust Muffler Parts Diagram

  • Title
1

Snapper 7051996

MUFFLER (B&S 9-13 HP)
(Superseded to 7051996YP)

Note: (Includes items 8 & 9)

$84.99

$

In Stock, only 2 left!

0

2

Snapper 7091318

SCREW, 5/16-18 x 3/4"
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 8

0

3

Snapper 7091814

SCREW, 1/4-20x1-1/4" Hex
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7019358

MUFFLER (Kohler 14/15 HP)
(Superseded to 7019358YP)

$109.99

$

In Stock, only 1 left!

0

5

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

6

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

8

Snapper 7019257

DEFLECTOR, Heat

$

$

Not available

9

Snapper 7023023

SCREW #8-18 x 3/8" Type AB
(Superseded to 7023023YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

12

Snapper 7024356

GUARD, Muffler (Kohler)
(Superseded to 7024356YP)

$91.99

$

Usually ships in 2-12 days

0

13

Snapper 7033564

BRACKET, Muffler Guard (Kohler)

$

$

Not available

14

Snapper 7027230

SCREW, 1/4-20 x 1" Hex
(Superseded to 703820)

Note: Was 91059

$3.99

$

In Stock, only 4 left!

0

15

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Head Self-Tap
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

16

Snapper 7058580

BRACKET, Heat Shield

$14.99

$

In Stock, only 1 left!

0

17

Snapper 7090369

SCREW, 5/16-18 x 1"
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7058578

HEAT SHIELD

$

$

Currently unavailable

19

Snapper 7058579

BRACKET, Heat Shield, Front
(Superseded to 7058579YP)

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 7091084

SCREW, 1/4-20 x 3/8"
(Superseded to 703583)

Note: Was 91293

$4.99

$

In Stock, Qty 20+

0
