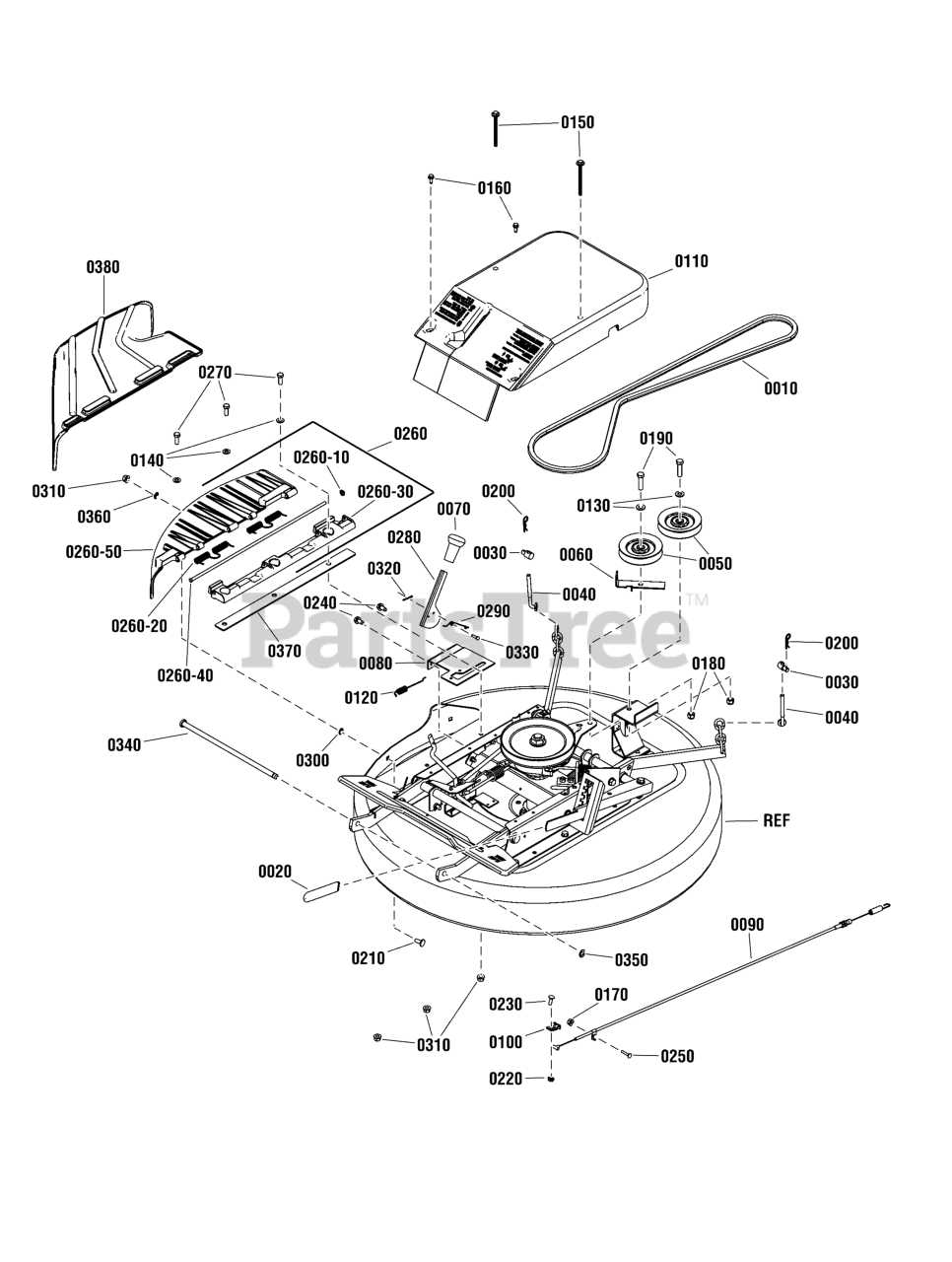

E 2811525BVE (2691382-01) - Snapper 28" Rear-Engine Riding Mower, 11.5hp 28" & 33" Mower Deck Final Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

28" & 33" Mower Deck Final Parts Diagram

  • Title

0010

Snapper 7022252YP

BELT, Spindle Drive (72.75" AA Section, Kevlar)

Note: (28" Models)

$25.99

$

Usually ships in 2-12 days

0

0010

Snapper 7043844YP

BELT, 73.75 AA

Note: (33" Models)

$34.99

$

In Stock, Qty 20+

0

0020

Snapper 7105356YP

GRIP, DECK LIFT

$5.49

$

Usually ships in 2-12 days

0

0030

Snapper 7028200SM

SWIVEL, Adjustable

$13.99

$

In Stock, only 3 left!

0

0040

Snapper 703827

ROD, Adjusting

$10.99

$

Usually ships in 2-12 days

0

0050

Snapper 7029624YP

PULLEY, Idler, .375 ID, 4 OD

Note: (One on 28", Two on 33")

$35.99

$

In Stock, Qty 7

0

0060

Snapper 7032111YP

RESTRICTOR, Belt, 2.18" w/Lock Tab

$6.99

$

In Stock, Qty 11

0

0070

Snapper 7046874YP

GRIP, Handle, .510 Square Hole

$9.99

$

In Stock, Qty 9

0

0080

Snapper 7600140YP

ASSEMBLY, Clutch Plate, RLM

$41.99

$

In Stock, only 2 left!

0

0090

Snapper 7073216YP

CABLE ASSEMBLY, No Reverse in Mow

$32.99

$

In Stock, only 3 left!

0

0100

Snapper 7073217YP

CLIP, Cable, RER

$5.99

$

In Stock, Qty 8

0

0110

Snapper 1760729YP

COVER, Spindle, RER

$125.99

$

In Stock, only 2 left!

0

0120

Snapper 7074649YP

SPRING, Latch, .072 DIA., 3.6" Long

$8.49

$

In Stock, only 1 left!

0

0130

Snapper 703590

WASHER, .406

Note: (One on 28", Two on 33")

$3.99

$

In Stock, Qty 12

0

0140

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 7091015

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer
(Superseded to 7091015YP)

$

$

Not available

0160

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0170

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 4 left!

0

0180

Snapper 703117

NUT, Hex, Nylock, 3/8-16, GR5

Note: (One on 28", Two on 33")

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

Note: (One on 28", Two on 33")

$4.99

$

In Stock, only 1 left!

0

0200

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0220

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 9

0

0230

Snapper 703575

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0240

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0250

Snapper 7092051YP

BOLT, #10-24 X 1, Flat Head Carriage, BZ

$5.49

$

Usually ships in 2-12 days

0

0260

Snapper 7105691YP

ASSEMBLY, Mulching Cover, RER, 28"

Note: (Used on 28" only)

$78.99

$

In Stock, only 2 left!

0

0260

Snapper 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

Note: (Used on 33" only)

$91.99

$

Usually ships in 2-12 days

0

0260-10

Snapper 704005

NUT, 1/4", Push, Zinc/Clear (Not Shown)

$4.49

$

In Stock, Qty 20+

0

0260-20

Snapper 7103309YP

SPRING, Torsion, Rear Door (Not Shown)

$5.49

$

In Stock, only 1 left!

0

0260-30

Snapper 7105346YP

HINGE, Chute, RER, 28"/33" (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0260-40

Snapper 7105689YP

ROD, Chute .25 OD, 17.62" Long (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

0260-50

Snapper 7105691YP

ASSEMBLY, Mulching Cover, RER, 28"

Note: (Used on 28" only)

$78.99

$

In Stock, only 2 left!

0

0260-50

Snapper 7105870YP

COVER, Mulching, RER, 33" (Not Shown)

Note: (Used on 33" only)

$56.99

$

Usually ships in 2-12 days

0

0270

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 14

0

0280

Snapper 7046567BMYP

HANDLE, Blade Engagement (Flip)

$13.99

$

In Stock, only 1 left!

0

0290

Snapper 7046648YP

SPRING, Torsion, Flip Handle

$5.49

$

In Stock, Qty 5

0

0300

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0310

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0330

Snapper 703313

PIN, Clevis

$4.99

$

In Stock, Qty 6

0

0340

Snapper 7022717YP

ROD, Deck Support (Front Lift Arm to Front End)

$48.99

$

Usually ships in 2-12 days

0

0350

Snapper 7017847YP

RING, .438 External Retaining

$4.49

$

Usually ships in 2-12 days

0

0360

Snapper 703937

NUT, Ny Lock, #10-32

$3.49

$

Usually ships in 2-12 days

0

0370

Snapper 7301363BMYP

PLATE, 33" Deck Hinge Support

Note: (Used on 33" only)

$18.99

$

Usually ships in 2-12 days

0

0380

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0
