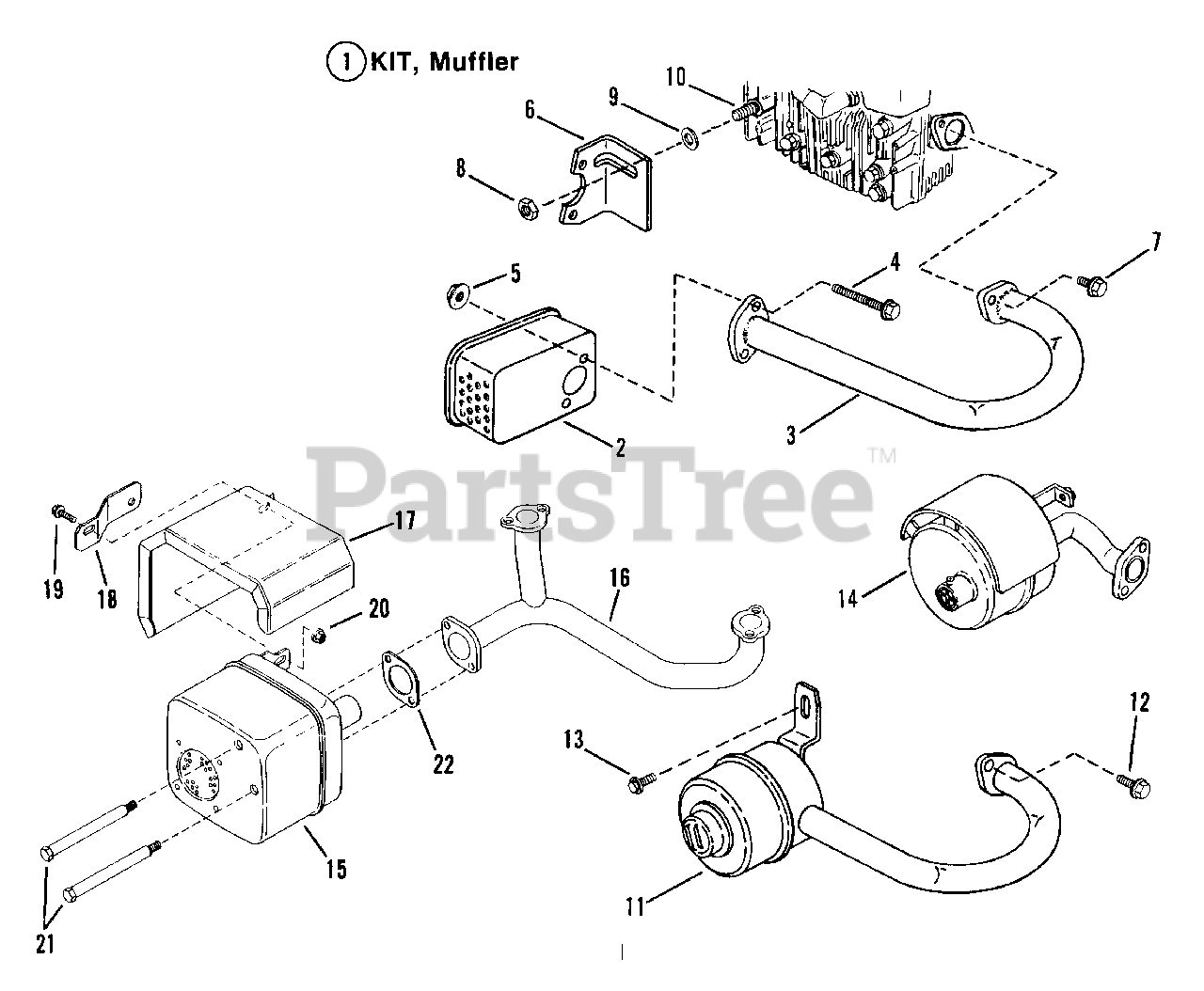

E 281011BE (80308) - Snapper 28" Rear-Engine Riding Mower, 10hp Exhaust Muffler & Engines Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Exhaust Muffler & Engines Parts Diagram

  • Title

1

Snapper 7060316

KIT, Muffler

Note: (Includes items 2 thru 10); (For 8 HP Models)

$182.99

$

In Stock, only 1 left!

0

2

Snapper 7018198

MUFFLER
(Superseded to 7018198YP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 7018197

TUBE, Exhaust
(Superseded to 7018197YP)

$137.99

$

In Stock, only 1 left!

0

Snapper 7060489

BAG Hardware

Note: (Includes items 4 thru 10)

$

$

Not available

4

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7032414

BRACKET, Muffler
(Superseded to 7032414YP)

$25.99

$

In Stock, only 2 left!

0

7

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

8

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7012418

WASHER, 21/64 Flat

$

$

Not available

10

Snapper 7012419

STUD, Cylinder Head
(Superseded to 7012419YP)

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 7051996

MUFFLER
(Superseded to 7051996YP)

Note: (10, 11.5, 12.5 HP Briggs)

$84.99

$

In Stock, only 2 left!

0

12

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

13

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

14

Snapper 7019358

MUFFLER
(Superseded to 7019358YP)

$109.99

$

In Stock, only 1 left!

0

15

Snapper 7024241

MUFFLER

Note: (For 41" Models Only); (14 HP Kohler)

$

$

Not available

16

Snapper 7052779

MANIFOLD, Exhaust

Note: (For 41" Models Only); (16 HP Briggs)

$

$

Not available

17

Snapper 7033594

SHIELD, Muffler
(Superseded to 7033594YP)

Note: (For 41" Models Only)

$70.99

$

Usually ships in 2-12 days

0

18

Snapper 7033589

BRACE, Muffler
(Superseded to 7033589YP)

Note: (For 41" Models Only)

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 7090596

BOLT, 1/4-20 x 5/8" Hex Flange Lock

Note: (For 41" Models Only)

$

$

Not available

20

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583 (For 41" Models Only)

$4.49

$

In Stock, Qty 6

0

21

Snapper 7024161

BOLT, 5/16-18 (1/2") x 4" Shoulder
(Superseded to 691416)

Note: (For 41" Models Only)

$11.99

$

In Stock, Qty 14

0

22

Snapper 7014509

GASKET, Exhaust
(Superseded to 7014509YP)

Note: (For 41" Models Only)

$7.49

$

Usually ships in 2-12 days

0
