E 280915BE (80855) - Snapper 28" Rear-Engine Riding Mower, 9hp Electrical Systems (For 10 & 13 HP) Parts Diagram

28" Rear-Engine Riding Mower, 9hp

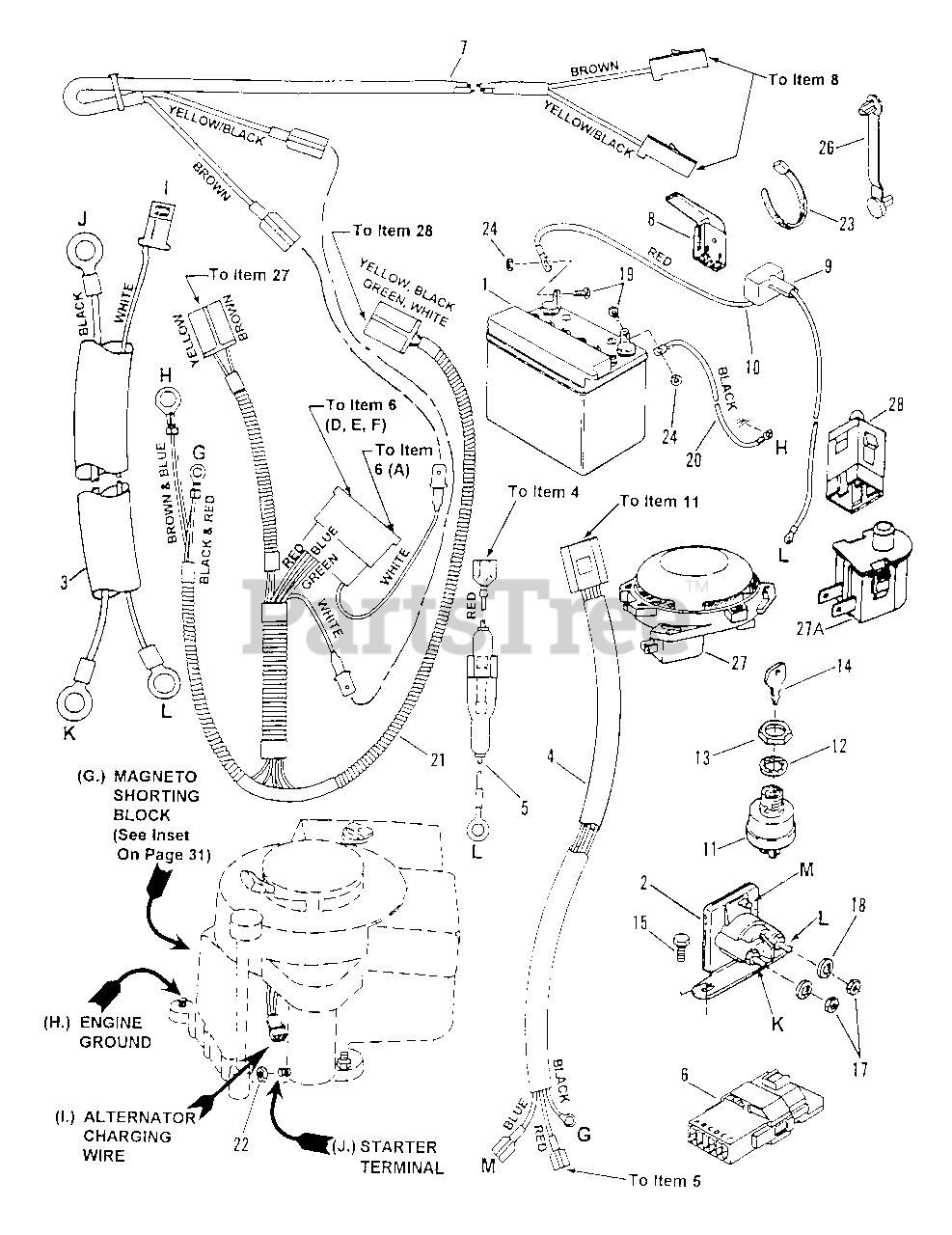

Electrical Systems (For 10 & 13 HP) Parts Diagram

  • Title

1

Snapper 7060753

KIT, 12Volt Dry Charge Battery
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: Was 18817

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7022788

HARNESS, Starter Wiring (Briggs Engines)
(Superseded to 7022788YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7019297

HARNESS, Ignition Wiring (Briggs Engines)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7016168

HOLDER, Fuse
(Superseded to 7016168YP)

Note: (Includes Fuse)

$23.99

$

In Stock, only 3 left!

0

Snapper 7016169

FUSE (10 AMP)
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7063064

INTERLOCK Module (Briggs)
(Superseded to 7063064YP)

Note: Was 28606

$

$

Not available

7

Snapper 7028386

HARNESS (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 2 left!

0

8

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

9

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 10

0

10

Snapper 7019326

CABLE, Positive (Red)
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

11

Snapper 7018816

SWITCH, Ignition
(Superseded to 7018816YP)

Note: Was 22880 (Used With Electric Start)

$42.99

$

In Stock, Qty 5

0

12

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7011138

KEY, Switch
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 1 left!

0

17

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

19

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 10

0

20

Snapper 7028027

CABLE, Negative
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 6

0

21

Snapper 7028607

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028607YP)

$51.99

$

Usually ships in 2-12 days

0

22

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7012080

TIE, 7" Long Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

26

Snapper 7014451

TIE, 2" Long Cable
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7029211

SWITCH, Seat (8 HP & 10 HP Engines)
(Superseded to 1714771SM)

$20.99

$

Usually ships in 2-12 days

0

27A

Snapper 7023354

SWITCH, Seat (13 HP Engines)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

28

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0
