E 2512523BVE (7800653) - Snapper 25" Rear-Engine Riding Mower, 12.5hp Deck Rails & Lift Group Parts Diagram

25" Rear-Engine Riding Mower, 12.5hp

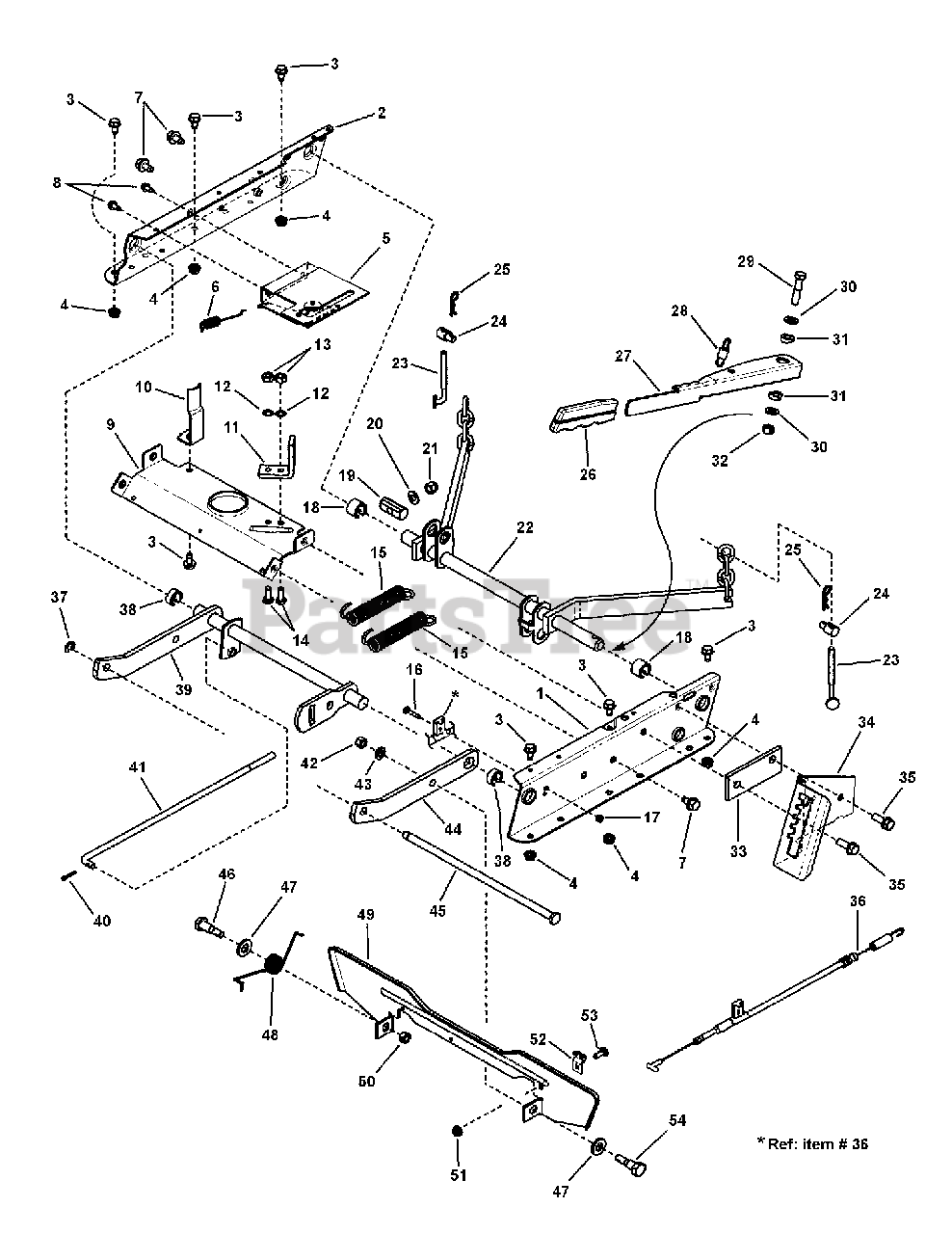

Deck Rails & Lift Group Parts Diagram

  • Title

1

Snapper 7073269

RAIL, Deck Lift, Left Hand
(Superseded to 7073269YP)

$27.99

$

Usually ships in 2-12 days

0

2

Snapper 7036430

RAIL, Deck Lift, Right Hand
(Superseded to 7036430YP)

$54.99

$

In Stock, only 1 left!

0

3

Snapper 7090361

SCREW, 5/16-18 x 5/8 Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

4

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

$41.99

$

In Stock, only 2 left!

0

6

Snapper 7074649

SPRING, Latching
(Superseded to 7074649YP)

$8.49

$

In Stock, only 1 left!

0

7

Snapper 7091198

SCREW, 3/8-16 x 5/8 Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7091867

SCREW, 5/16-18 x 1/2 Hex Washer Self-Tap
(Superseded to 7091867YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7031838

BRACE, Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

10

Snapper 7031855

GUIDE, Belt
(Superseded to 7031855YP)

$7.49

$

In Stock, only 1 left!

0

11

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

13

Snapper 703331

NUT, 5/16-24, GR5, Serated Flange, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090233

SCREW, 5/16-24 x 3/4 Hex Head Cap, GR 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

15

Snapper 7046163

SPRING, Assist
(Superseded to 7046163YP)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 7092051

BOLT, #10-24 x 1 Flat Head Square Neck
(Superseded to 7092051YP)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 703412

NUT, #10-24, Hex Nylock, GRB, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7012068

RING, Rear Lift Arm (Blue)
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

19

Snapper 7034213

PIVOT, Leveling
(Superseded to 7034213YP)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7090122

WASHER, 3/8 Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

22

Snapper 7058042

WELDMENT, Rear Lift Arm
(Superseded to 7058042YP)

Note: (used on 25 decks)

$131.99

$

Usually ships in 2-12 days

0

22

Snapper 7059324

WELDMENT, Rear Lift Arm
(Superseded to 7059324YP)

Note: (used on 28 decks)

$164.99

$

Usually ships in 2-12 days

0

23

Snapper 7028728

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

24

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

25

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7105356

GRIP, Height Adjustment Lever
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7046155

LEVER, Height of Cut
(Superseded to 7046155YP)

$35.99

$

In Stock, only 1 left!

0

28

Snapper 7046159

SPRING, Lever
(Superseded to 7046159YP)

$6.99

$

Usually ships in 2-12 days

0

29

Snapper 7090483

SCREW, 3/8-24 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7032030

WASHER, 13/32 x 1-1/4 Flat
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7071920

SPACER, Deck Lift
(Superseded to 7071920YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

33

Snapper 7046217

SPACER, Detent
(Superseded to 7046217YP)

$11.99

$

Usually ships in 2-12 days

0

34

Snapper 7046157

DETENT, Height Adjust
(Superseded to 7046157YP)

$59.99

$

Usually ships in 2-12 days

0

35

Snapper 7090324

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7073216

CABLE ASSEMBLY, No Reverse in Mow
(Superseded to 7073216YP)

$32.99

$

In Stock, only 3 left!

0

37

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7012067

RING, Front Lift Arm (Red)
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

39

Snapper 7058041

WELDMENT, Front Lift Arm
(Superseded to 7058041YP)

$54.99

$

In Stock, only 1 left!

0

40

Snapper 7091598

PIN, 1/8 x 3/4 Cotter
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

41

Snapper 7016122

ROD, Leveling (3/4-24 thread)
(Superseded to 7016122YP)

$10.99

$

Usually ships in 2-12 days

0

42

Snapper 7091630

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

43

Snapper 7032030

WASHER, Flat 13/32 ID x 1.25 x 1/8 Thick ZP
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0

44

Snapper 7032997

ARM, Front Lift
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

45

Snapper 7022717

ROD, Deck Support (Front Lift Arm to Front End)
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

46

Snapper 7015446

SHOULDER BOLT, 3/8-24 x 9/16"
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

47

Snapper 704123

WASHER, 1/2 Flat SAE, GRB, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

49

Snapper 7073267

FOOT PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$45.99

$

Usually ships in 2-12 days

0

50

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

51

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5

$4.49

$

In Stock, Qty 5

0

52

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, Qty 8

0

53

Snapper 703575

BOLT, 1/4-20 x 3/4 Square Neck Carriage, GR 5

$3.99

$

In Stock, only 2 left!

0

54

Snapper 7015495

SHOULDER BOLT, 3/8-24 w/Nylon Patch, GR 5
(Superseded to 7015495YP)

$

$

Not available
